56 MS 311, MS 391

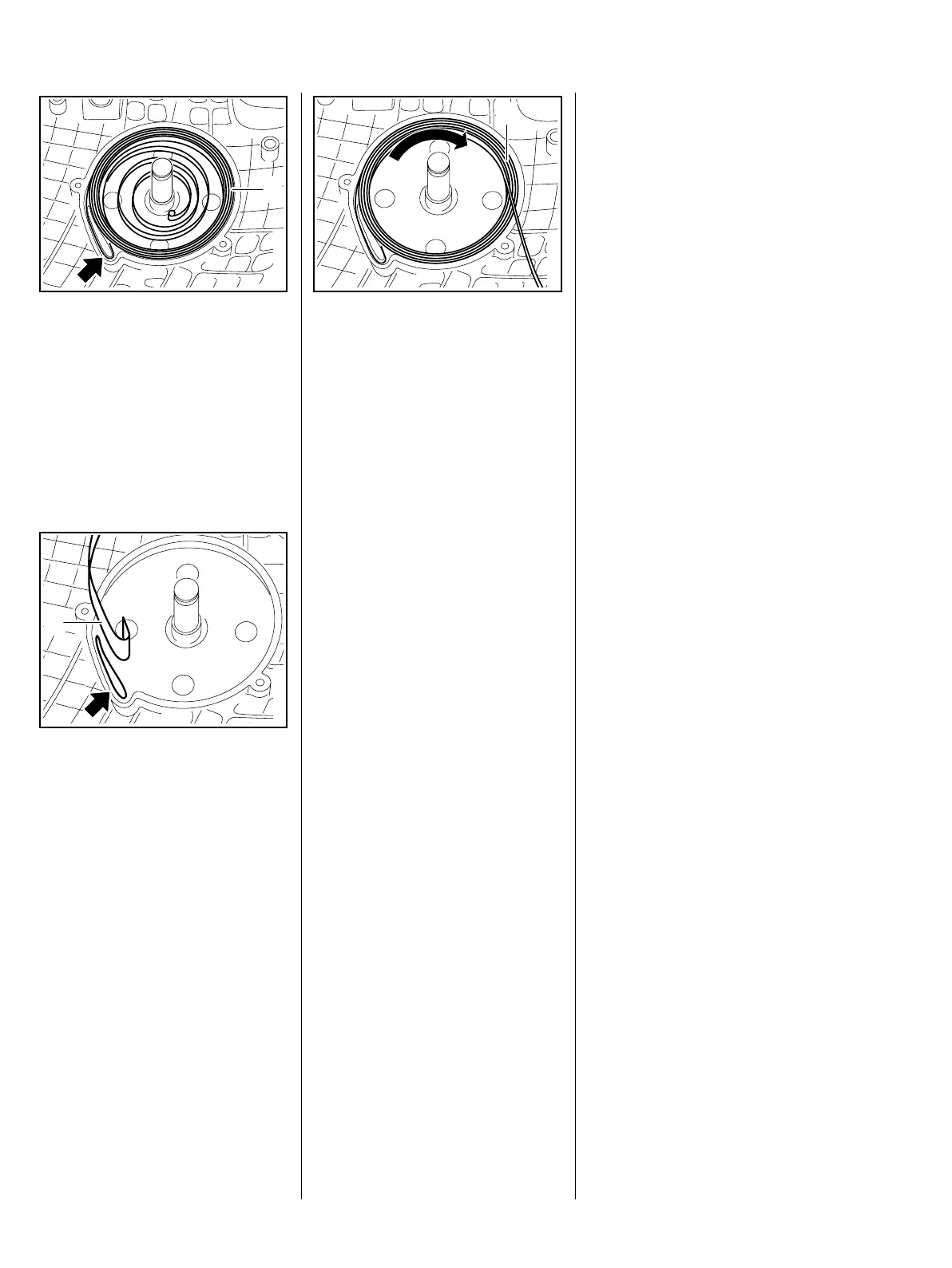

Make sure that the new rewind
spring (1) is properly seated and the
outer anchor loop is engaged on the
lug (arrow). If necessary, use
suitable tools to push the rewind
spring fully into its seat in the fan
housing.
If the rewind spring has popped out,
refit it in the fan housing as follows:
– Arrange the spring (1) in its
original position.
: Fit the anchor loop in its
seat (arrow) in the fan housing.
4903RA141 TG
1
4903RA142 TG
1
: Fit the rewind spring (1)
clockwise in the housing.
– Hold the spring windings so that
they cannot pop out.
Make sure that the rewind spring (1)
is properly seated. If necessary, use
suitable tools to push the rewind
spring fully into its seat in the fan
housing
– Secure the spring so that it
cannot pop out.
– Install the rope rotor, b 8.4
– Reassemble all other parts in the
reverse sequence.
4903RA143 TG
1
