60 MS 311, MS 391

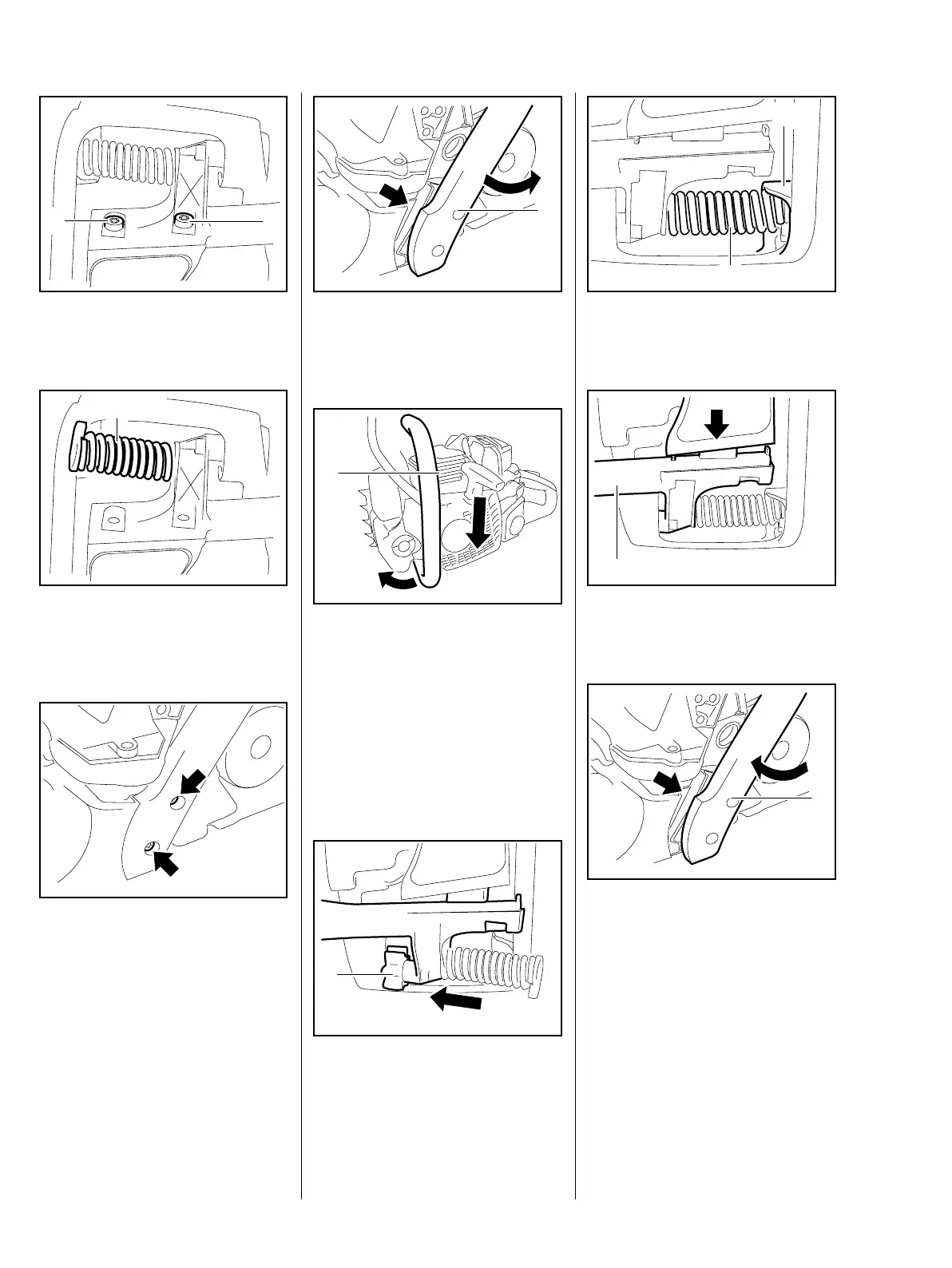

: Remove the screws (1) from the

underside of the machine.

: Ease the tank housing to one

side and pry out the AV

spring (1).

: Take out the screws (arrows).

0001RA228 TG

0001RA229 TG4903RA154 TG

: Ease the handlebar (1) sideways

and take it out of the guide

(arrow).

: Push the handlebar (1) out of the

lower guide.

– Remove the handlebar (1).

– Check the annular buffer and

replace it if necessary, b 9.1

Installing

: Push the handlebar, buffer (1)

first, into the engine housing.

4903RA155 TG

4903RA269 TG

0001RA233 TG

: Push the AV spring (1) into its

seat (2).

: Position the handlebar (1)

against the guide (arrow).

: Ease the handlebar (1) sideways

and place it in the guide (arrow).

– Insert the screws and tighten

them down firmly.

– Reassemble all other parts in the

reverse sequence.

0001RA222 TG

4903RA155 TG
