MS 341, MS 361, MS 361 C
English
67

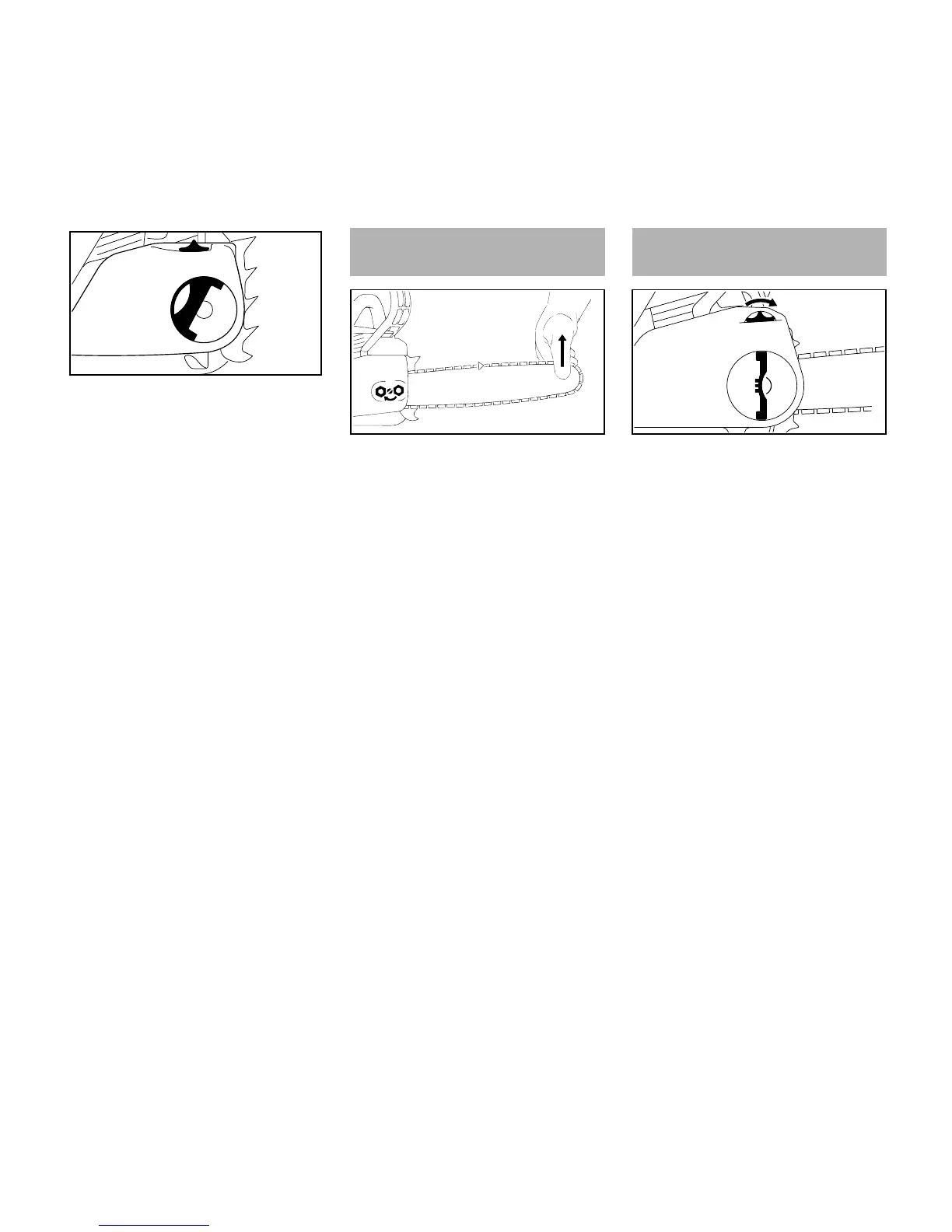

When fitting the chain sprocket cover,
check that the teeth of the tensioning
gear and adjusting wheel mesh properly.
N If necessary, turn the adjusting
wheel (4) slightly until the sprocket
cover can be pushed flush against
the engine housing.
N Pull out the hinged clip (5) so that it
snaps into position.
N Engage wingnut and tighten it down
moderately.
N Go to chapter on "Tensioning the
Saw Chain"
Retensioning during cutting work:
N Shut off the engine.
N Loosen the nuts.
N Hold the bar nose up.
N Use a screwdriver to turn the
tensioning screw (1) clockwise until
the chain fits snugly against the
underside of the bar.
N While still holding the bar nose up,
tighten down the nuts firmly.
N Go to "Checking Chain Tension".
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently
see chapter on "Operating
Instructions".
Retensioning during cutting work:
N Shut off the engine.
N Pull out the hinged clip and loosen
the wingnut.
N Turn the adjusting wheel (1)
clockwise as far as stop.
N Tighten down the wingnut (2) firmly
by hand.
N Fold down the hinged clip.
N Go to "Tensioning the Saw Chain"
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently –
see chapter on "Operating
Instructions".
5
4
172BA015 KN
Tensioning the Saw Chain
(side chain tensioner)
1
133BA024 KN
Tensioning the Saw Chain
(quick chain tensioner)
1
2
001BA112 KN
