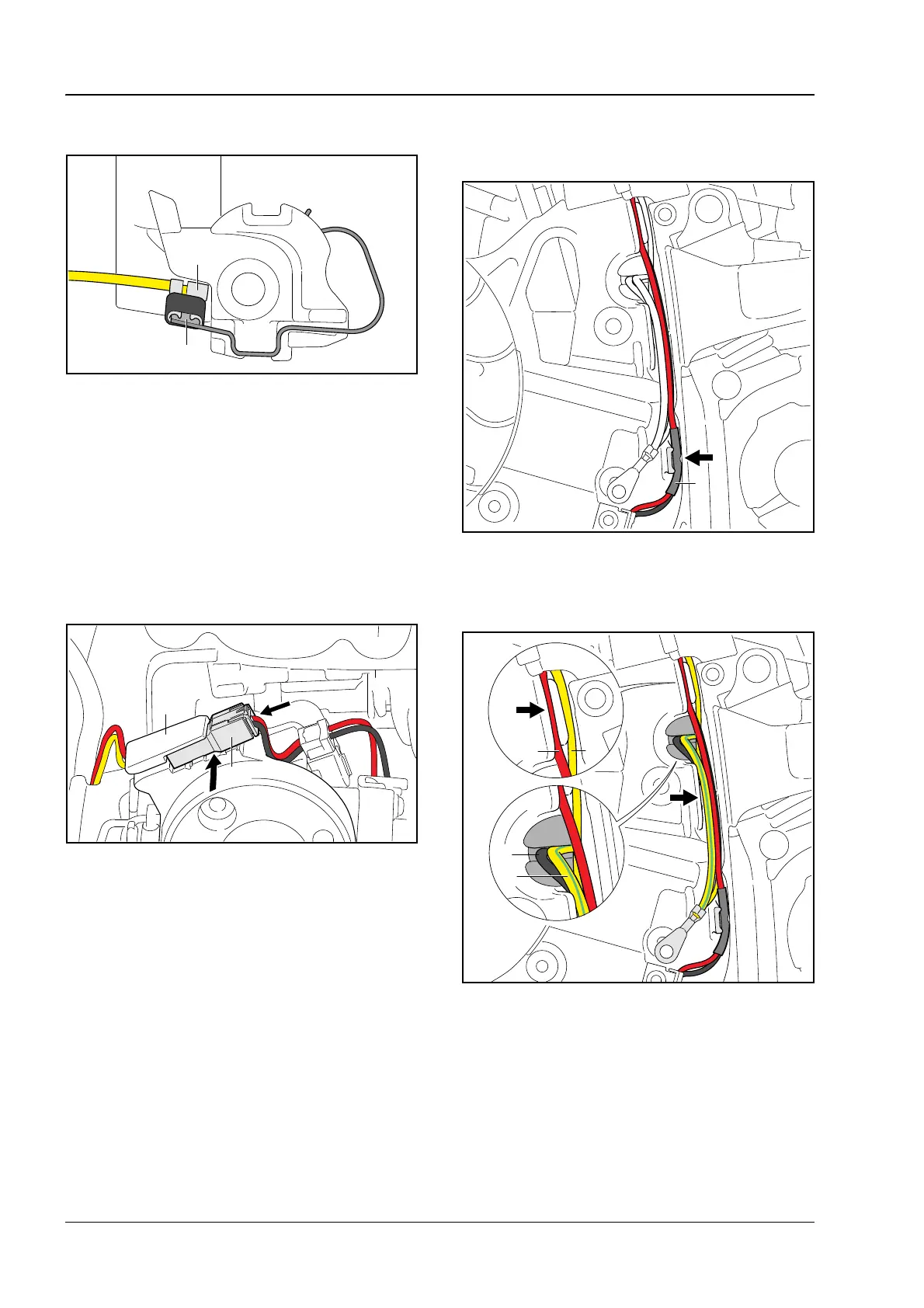

. Fit yellow ground wire connector (3) onto the
contact spring terminal (4) and push them both
onto the filter base.
. Install the carburetor and filter base.
. Position black short circuit wire connector in the
switch shaft's guides and push it onto the boss
– crimped side must face up.
. Fit the baffle.
. Fit the switch shaft on the filter base.
. Fit the choke rod.
. Join the connector (1) and push it into the
connector housing (2).
Installation at fanwheel side
. Position wires with shrink tube so that the lower
end of the shrink tube (5) is aligned with the
lower guides (arrow).
. Push the yellow (6) and red (7) solenoid valve
wires into the guides on the crankcase.
. Push the black short circuit wire (8) and the
green/yellow ground wire (9) into the
guides (arrow).
. Install the control unit – see b 4.2.2
. Assemble all other parts.
