Different quantities of oil are required for
different bar lengths, types of wood and
cutting techniques.
: Use the adjusting screw (1) (on
underside of machine) to vary the
oil feed rate as required.
: E = Ematic position, medium oil flow
rate - turn adjusting screw to "E"
(Ematic position)
: To increase oil feed – turn adjusting
screw clockwise.
: To reduce oil feed – turn adjusting
screw counter-clockwise.
Your chain must always be wetted
with a film of lubricant.
* Special accessory
: Turn the bar over –
every time you sharpen the chain
and every time you replace the
chain – this helps avoid one-sided
wear, especially at the nose and
underside of the bar.
: Regularly clean
the oil inlet hole (1),
the oilway (2) and
the bar groove (3).
: Measure groove depth –
with scale on filing gauge* – in area
used most for cutting.
* see “Guide to Using this Manual”
If groove depth is less than specified:
: Replace the guide bar.
The drive link tangs will otherwise
scrape along the bottom of the groove –
the cutters and tie straps will not ride on
the bar rails.

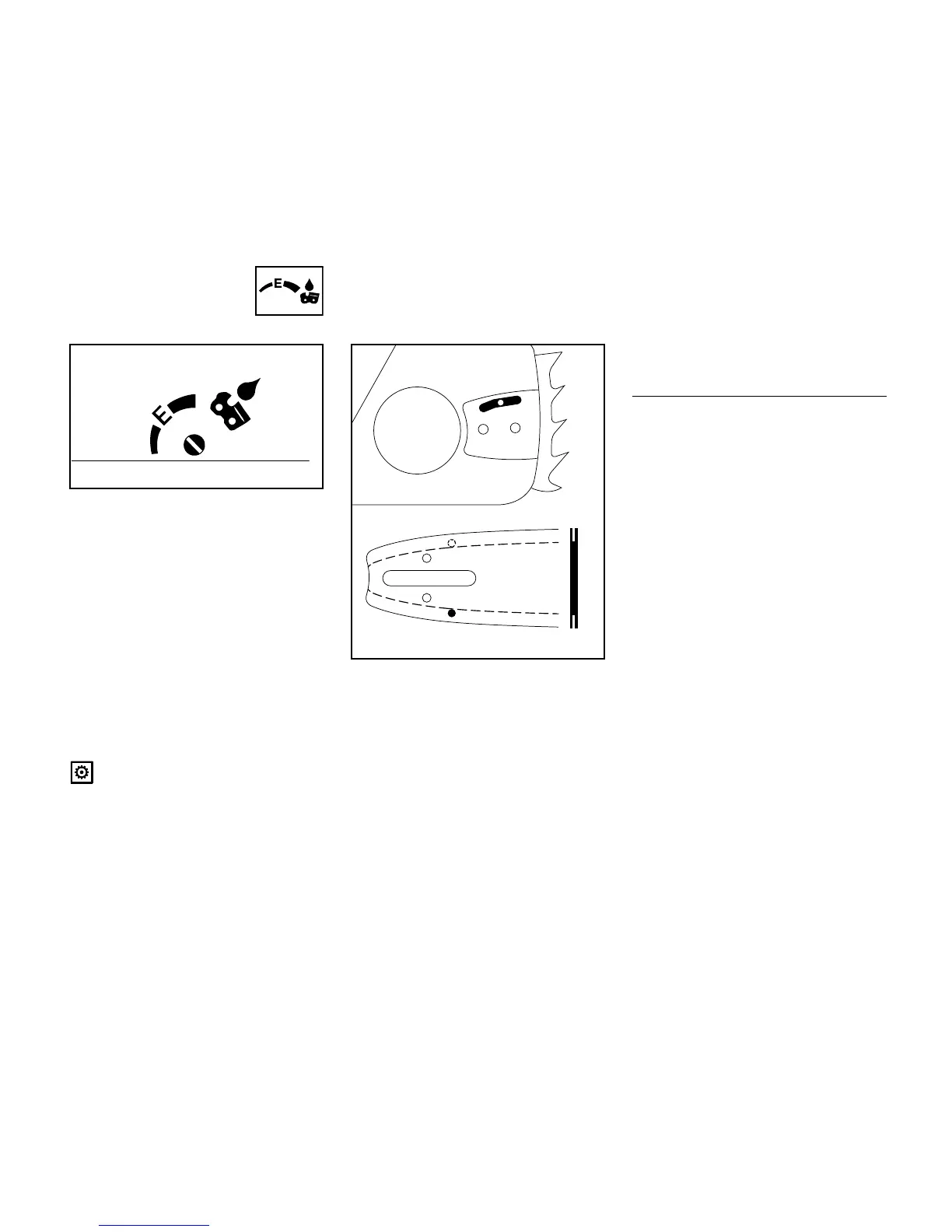

Oil Quantity
Control *
001BA157 KN
1
Taking Care of Guide Bar
2
001BA119 KN
1
3
3
Chain
type
Pitch Minimum
groove
depth
Picco 3/8" P 5.0 mm
Rapid 1/4" 4.0 mm
Rapid 3/8"; 0.325" 6.0 mm
Rapid 0.404" 7.0 mm
To Next Page
