Stihl MSA 120 C User Manual

0458-716-8621-C
56
English 26 Specifications
26.1 STIHL MSA 120 C
Intended for household use.
– Approved battery type: STIHL AK series
– Weight without battery, guide bar and saw chain:
4.6 lbs. (2.1 kg)
– Maximum oil tank volume: 3.7 oz. (0.11 l)
26.2 Chain Sprockets
– 7-tooth for 1/4" PICCO
26.3 Minimum Groove Depth of Guide Bars
The minimum groove depth of a guide bar depends on the
pitch of the guide bar.
– 1/4" PICCO: 0.157 in. (4 mm)
26.4 Sharpening Angle of Saw Chains
– 71 PM3 (Type 3670): 30°
26.5 Depth Gauge Setting
The Depth gauge setting of a saw chain depends on the
pitch of the saw chain.
– 1/4" P: 0.018 in. (0.45 mm)
26.6 STIHL AK Series Battery
Approved charger type: STIHL AL series.
– Battery technology: Lithium-Ion
– Voltage: 36 V
– Capacity in Ah: See rating plate
– Energy content in Wh: See rating plate
– Weight in kg: See rating plate
– Permissible ambient temperature range during use or
storage: 14 °F to 122 °F (- 10 °C to 50 °C)
For a complete list of approximate charging times, see
www.stihl.com/charging-times.
26.7 STIHL AL 101
– Mains voltage: 120 V
– Rated current: 1.3 A
– Frequency: 60 Hz
– Charging current: 1.5 A
– Rated power: 75 W
– Insulation: Class II (Double Insulation)
– Permissible ambient temperature range during charging:
41 °F to 104 °F (5 °C to 40 °C)

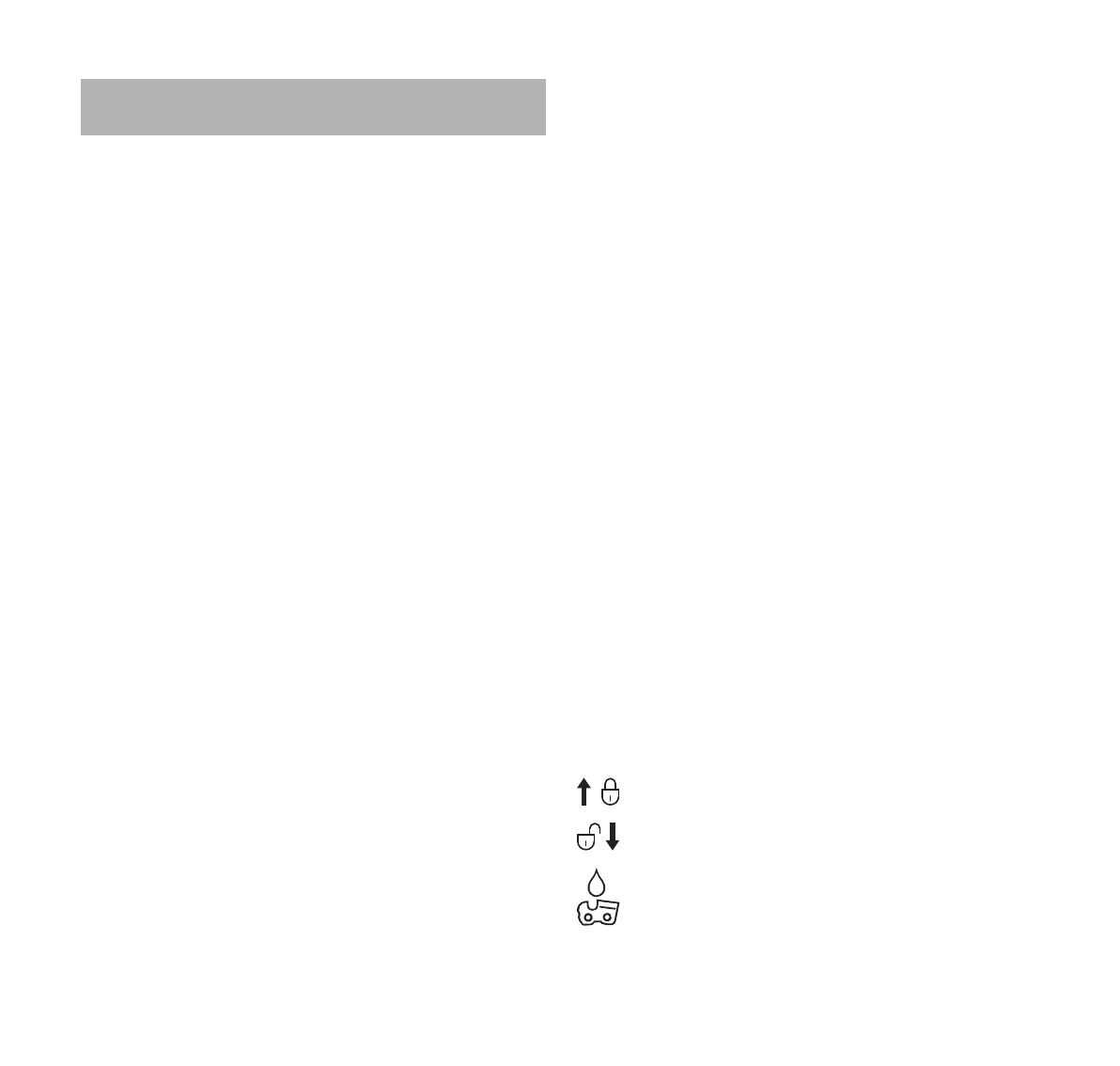

26.8 Symbols on the Chain Saw, Battery and
Charger
26 Specifications
Symbol Explanation
VVolt
Hz Hertz
A Ampere
Ah Ampere hour
WWatt
Wh Watt hour
AC Alternating current
IP20 Degree of electrical protection
Engage the chain brake.
Disengage the chain brake.
Chain oil tank

Stihl MSA 120 C Specifications

General

Power Source	Battery
Sound Power Level	94 dB(A)
Battery Type	Lithium-Ion
Bar Length	12 in.
Weight (without battery)	2.1 kg
Chain Gauge	1.1 mm
STIHL Oilomatic chain type	Picco Micro 3 (PM3)
Chain Pitch	3/8" P
