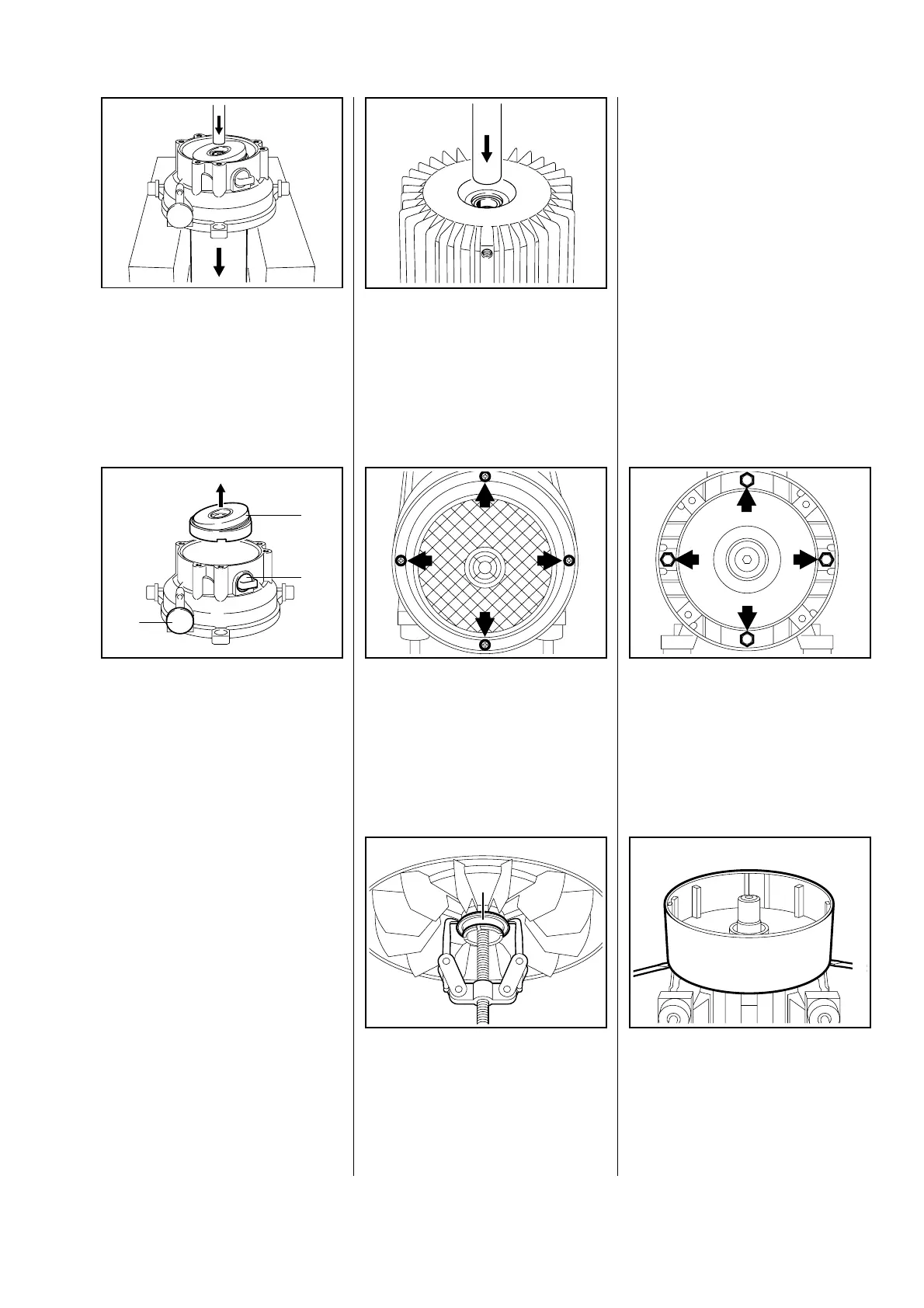

Press rotor out of drive housing
and swashplate with suitable
arbor.
•
Remove swashplate (1) from
drive housing.
Remove shoulder bearing:
•
Remove screw plug (2) and
plug (3).
- Uniformly heat drive housing to
approx. 80 °C on a hotplate or
with a hot-air fan; the shoulder
bearing will then drop out of the
housing.
Important! Wear gloves!
- Press oil seal down and out of
drive housing with a screwdriver.
•
Press ball bearing out of stator
with suitable arbor.
Important! Oil seals, shoulder
bearings and ball bearings which
have been removed must always
be replaced by new parts.
RE 160 K
•
Undo fastening screws for fan
shroud.
- Remove fan shroud.
•
Remove clamping ring (1) with
standard extractor.
- Remove fanwheel, carefully pri-
sing it off with a screwdriver if ne-
cessary.
- Examine fanwheel and replace if
necessary.
•
Undo fastening screws in
bearing cover.
•
Carefully prise bearing cover off
stator with two screwdrivers.
Do not damage stator housing or
bearing cover.
Remove bearing cover.
621RA098 KN
621RA099 KN
1
2
3
621RA100 KN
621RA048 BL
621RA049 BL
1
621RA051 BL
621RA050 BL
RE 140 K, 160 K 19
