Stihl RE 140 K - 9 Electrical System; Circuit Diagram

Important!
The national safety regulations
must be observed without fail!
The power cable must be
unplugged from the socket outlet
at all times while carrying out
repairs.
B4 = Microswitch
C1 = Capacitor
M1 = Motor with overload protection
Q1 = Master switch
W1 = Connecting lead
9. ELECTRICAL SYSTEM
M1
M
1~
W1
Q1
L1 N PE
C1
P
B4
621RA077 BL

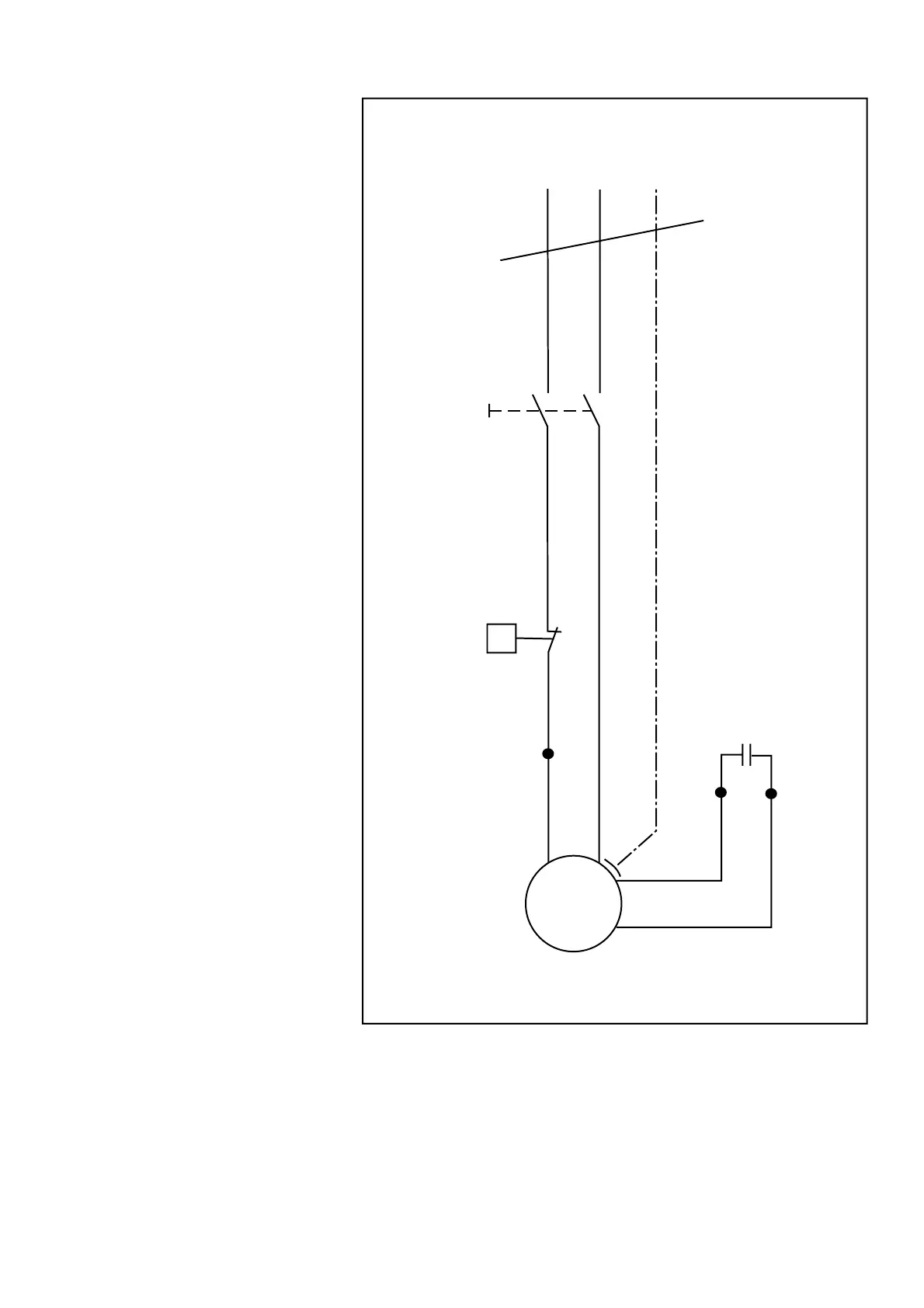

9.1 Circuit diagram
RE 140 K, 160 K 23
