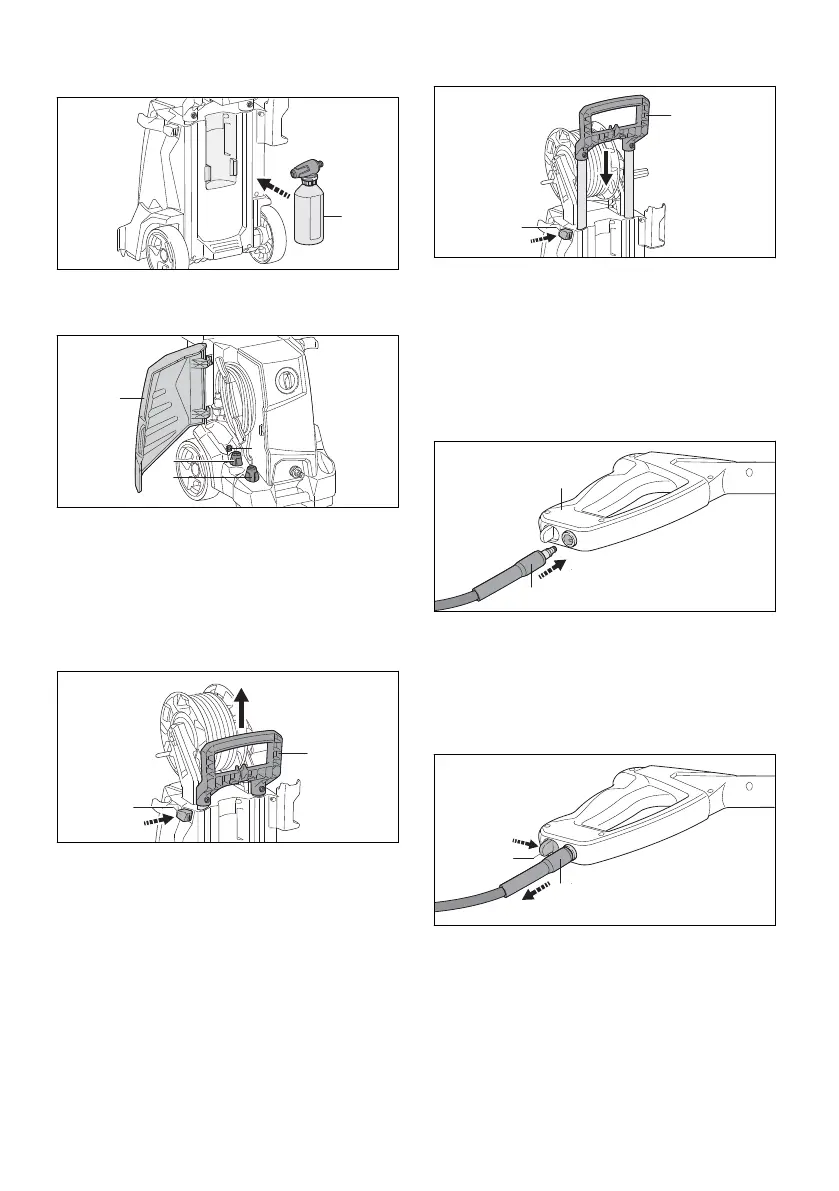

Attaching the spraying set
0000-GXX-5099-A0
3
► Insert spraying set (1).
Inserting the nozzles and cleaning pin
2
0000-GXX-4614-A0
1
4
3
► Open the flap (1).
► Insert fan-jet nozzle (2) and rotary nozzle (3).
► Insert cleaning pin (4).
7.2 Pulling out and pushing in the
handle
7.2.1 Pulling out the handle
2
0000-GXX-4621-A0
1
► Press the safety catch (1) and pull out the
handle (2).
► Release safety catch (1) and pull out han‐
dle (2) until it audibly engages.
7.2.2 Pushing in the handle
0000-GXX-4622-A0
2
1
► Press the safety catch (1) and push in the
handle (2).
► Release safety catch (1) and push in han‐
dle (2) until it audibly engages.
7.3 Attaching and removing the
spray gun
7.3.1 Attaching the spray gun
0000-GXX-5095-A0
1
2
► Push connector (1) into spray gun (2).
The connector (1) audibly engages.
► If the connector cannot be pushed easily into
the spray gun (2): Grease the gasket on the
connector (1) with grease for fittings.
7.3.2 Removing the spray gun
0000-GXX-5096-A0
1
2
► Press and hold the locking lever (1).
► Pull out connector (2).
English 7 Assembling the pressure washer
