Stihl RE 581 - Connecting the Water Supply

RE 521, RE 551 PLUS, RE 581, RE 581 PLUS
English
45
N Unscrew the union nut (2)
N Pull high-pressure hose (1) off of
connector

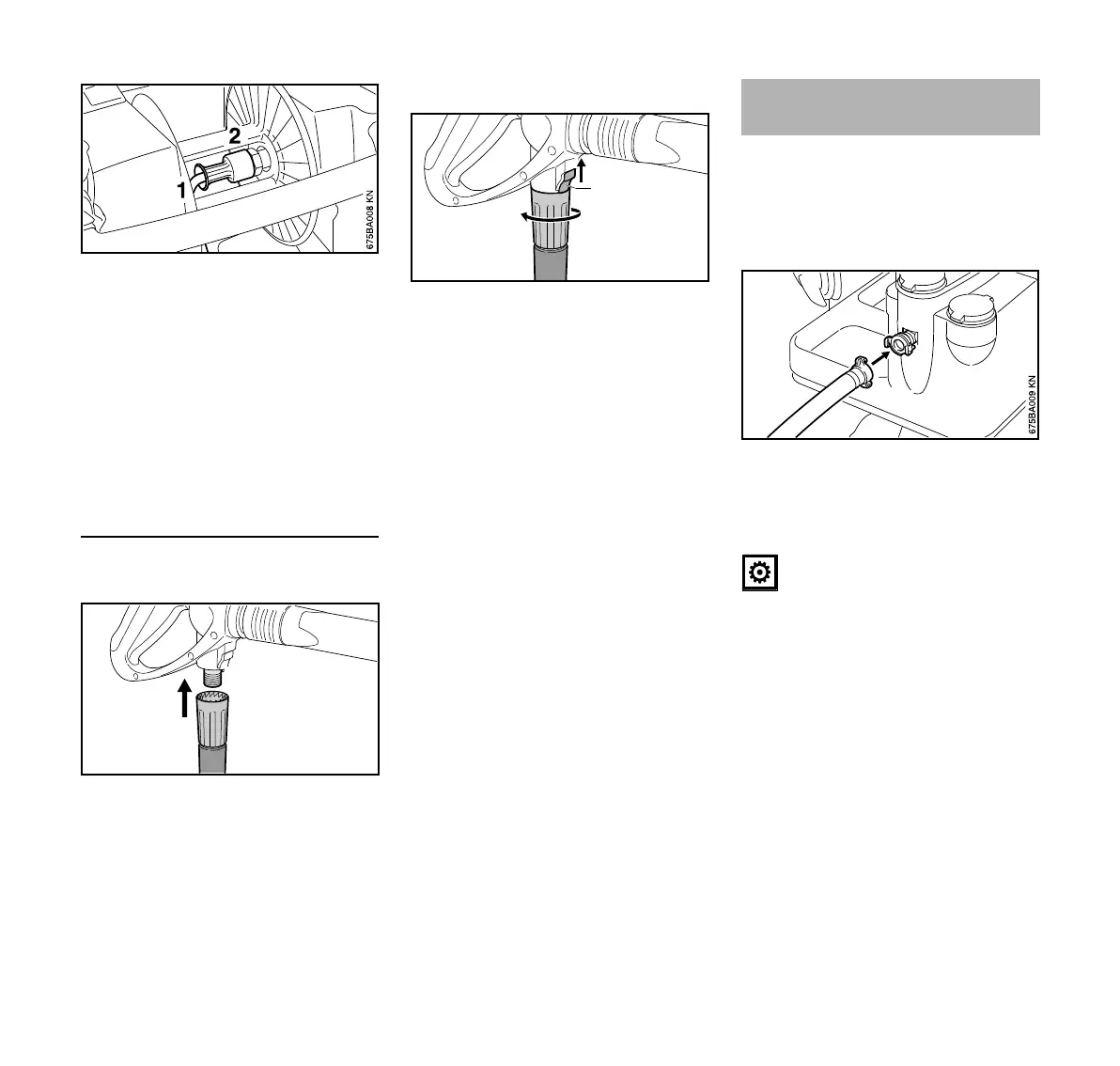

Connecting the high-pressure hose
N Push the high-pressure hose (1)
onto the connector of the hose reel
N Attach union nut (2) and screw it on
and tighten by hand
N Roll up high-pressure hose
High-pressure hose and spray gun
Connection
N Push the high-pressure hose (1)
onto the connector (2)
N Attach union nut (3) and screw it on
and tighten by hand
Disconnection
N Push the coupling (4) in the
direction of the arrow and hold it
N Loosen the union nut (3) and
unscrew it from the connector in the
direction of the arrow
Briefly rinse out the water hose before
connecting it to the machine to prevent
sand and other particles from entering
the machine.
N Connect hose (3/4" diameter)
N Mesh the jaws with each other and
turn right as far as possible
N Turn on the tap – water tank fills with
water
Do not use dirty water. When the water
quality is poor (e. g., flowing sand), use
a water filter in the water intake – see
"Special accessories".
1
2
3
647BA022 KN
647BA023 KN
3
4
Connecting the water supply
