RE 521, RE 551 PLUS, RE 581, RE 581 PLUS
English
60

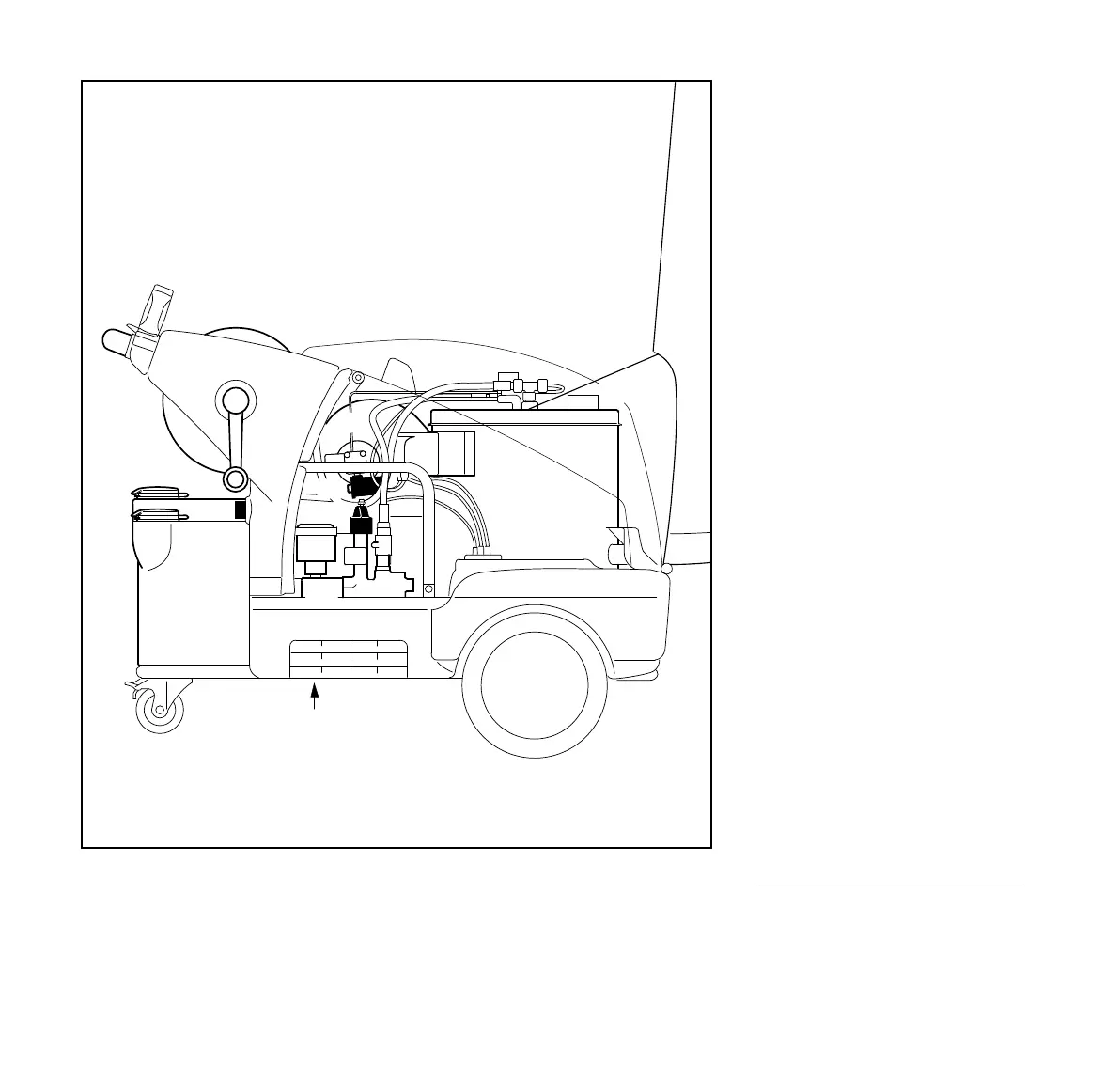

28 Push handle
29 Filling port for scale inhibitor
30 Filling port for antifreeze
31 Hose reel
32 Crank handle for hose reel
33 Connector high-pressure hose
(machines without hose reel)
34 High-pressure pump
35 Regulation valve block
36 Expansion tank for oil
37 Pressure/quantity control knob
38 Fuel filter
39 Fan for combustion air
40 Ignition transformer
41 Heat exchanger
42 Exhaust gas outlet
43 Oil drain plug
37
35
40
33
36
38
39
34
42
29
30
41
32
31
28
43
675BA043 KN
1)
RE 581, RE 581 PLUS only
2)
not on RE 521
