7 Assembling the Lawn Mower
6.2 Displaying the Charge State
► Press button (1).
The LEDs illuminate green for approx. 5 seconds to
indicate the charge state.
► If the right LED flashes green: charge the battery.
6.3 LEDs on Battery
The LEDs can show the state of charge or malfunctions. The
LEDs can glow or flash green or red.
The state of charge is indicated when the LEDs glow or flash
green.
► If the LEDs glow or flash red: Troubleshooting, @ 20.1.
There is a malfunction in the mower or battery.

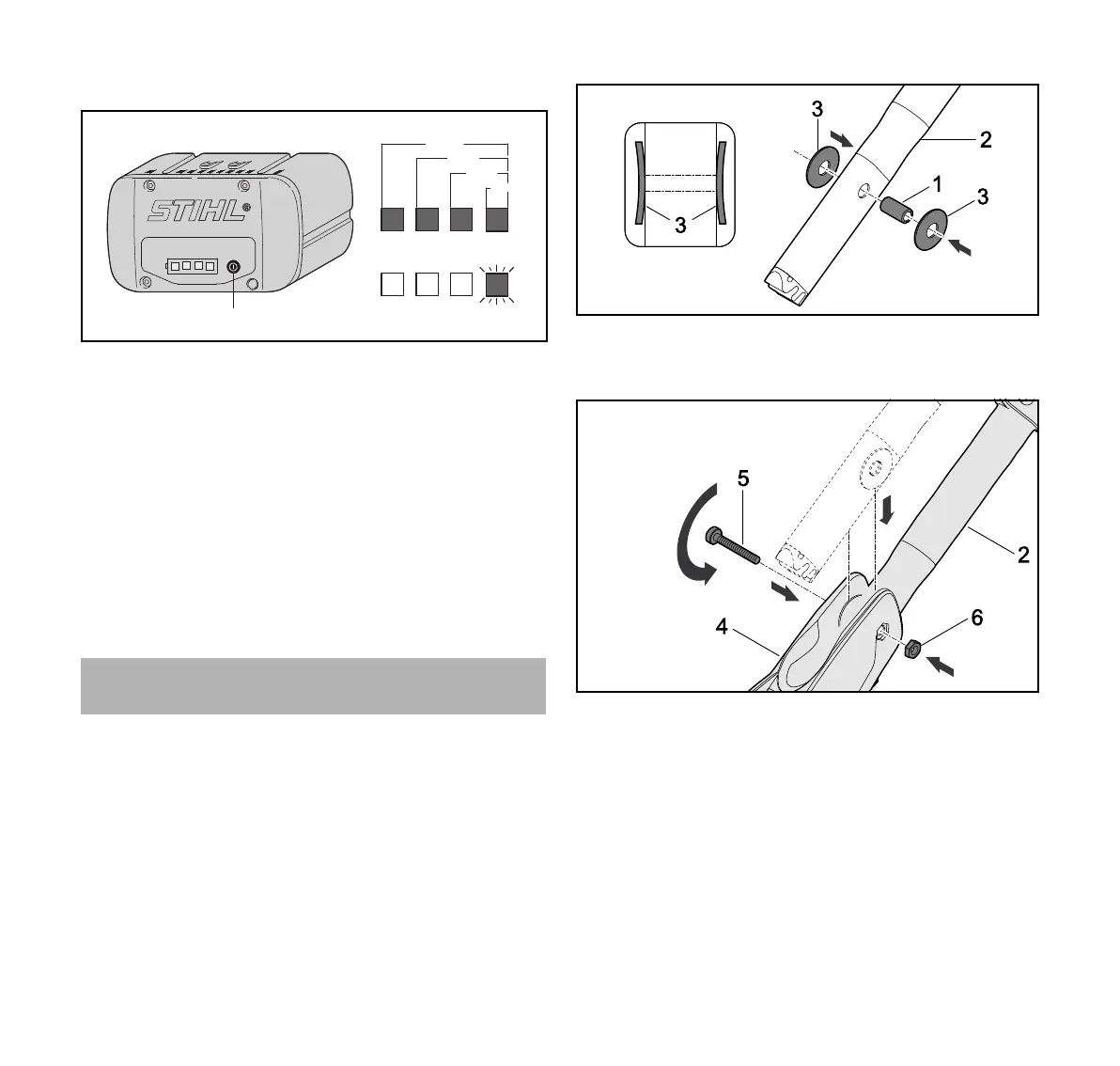

7.1 Attaching the Handlebar
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Place the lawn mower on a level surface.
► Press sleeve (1) into the bores in upper handlebar (2).
► Fit spring washers (3) with the convex side facing inwards
onto sleeve (1).
► Guide upper handlebar (2) into handlebar bracket (4).
► Push bolt (5) through the bores in handlebar bracket (4)
and the sleeve in upper handlebar (2).
► Place nut (6) in the notch in handlebar bracket (4).
► Tighten bolt (5).
7 Assembling the Lawn Mower
1
20-40%
40-60%
60-80%
80-100%
0-20%
