31SR 430, SR 450

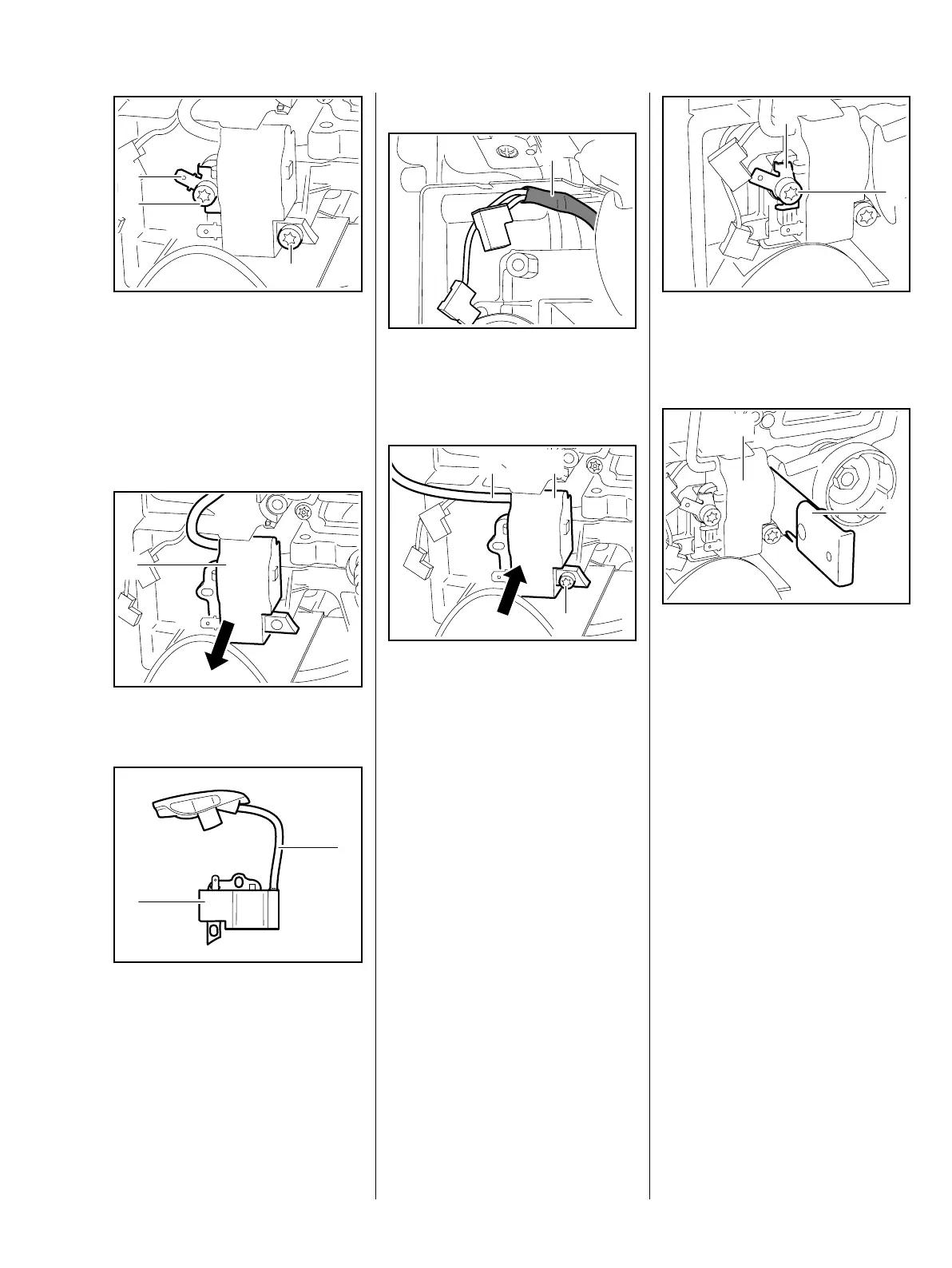

: Take out the screw (3) and
washer.
– Remove the connector tag (1).
: Take out the screw (2) and
washer.
: Remove the ignition module (1).
The ignition module (1) and ignition
lead (2) form a unit.
– Check the spark plug boot and
replace if necessary, b 5.4
– Troubleshooting, b 3.3
0002RA067 TG
2
1
3
0002RA068 TG
1
0002RA069 TG
2
1
Installing
: Hold the wiring harness (1) in the
direction of the carburetor so that
it cannot be pinched.
: Position the ignition module (1)
so that the ignition lead (2) points
towards the carburetor.
: Fit the screw (3) with washer – do
not tighten down yet.
0002RA000 TG
1
0002RA070 TG
2 1
3
: Fit the connector tag (1) and
insert the screw (2) with washer
– do not tighten down yet.
– Push the ignition module (1)
back.
: Slide the setting gauge (2)
4118 890 6401 between the
arms of the ignition module and
the flywheel magnet.
0002RA071 TG
1
2
0002RA072 TG
1
2
