62 SR 430, SR 450
– Install the fuel tank, b 9.12
: Position the fuel hoses (1) kink-
free on the fuel tank.
– Reassemble all other parts in the
reverse sequence.

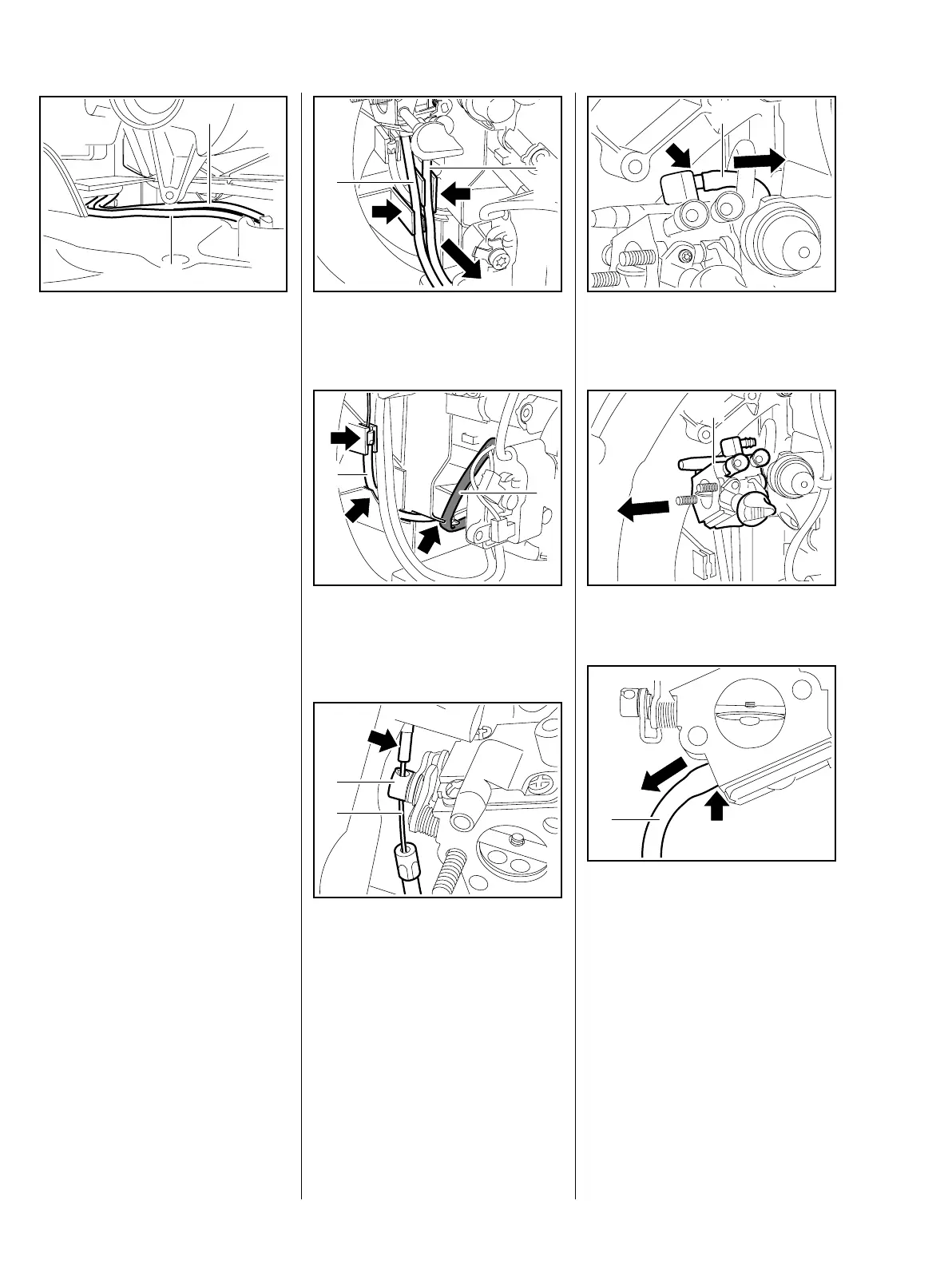

9.5 Removing and Installing
the Carburetor
– Remove the shroud, b 6.2
– Remove the filter housing, b 9.4
– Open the fuel tank cap and drain
the fuel tank, b 1.1
Disconnect the fuel hoses only
when the tank cap is open.
Always install new fuel hoses.
0001RA469 TG
1
1
: Pull the fuel hoses (1) out of the
guides (arrows).
: Pull the throttle cable (1) and
wiring harness (2) out of the
guides (arrows).
– Press down the throttle lever until
the nipple (arrow) projects.
: Take the throttle cable (1) out of
the pin (2).
0002RA085 TG
1
1
0002RA221 TG
1
2
1
2
0002RA087 TG
: Pull the fuel hose (1) off the
nipple (arrow).
: Remove the carburetor (1).
: Pull the fuel hose (1) off the
nipple (arrow).
0002RA222 TG
1
0002RA224 TG
1
1
0002RA220 TG
