61SR 430, SR 450

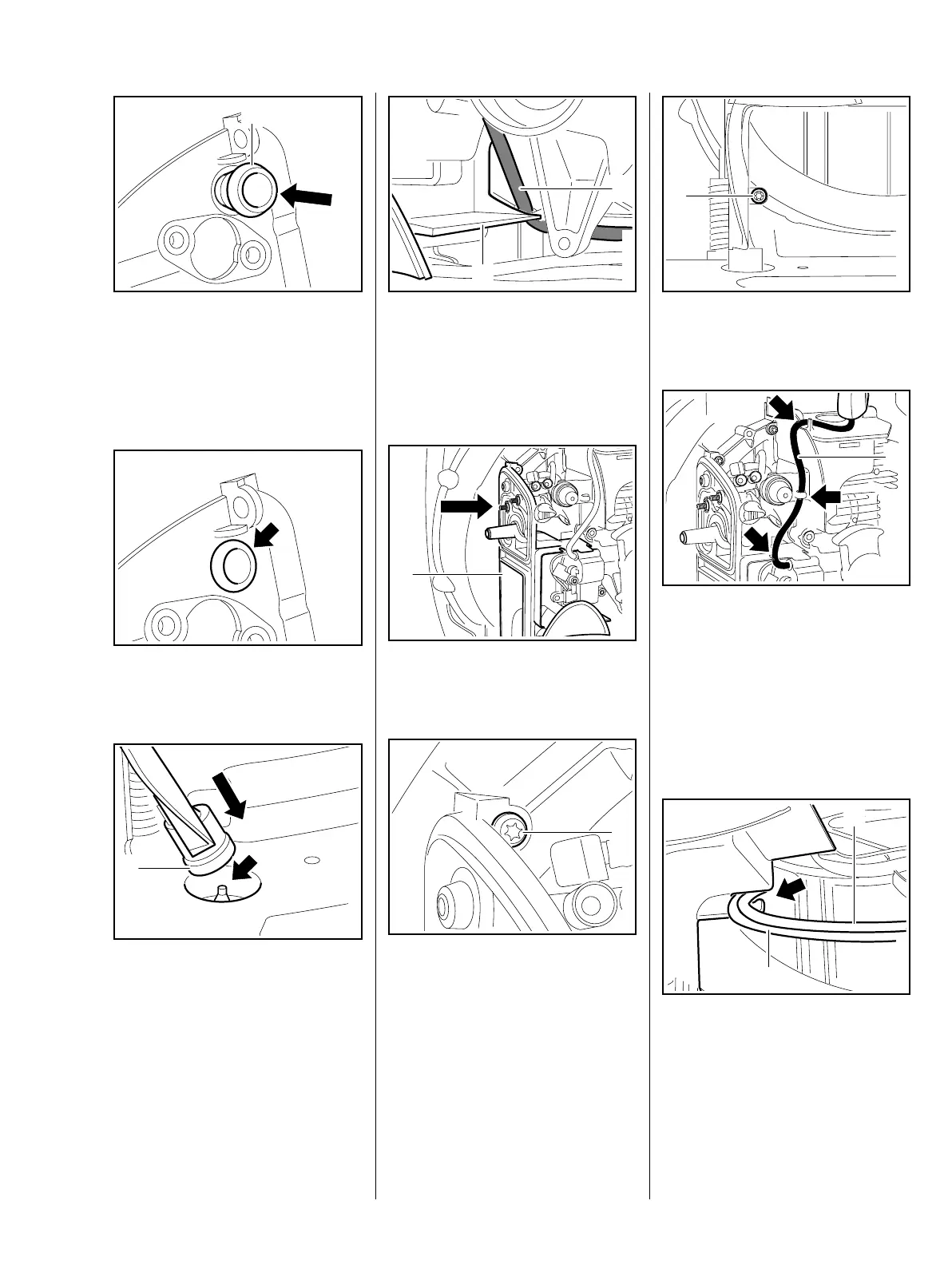

Use STIHL press fluid to simplify
assembly, b 13
: Push the grommet (1), tapered
end first, into the hole.
: The flange (arrow) must locate
properly in the hole.
: Push the filter housing with stop
buffer (1) onto the boss (arrow).
0002RA211 TG
1
0002RA212 TG0002RA214 TG
1
: Place the filter housing (1) in
position
make sure the wiring
harness (2) and fuel hoses are
not pinched.
: Push the filter housing (1) onto
the studs.
: Insert and tighten down the
screw (1) firmly.
0002RA215 TG
1
2
0002RA217 TG
1
0002RA219 TG
1
: Insert and tighten down the
screw (1) firmly.
: Starting at the ignition module,
attach the ignition lead (1) to the
guides (arrows).
Position the ignition lead so that it is
not kinked at the ignition module
and not under tension.
Install the baffle, b 9.2
: Fit the fuel hoses (1) in the
guide (arrow).
0002RA202 TG
1
0002RA486 TG
1
0002RA497 TG
1
1
