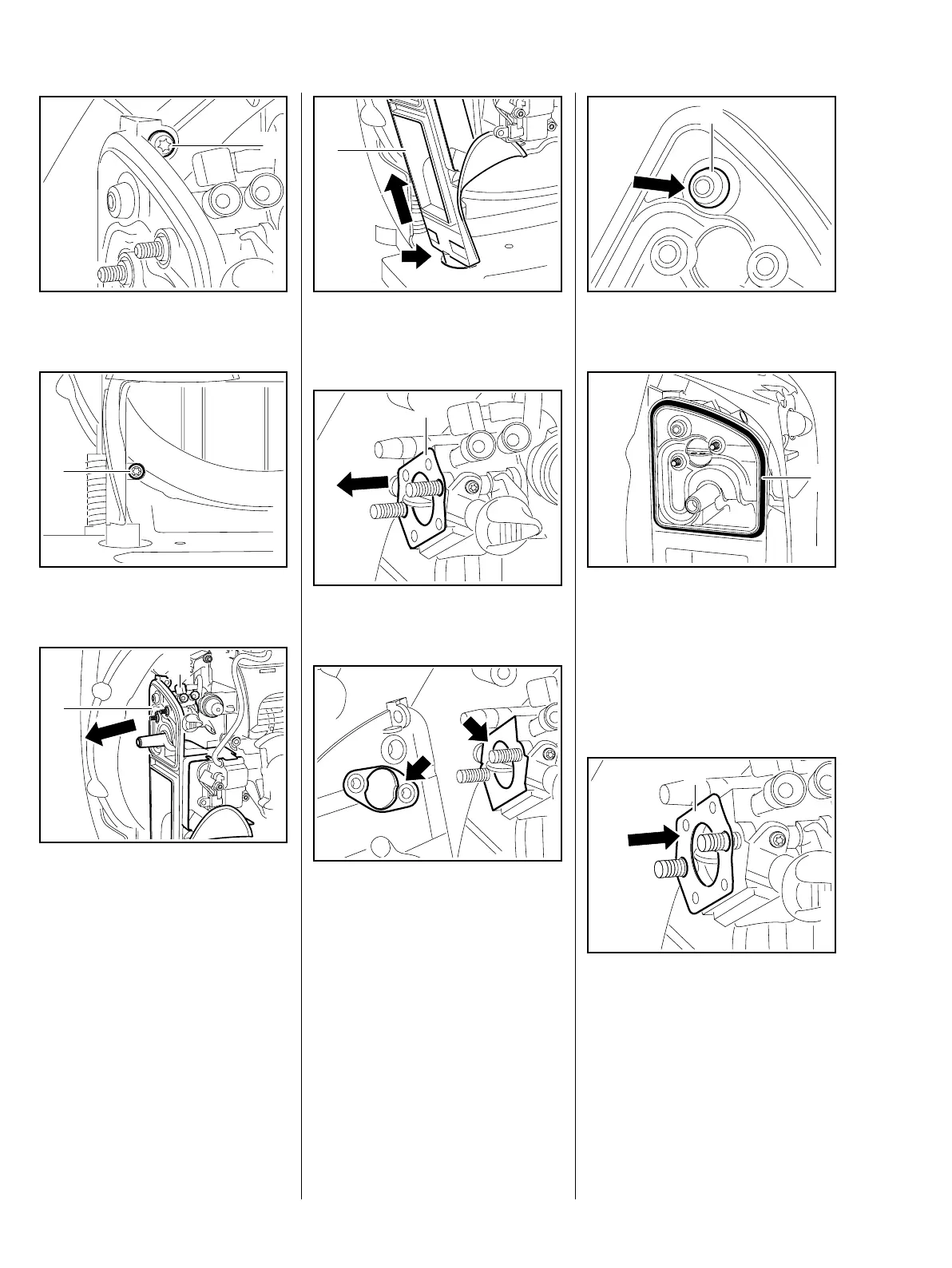

60 SR 430, SR 450
: Take out the screw (1).
: Take out the screw (1).
: Hold the carburetor (1) steady,
grip the upper edge of the filter
housing (2) and pull it off the
studs – disconnect the rubber
grommet if necessary.
Remove the fuel hoses from the
lower guides at the same time.
0002RA201 TG
1
0002RA202 TG
1
0002RA203 TG
2
1
: Pull the filter housing (1) off the
boss (arrow).
: Remove the gasket (1).
: Check and clean the sealing
faces (arrows) on the carburetor
and filter housing, b 13
Always replace components with
damaged sealing faces.
0002RA204 TG
1
0002RA205 TG
1
0002RA206 TG
: Push out the grommet, (1).
Check the gasket (1)
and replace if necessary.
Make sure the gasket (1) is properly
seated.
Installing
: Fit the gasket (1).
0002RA208 TG
1
0002RA192 TG
1
0002RA207 TG
1
