Stihl SR 430 - Blower Housing, SR

95SR 430, SR 450

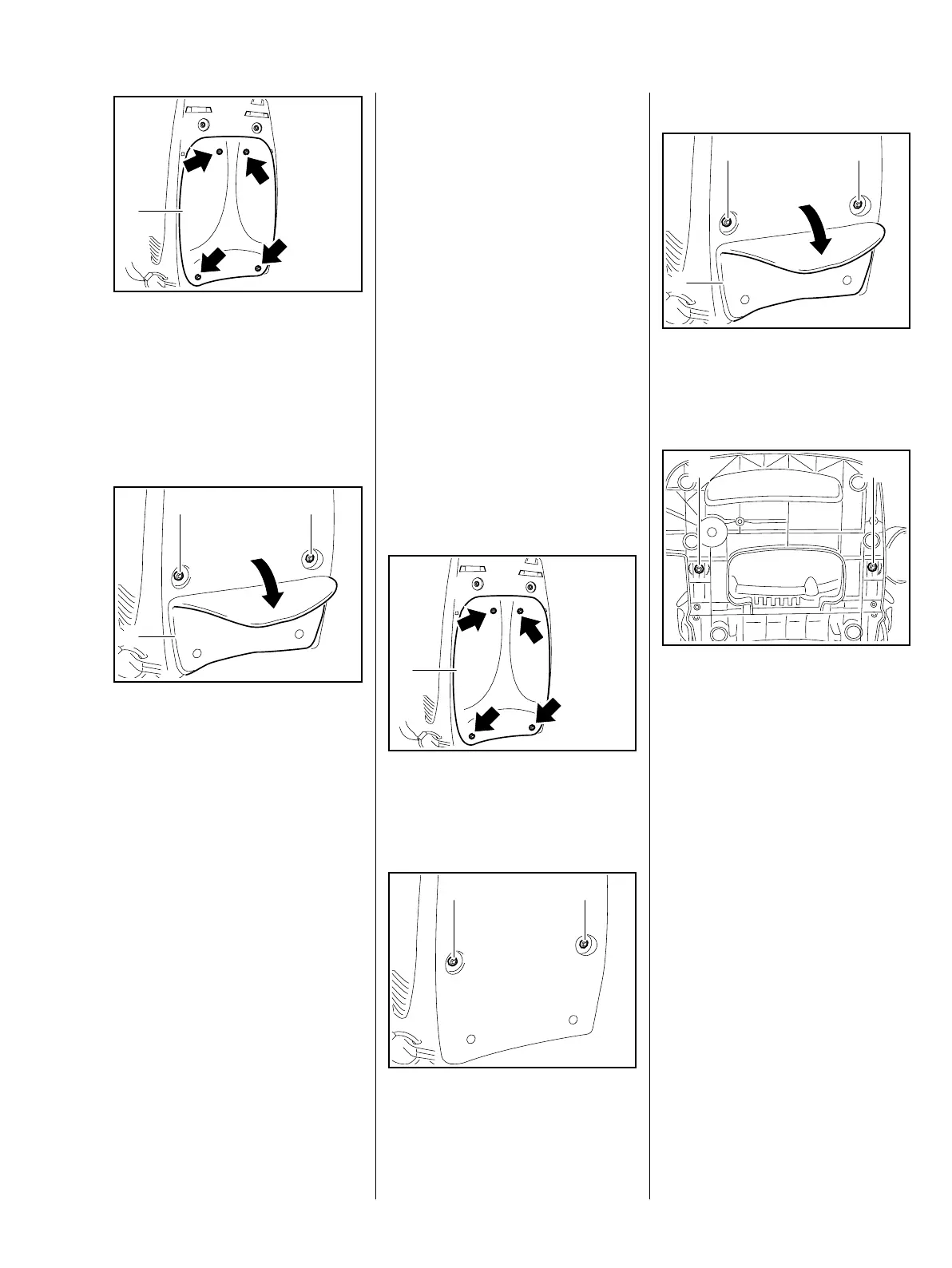

: Fit the back padding (1) in
position.
: Insert the screws (arrows) and
tighten them down firmly.
Versions with short back padding
: Fold down the back padding (1).
: Fit and tighten down the
screws (2) firmly.
– Reassemble all other parts in the
reverse sequence.
0002RA487 TG
1
0002RA373 TG
1
2 2
10.8 Blower Housing,
SR 450
– Remove the metering unit,
b 10.3
– Remove the short circuit wire,
b 5.6.2
– Remove the filter housing, b 9.4
– Remove the fuel tank, b 9.12
– Pull the fuel hoses out of the
guides.
– Remove the short circuit wire
from the blower housing,
b 5.6.2
Versions with long back padding
: Take out the screws (arrows).
: Remove the back padding (1).
: Take out the screws (1).
0002RA487 TG
1
0002RA490 TG
1 1
Versions with short back padding
: Fold down the back padding (1).
: Take out the screws (2).
: Remove the screws (1) from the
underside of the machine.
0002RA373 TG
1
2 2
0002RA374 TG
1 1
