78 SR 430, SR 450

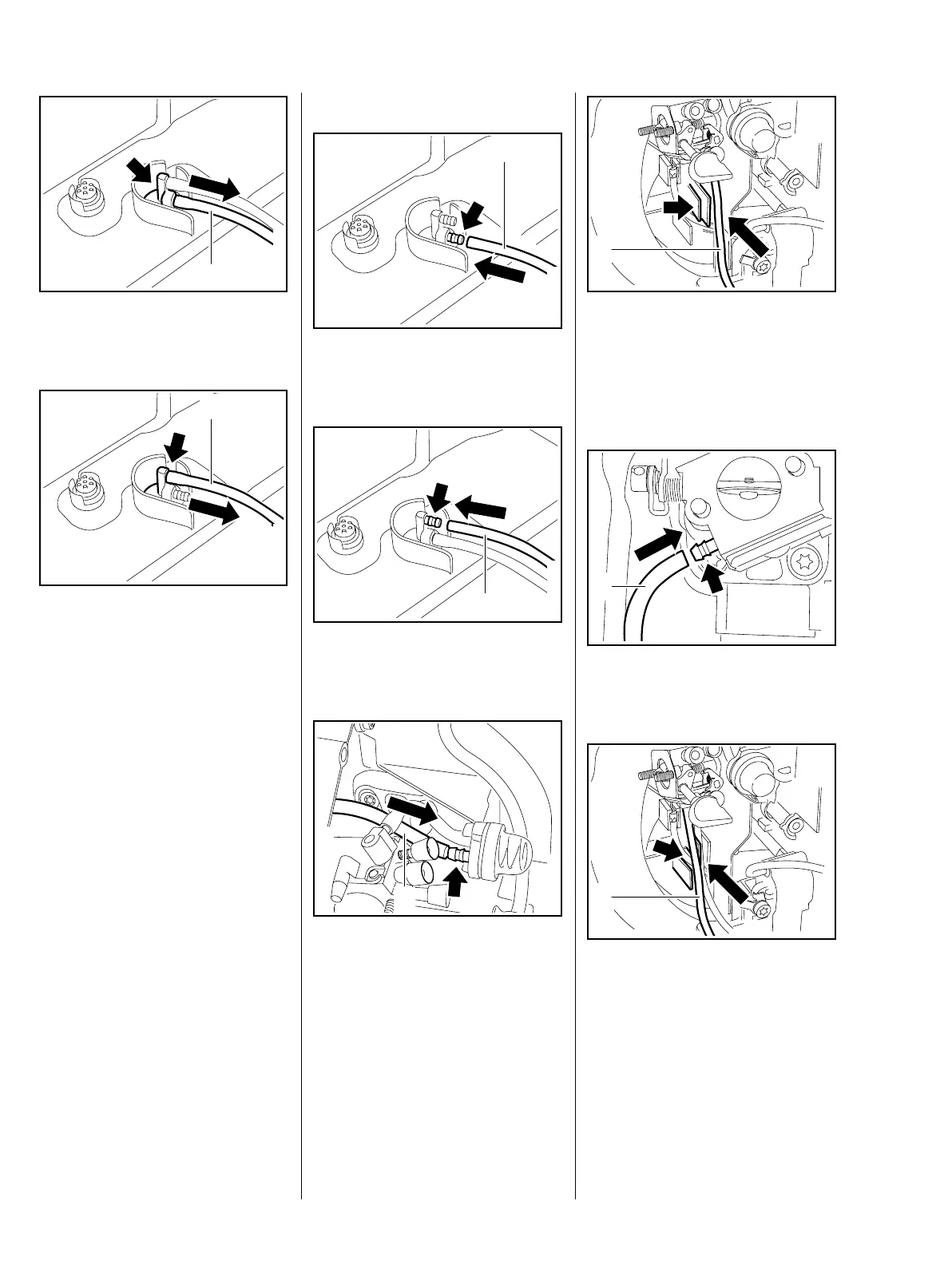

: Pull the fuel return hose (1) off
the connector (arrow).
: Pull the fuel suction hose (1) off
the connector (arrow).
Always install new fuel hoses.
Take care not to damage the new
fuel hoses.
0002RA295 TG
1
0002RA296 TG
1
Installing
: Push the fuel return hose (1) onto
the lower nipple (arrow).
: Push the fuel suction hose (1)
onto the upper nipple (arrow).
: Push the fuel return hose (1) onto
the nipple (arrow).
0002RA297 TG
1
0002RA298 TG
1
0002RA300 TG
1
: Press the fuel return hose (1)
into the guide (arrow).
– Reassemble all other parts in the
reverse sequence.
: Push the fuel suction hose (1)
onto the nipple (arrow).
: Press the fuel suction hose (1)
into the guide (arrow).
– Lay the fuel hoses parallel
– do not cross them over.
0002RA299 TG
1
0002RA228 TG
1
0002RA301 TG
1
