88 SR 430, SR 450

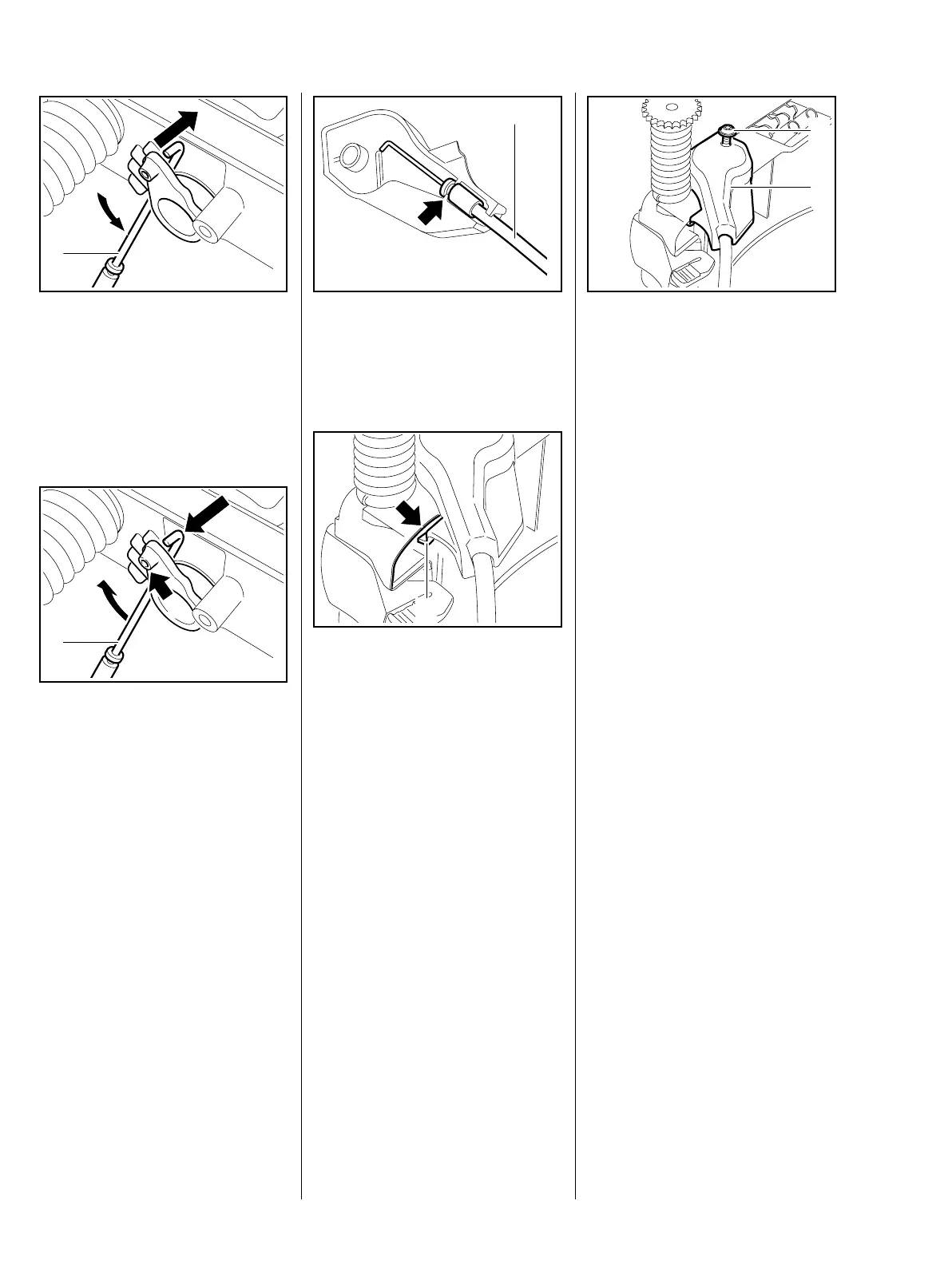

: Turn the cable (1) until it is next to
the ribs.
: Take the cable (1) out of the
lever (1).
Installing
: Push the cable (1) into the
bore (arrow) in the lever.
– Turn the cable (1) until it is above
the ribs.
1
0002RA348 TG0002RA349 TG
1
– Place the cover (2) in position.
: Engage the cable (1) in the
guide (arrow).
: Engage the cover's retaining
tab (1) on the housing (arrow).
0002RA347 TG
1
0002RA350 TG
1
: Place the cover (1) in position.
: Insert and tighten down the
screw (2) firmly.
– Install the metering unit, b 10.3
– Reassemble all other parts in the
reverse sequence.
– Check operation.
– Shutter in metering unit must
open and close completely when
the lever on the control handle is
operated. Adjust cable if
necessary, b 8.5.1.
0002RA351 TG
2
1

Stihl SR 430 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12200 g
