Stihl SR 430 - Page 94

93SR 430, SR 450

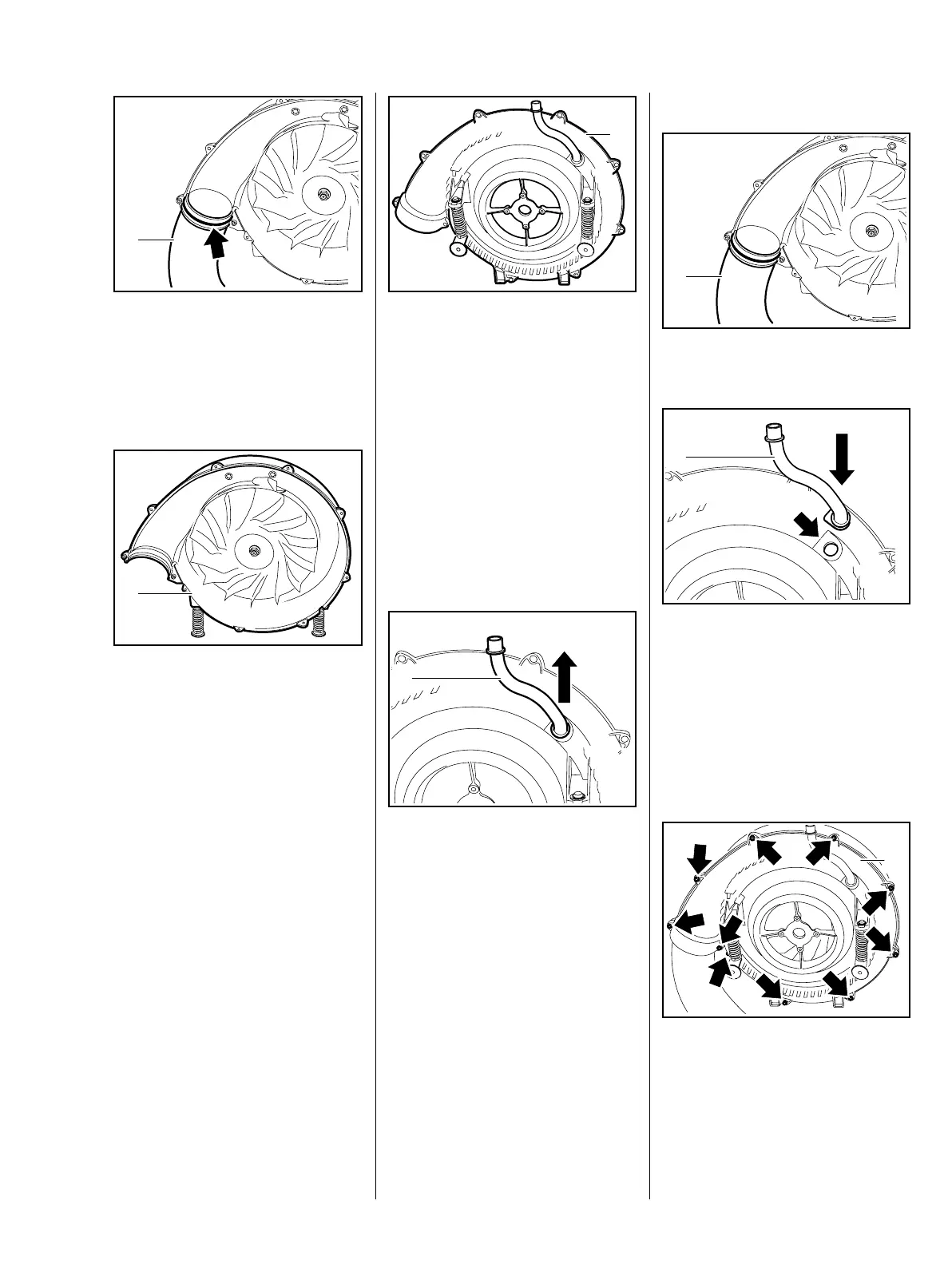

: Remove the elbow (1) with
blower tube.
– Check the sealing ring (arrow)
and replace it if necessary
– Check the inner blower
housing (1) and replace it if
necessary
– Inspect other components and
transfer if necessary.
– Transfer the blower wheel,
b 10.6
– Transfer the engine, b 4.5
– Transfer the AV springs, b 7
0002RA381 TG
1
0002RA382 TG
1
– Check the outer blower
housing (1) and replace it if
necessary
– Inspect other components and
transfer if necessary.
– Transfer the pressure pump (if
fitted), b 10.5
– Transfer the molded hose.
– Transfer the AV springs, b 7
: Pull out the molded hose (1).
0002RA383 TG
1
0002RA384 TG
1
Installing
: Place the elbow (1) in position.
– Use STIHL press fluid, b 13
: Push the molded hose (1), tab
facing edge of housing (arrow),
into the hole.
– Push the molded hose (1) fully
into the blower housing.
– Place the outer blower
housing (1) in position.
: Insert the screws (arrows) and
tighten them down firmly.
0002RA385 TG
1
0002RA386 TG
1
0002RA380 TG
1
