– Check the outer blower
housing (1) and replace it if
necessary
– Inspect other components and
transfer if necessary.
– Transfer the pressure pump (if
fitted), b 10.5
– Transfer the AV springs, b 7

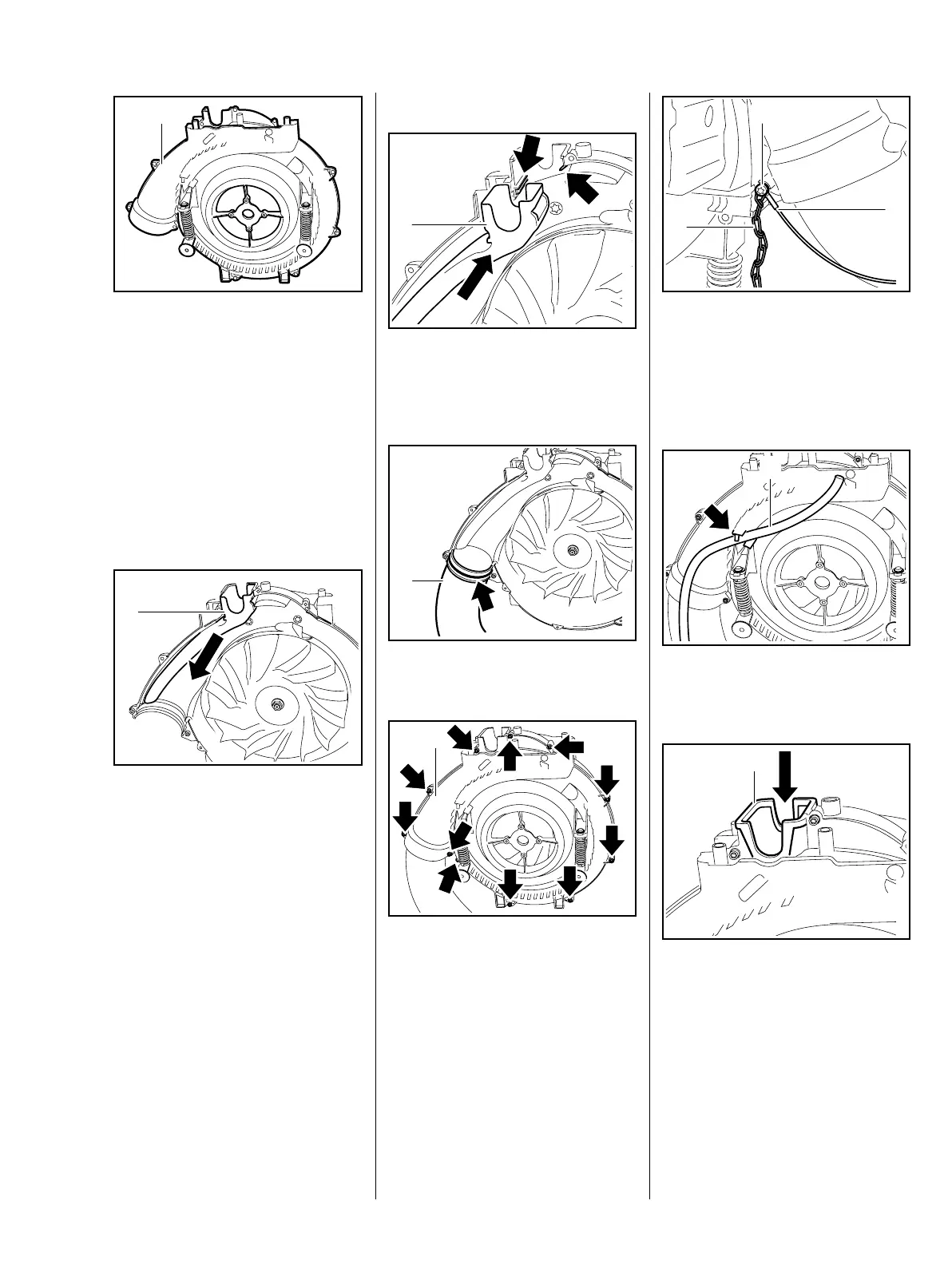

: Pull out the air guide (1).
0002RA400 TG
1
0002RA401 TG
1
Installing
: Position the air guide (1) on the
guides (arrows) and push it
home.
: Place the elbow (1) in position.
– Place the outer blower
housing (1) in position.
: Insert the screws (arrows) and
tighten them down firmly.
0002RA402 TG
1
0002RA398 TG
1
0002RA365 TG
1
– Fit the antistatic wire (2) and
chain (3).
: Insert and tighten down the
screw (1) firmly.
: Fit the hose (1) in the
guide (arrow).
: Push the gasket (1) fully home –
its lips must locate snugly against
the housing.
