83SR 430, SR 450

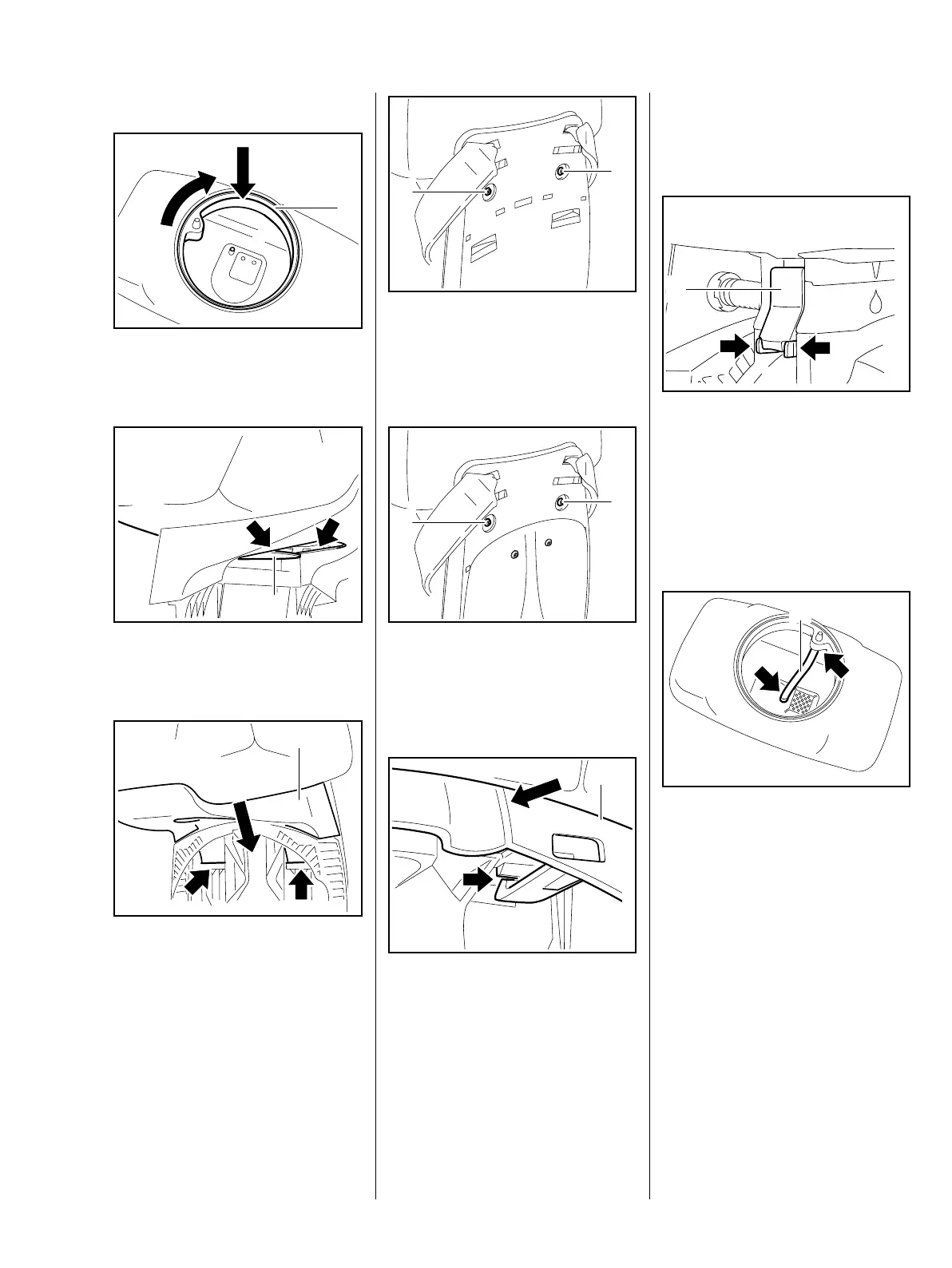

Installing
: Fit the strainer (1) and rotate it
45° clockwise until it engages.
: Push the container (1) into the
guides (arrows) as far as stop.
: Push the bracket (1) into the
guides (arrows).
0002RA495 TG
1
0002RA319 TG
1
0002RA320 TG
1
: Fit and tighten down the
screws (1) firmly.
Versions with long back padding
: Fit and tighten down the
screws (1) firmly.
All versions
: Push the protective screen (1)
into position until the locking
tabs (arrow) at both sides snap
into place.
– Install the blower housing,
b 10.7
0002RA314 TG
1
1
0002RA489 TG
1
1
0002RA321 TG
1
10.2 Container, SR 450
Drain the container.
: Squeeze the retaining
tabs (arrows) together and
unlock the clamping lever (1).
– Remove the container.
– Unscrew the cap.
: Pull the hose (1) off the
nipples (arrows).
0002RA325 TG
1
0002RA323 TG
1

Stihl SR 450 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12800 g
