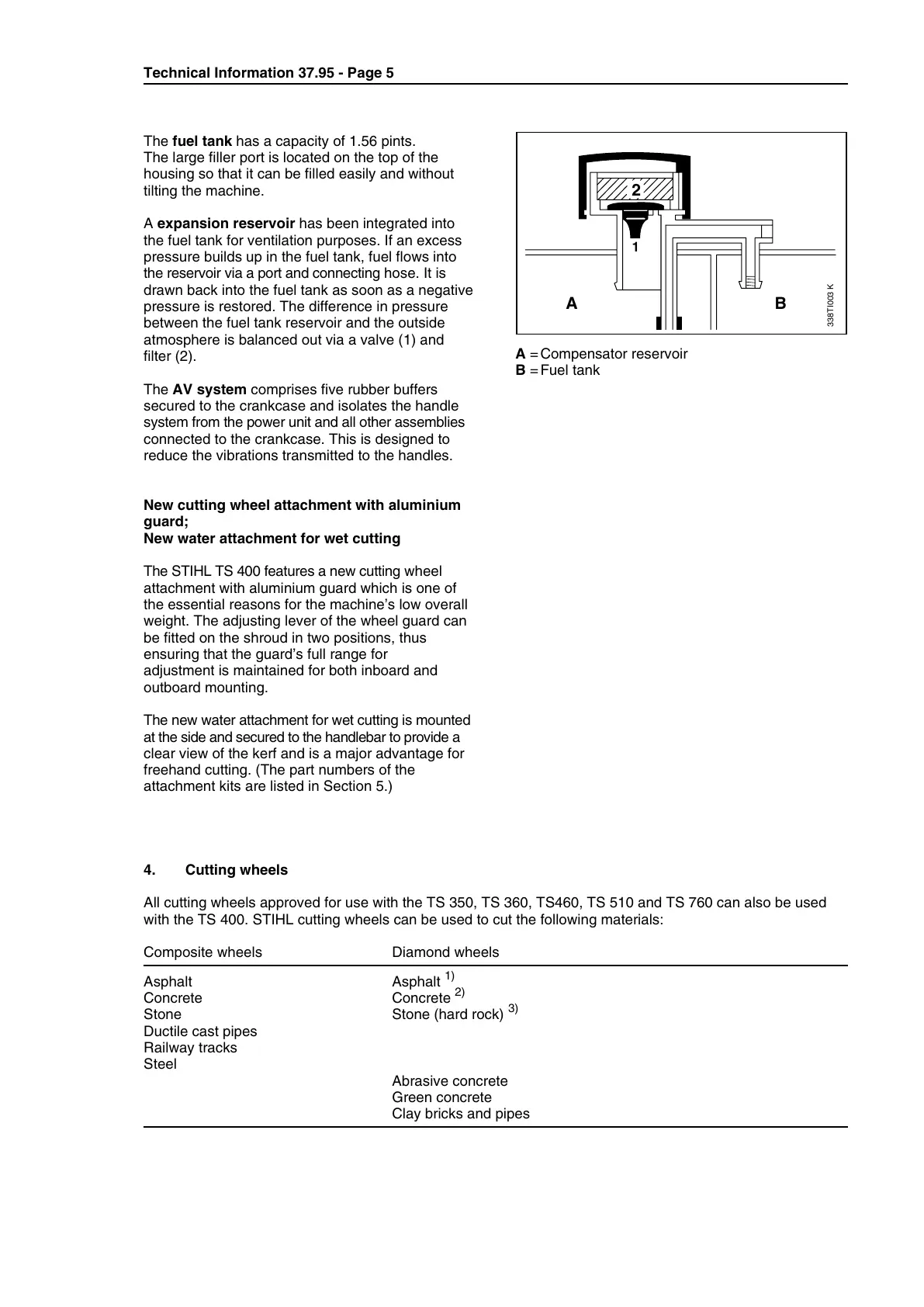

The fuel tank has a capacity of 1.56 pints.
The large filler port is located on the top of the
housing so that it can be filled easily and without
tilting the machine.
A expansion reservoir has been integrated into
the fuel tank for ventilation purposes. If an excess
pressure builds up in the fuel tank, fuel flows into
the reservoir via a port and connecting hose. It is
drawn back into the fuel tank as soon as a negative
pressure is restored. The difference in pressure
between the fuel tank reservoir and the outside
atmosphere is balanced out via a valve (1) and
filter (2).
The AV system comprises five rubber buffers
secured to the crankcase and isolates the handle
system from the power unit and all other assemblies
connected to the crankcase. This is designed to
reduce the vibrations transmitted to the handles.
New cutting wheel attachment with aluminium
guard;
New water attachment for wet cutting
The STIHL TS 400 features a new cutting wheel
attachment with aluminium guard which is one of
the essential reasons for the machine’s low overall
weight. The adjusting lever of the wheel guard can
be fitted on the shroud in two positions, thus
ensuring that the guard’s full range for
adjustment is maintained for both inboard and
outboard mounting.
The new water attachment for wet cutting is mounted
atthesideandsecuredtothehandlebartoprovidea
clear view of the kerf and is a major advantage for
freehand cutting. (The part numbers of the
attachment kits are listed in Section 5.)
A =Compensator reservoir
B =Fuel tank
2
1
A
B
338TI003 K
4. Cutting wheels
All cutting wheels approved for use with the TS 350, TS 360, TS460, TS 510 and TS 760 can also be used
with the TS 400. STIHL cutting wheels can be used to cut the following materials:
Composite wheels Diamond wheels
Asphalt Asphalt
1)
Concrete Concrete
2)
Stone Stone (hard rock)
3)
Ductile cast pipes
Railway tracks
Steel
Abrasive concrete
Green concrete
Clay bricks and pipes
Technical Information 37.95 - Page 5
