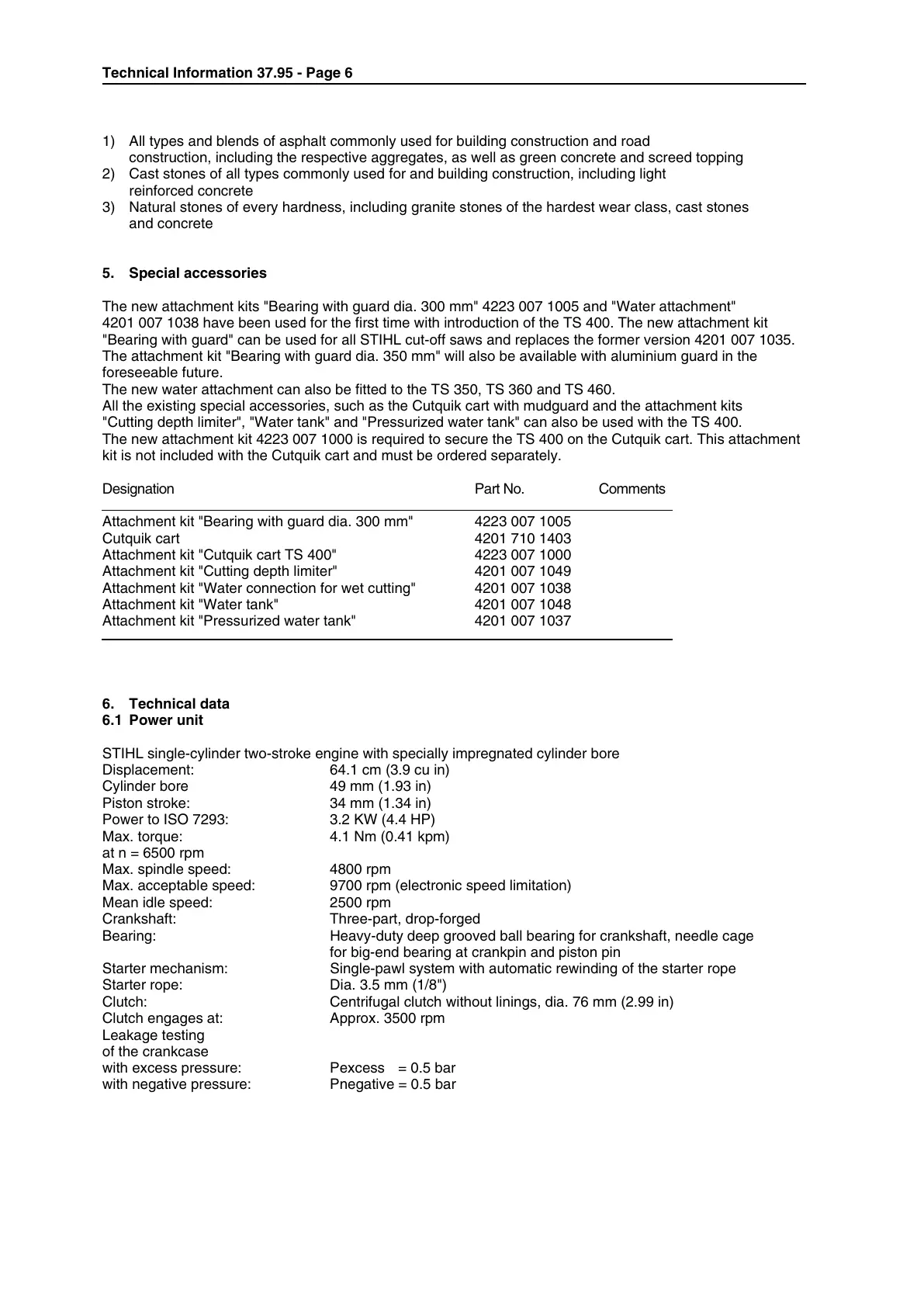

Stihl TS 400 Technical Information

1) All types and blends of asphalt commonly used for building construction and road
construction, including the respective aggregates, as well as green concrete and screed topping
2) Cast stones of all types commonly used for and building construction, including light
reinforced concrete
3) Natural stones of every hardness, including granite stones of the hardest wear class, cast stones
and concrete
5. Special accessories
The new attachment kits "Bearing with guard dia. 300 mm" 4223 007 1005 and "Water attachment"
4201 007 1038 have been used for the first time with introduction of the TS 400. The new attachment kit
"Bearing with guard" can be used for all STIHL cut-off saws and replaces the former version 4201 007 1035.
The attachment kit "Bearing with guard dia. 350 mm" will also be available with aluminium guard in the
foreseeable future.
The new water attachment can also be fitted to the TS 350, TS 360 and TS 460.
All the existing special accessories, such as the Cutquik cart with mudguard and the attachment kits
"Cutting depth limiter", "Water tank" and "Pressurized water tank" can also be used with the TS 400.
The new attachment kit 4223 007 1000 is required to secure the TS 400 on the Cutquik cart. This attachment
kit is not included with the Cutquik cart and must be ordered separately.
Designation Part No. Comments
Attachment kit "Bearing with guard dia. 300 mm" 4223 007 1005
Cutquik cart 4201 710 1403
Attachment kit "Cutquik cart TS 400" 4223 007 1000
Attachment kit "Cutting depth limiter" 4201 007 1049
Attachment kit "Water connection for wet cutting" 4201 007 1038
Attachment kit "Water tank" 4201 007 1048
Attachment kit "Pressurized water tank" 4201 007 1037
6. Technical data
6.1 Power unit
STIHL single-cylinder two-stroke engine with specially impregnated cylinder bore
Displacement: 64.1 cm (3.9 cu in)
Cylinder bore 49 mm (1.93 in)
Piston stroke: 34 mm (1.34 in)
Power to ISO 7293: 3.2 KW (4.4 HP)
Max. torque: 4.1 Nm (0.41 kpm)
at n = 6500 rpm
Max. spindle speed: 4800 rpm
Max. acceptable speed: 9700 rpm (electronic speed limitation)
Mean idle speed: 2500 rpm
Crankshaft: Three-part, drop-forged
Bearing: Heavy-duty deep grooved ball bearing for crankshaft, needle cage
for big-end bearing at crankpin and piston pin
Starter mechanism: Single-pawl system with automatic rewinding of the starter rope
Starter rope: Dia. 3.5 mm (1/8")
Clutch: Centrifugal clutch without linings, dia. 76 mm (2.99 in)
Clutch engages at: Approx. 3500 rpm
Leakage testing
of the crankcase
with excess pressure: Pexcess = 0.5 bar
with negative pressure: Pnegative = 0.5 bar
Technical Information 37.95 - Page 6

Stihl TS 400 Specifications

General

Arbor Size	20 mm
Power Output	3.2 kW
Engine Type	2-stroke
Sound Pressure Level	98 dB(A)
Sound Power Level	109 dB(A)
Maximum Wheel Size	350 mm
Wheel Size	14 in.
Maximum Cutting Depth	125 mm
Cutting Depth	125 mm
Blade Diameter	14 in.
Warranty	2 years
Engine Power	3.2 kW
