Connecting Thread For Tightening Comments
element size components torque
Nm
Socket-head screw IS-M5x20 Shroud / tank housing 6,0
Socket-head screw IS-M5x20 Crankcase, left / right 10,0
Socket-head screw IS-M5x20 Fan cover / tank housing 6,0
Socket-head screw IS-M5x20 Starter cover / cast arm 6,0
Socket-head screw IS-M5x20 Cylinder / crankcase 10,0
Socket-head screw IS-M5x20 Ignition module / crankcase 8,0 2)
Socket-head screw IS-M5x25 Support / handlebar / tank housing 8,0
Socket-head screw IS-M6x16 AV element, cast arm / handlebar 6,0
Socket-head screw IS-M6x16 AV element, tank housing / cast arm 6,0
Socket-head screw IS-M6x16 AV element, tank housing /
crankcase, left 6,0
Grub screw M5x55 Tank housing / carburetor 4,0
Collar nut M8x1 Flywheel 30,0
Hex nut M8x1 Starter wheel 23,0
Driver M12x1L Clutch 40,0
M14x1,25 Spark plug 27,5
Hex nut M10L V-belt pulley / bearing 37,5
Decompression valve 14,0
When screwing the DG screws into a precut thread:
• Insert the screw in the hole and turn anticlockwise until it drops slightly into the hole.
• Turn the screw clockwise and tighten to the specified torque.
This procedure ensures that the screw engages in the existing thread and does not cut a new thread.
As this would weaken the screw connection.
1) Secure screw with adhesive Loctite 242/243.
2) A washer must be fitted under the head of the screw.
Note: Screws secured with adhesive must be heated with hot air before they can be unscrewed.
Particular care must be exercised on plastic parts!
6.5 Weight
Machine without fuel, complete
with attachment for cutting wheel,
dia. 300 mm (12")
(without cutting wheel): 8.9 kg (19.6 lb)
6.6 Dimensions
Length with cutting wheel
(dia. 300 mm/12"): 740 mm (29 in)
Width with handle: 300 mm (12 in)
Height to handle: 350 mm (14 in)
6.7 Accessories
Combination wrench
Locking pin
Screwdriver

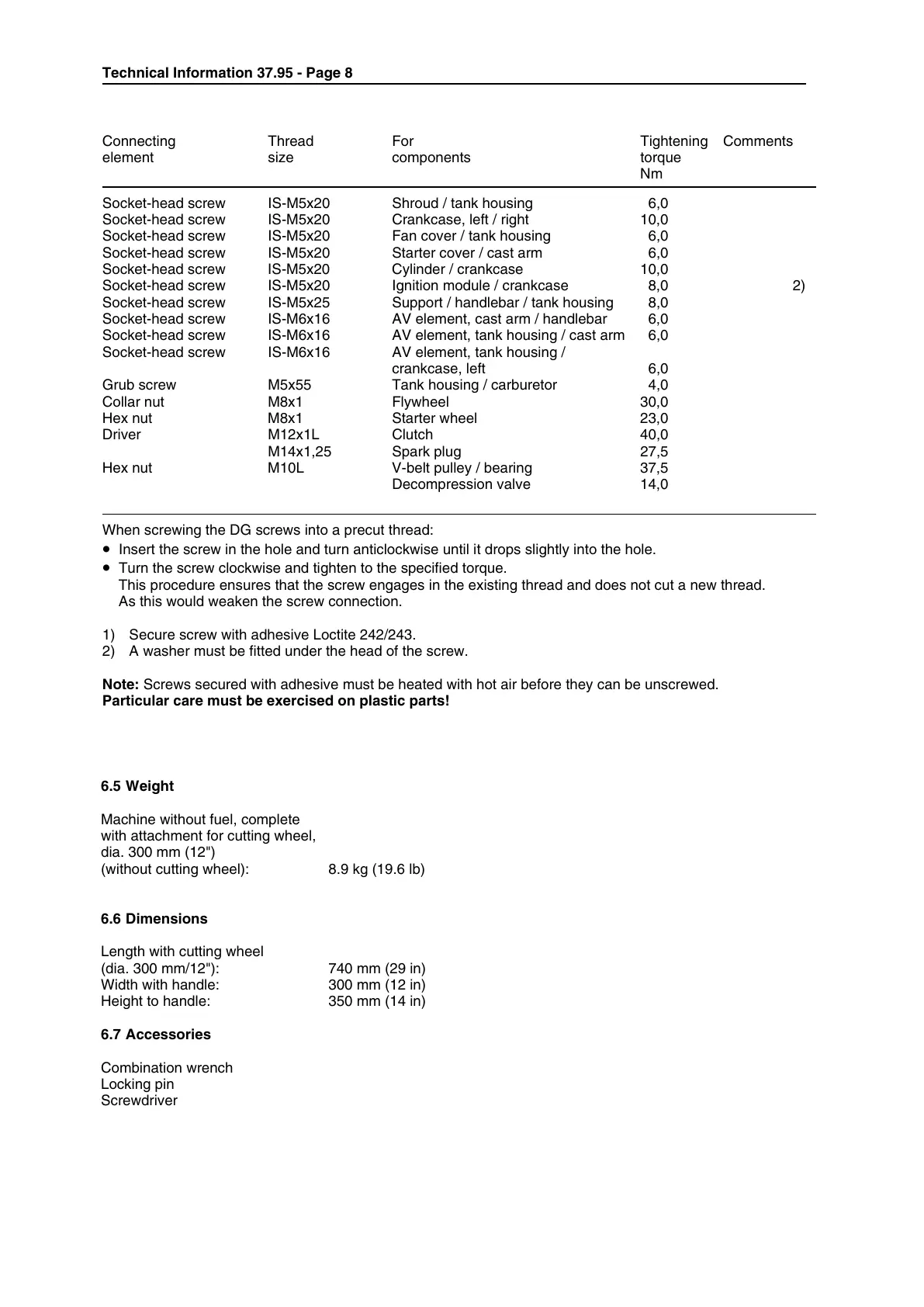

Technical Information 37.95 - Page 8
