29TS 700, TS 800
English / USA
This machine is equipped with an
automatic spring-action V-belt
tensioning device.
: Before tensioning the V-belt, the
hexagon bolts (1) must be
unscrewed and the arrow on the
tensioning nut (2) must point to "0".
If not,
: unscrew the hexagon bolts and
: turn the tensioning nut
anticlockwise with the combination
wrench – approx. 1/4 turn, until it
reaches "0".

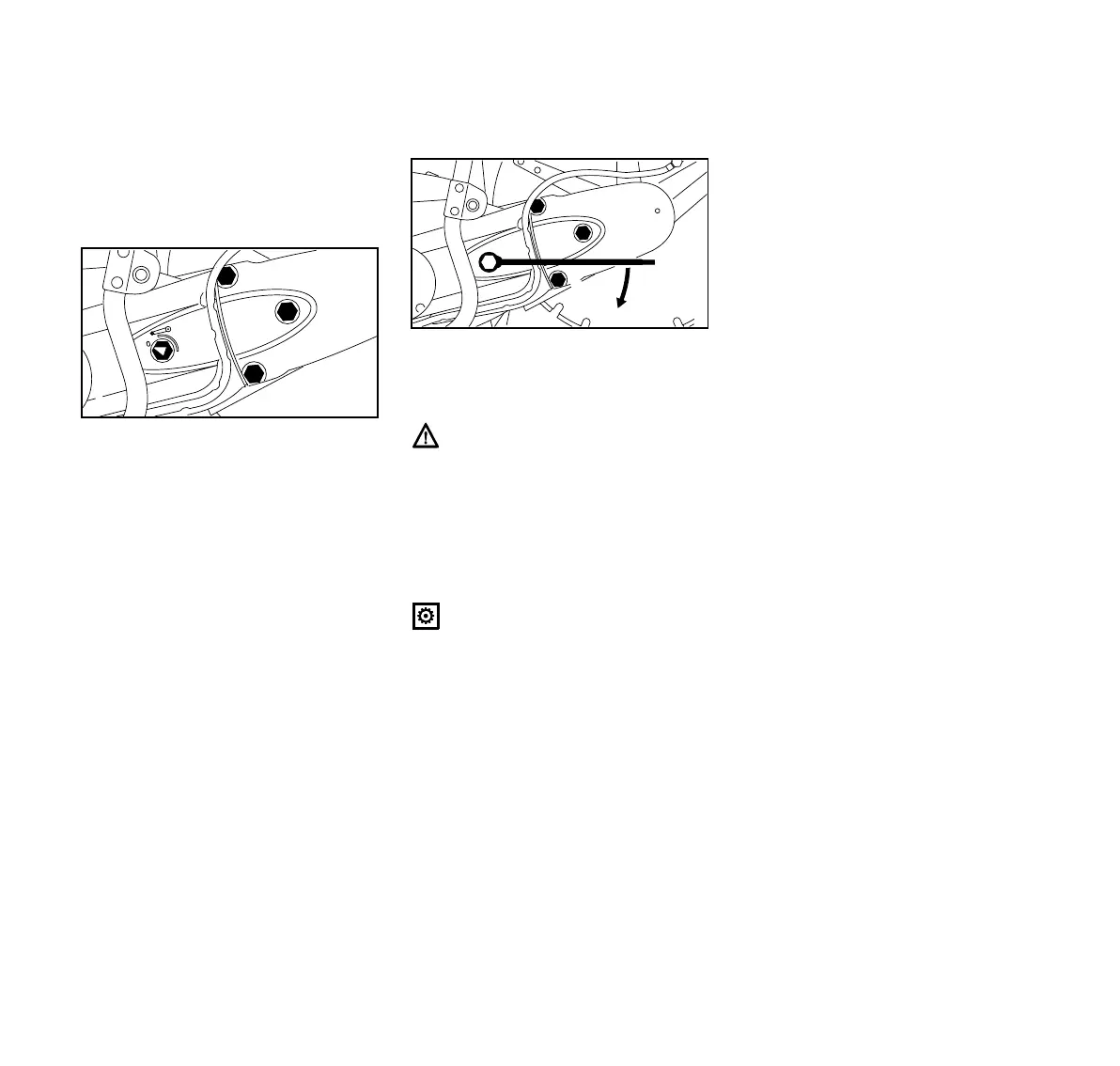

To tension the V-belt,
: fit the combination wrench over the
tensioning nut as illustrated.
The tensioning nut is spring-
loaded – hold the combination
wrench securely!
: Turn the tensioning nut clockwise:
after approx. 1/8 of a turn, the nut is
engaged by the spring and turned
on up to the stop (approx. 1/8 of a
turn).
Do not turn the combination wrench
further by force!
The V-belt is automatically tensioned
by the force of the spring in this position.
: Remove the combination wrench
from the tensioning nut and tighten
down the hexagon bolts (1) on the
V-belt guard.
Retensioning
The V-belt is retensioned without the aid
of the tensioning nut.
: Unscrew the three hexagon bolts on
the V-belt guard.
: The V-belt is automatically
tensioned by the force of the spring.
: Retighten the hexagon bolts.
