Patient positioning
Safety Information
1.

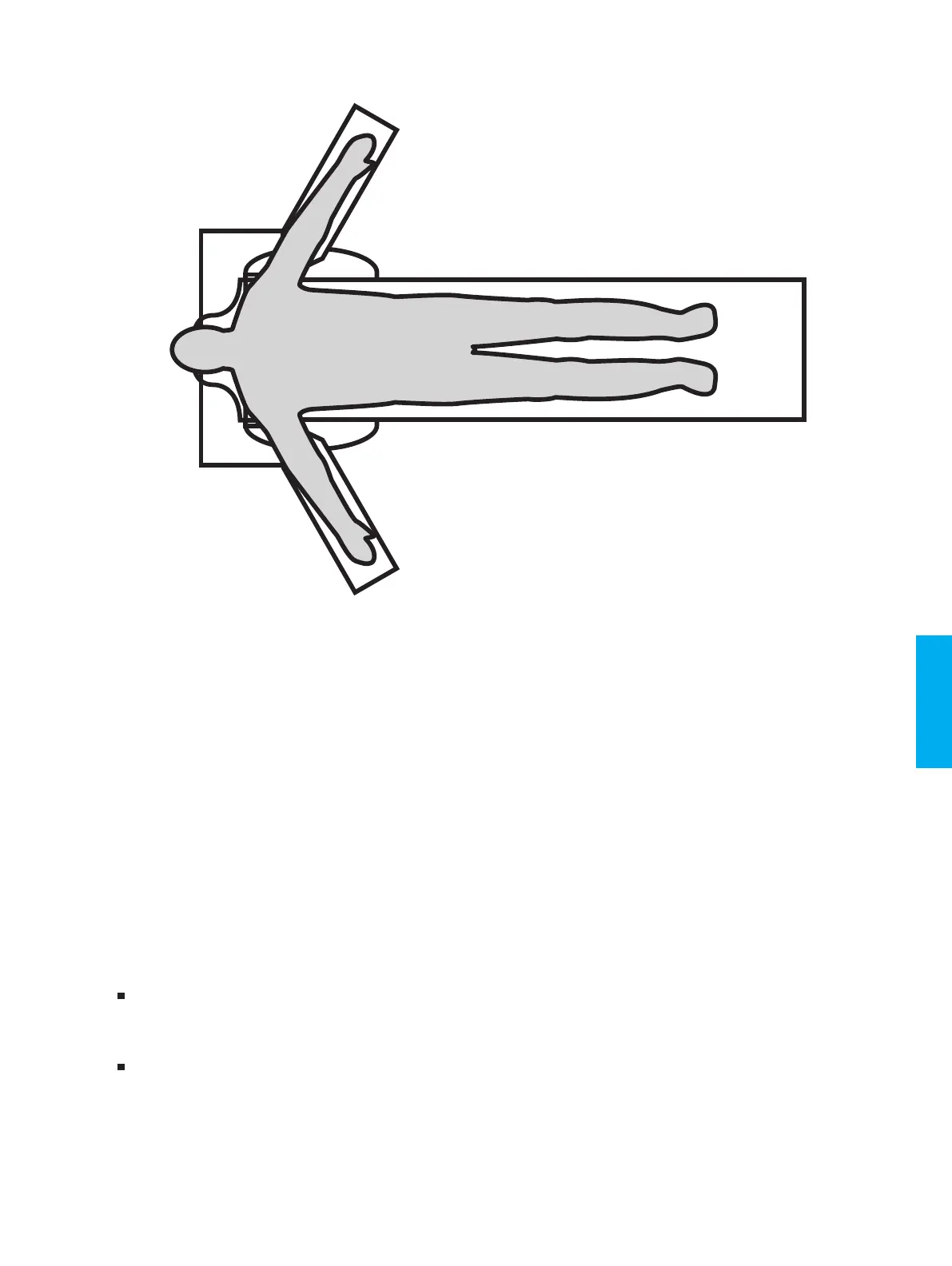

Pan the table top lengthways as far out from the
column as possible. Centre the patient sideways.
2.
Position the image intensifier over the patient’s groin.
Check the imaging area by panning the patient maximally
length- and sideways.
3.
Check that attached accessories on the accessory rails
do not collide with the side protection covers by:
Choosing maximum ISO ROLL™/lateral tilt in one
direction and float the patient length- ways as far as
possible.
Choosing maximum ISO ROLL™/lateral tilt to the
opposite direction and repeat the procedure above.
Imaging of the legs using
True Free Float™
Note 1: A greater longitudinal angle than ±2° will lock
the lengthways panning function.
Note 2: Centre the table top longitudinally over the
column as far as possible before lowering the
free end of the table top.
Note 3: To make lengthways panning of heavy patients
easier, adjust the head-end of the table top
marginally (±2° around the zero position) by
pressing the ”head-end up” button on the hand
control briefly.
