Stinger ELEV8 - Pairing and Device Setup

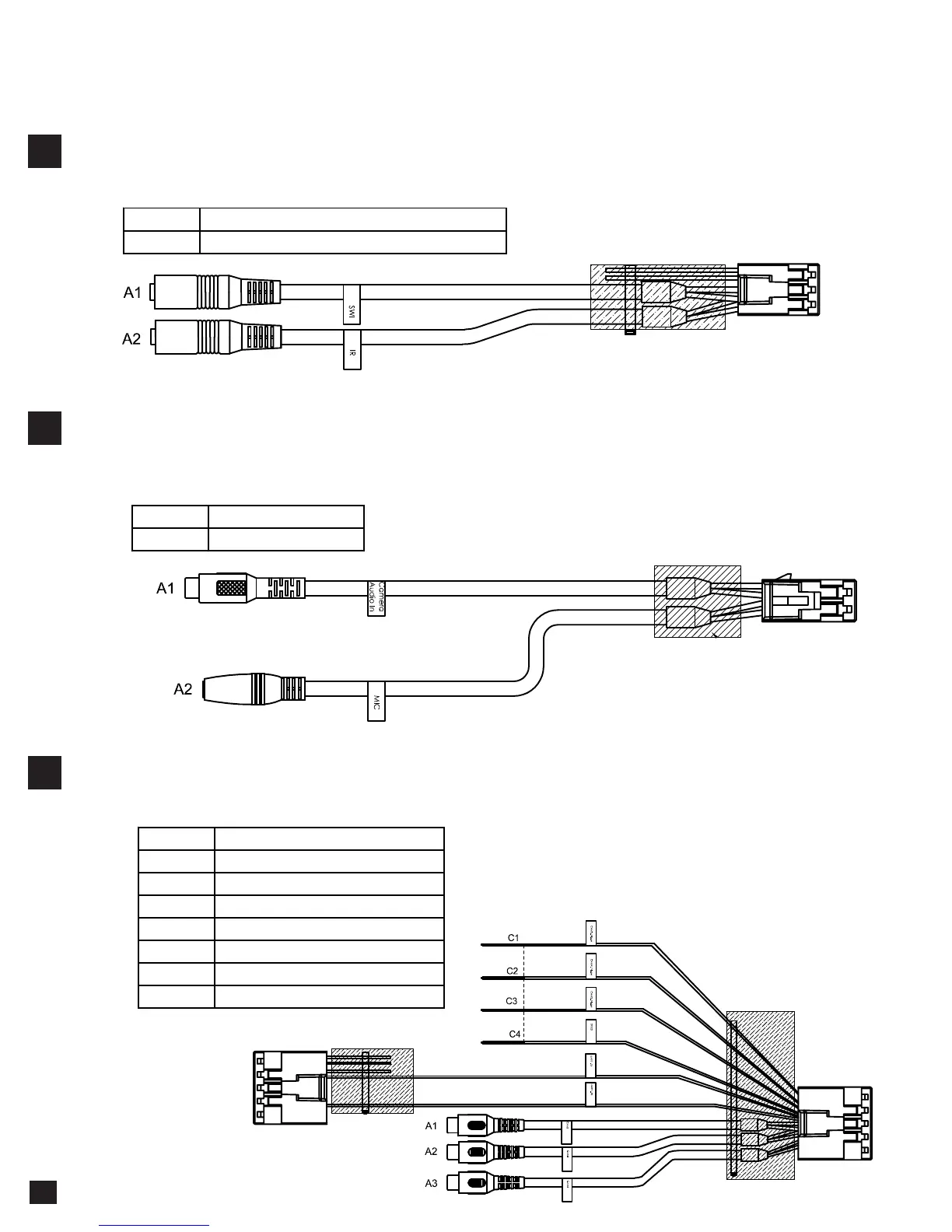

6 Pin SWI / IR Harness
3.5mm Input for optional Steering Wheel Control Interface
(PAC Audio SWI-CP2 is recommended for full compatibility and advanced features. Visit PAC-Audio.com)
A1 Steering Wheel Control Input
A2 IR Input
4 Pin Microphone / Camera Audio Harness
Input for External Microphone (included) used for hands-free calling, CarPlay and Android Auto
Optional rear camera audio input
A1 Camera Audio Input
A2 Mic Input
10 Pin Multi Camera Harness
3 additional camera inputs and triggers / VSS / Expansion Port
Camera Triggers 2 & 3 will accept a pulsing + trigger (turn signal).
D
A1 Camera 2 Input
A2 Camera 3 Input
A3 Camera 4 Input
C1 Camera 3 Trigger
C2 Camera 4 Trigger
C3 Camera 2 Trigger
C4 Vehicle Speed input
D Expansion Port (PAC Interface)
WIRING & CONNECTIONS
10
+
+
+
- Not Used
Microphone Input
Camera #1 Audio Input
Video
Video
Video
