9
A1 Brown / Black SWC Key 2
A2 Brown SWC Key 1
A3 Black SWC Ground
A4 Yellow RCA Video Input
A5 White RCA Audio Input Left
A6 Red RCA Audio Input Right
A7 Yellow RCA Camera Input
A8 Yellow RCA Video Output 1
A9 Yellow RCA Video Output 2
A10 White RCA Zone 2 Left
A11 Red RCA Zone 2 Right
A12 Red RCA Right front
A13 White RCA Left Front
A14 Red RCA Right Rear
A15 White RCA Left Rear
A16 Brown RCA Left Subwoofer
A17 Blue RCA Right Subwoofer
Analog Steering
Wheel Control Input
Audio / Video Input
Video Output
Audio Output

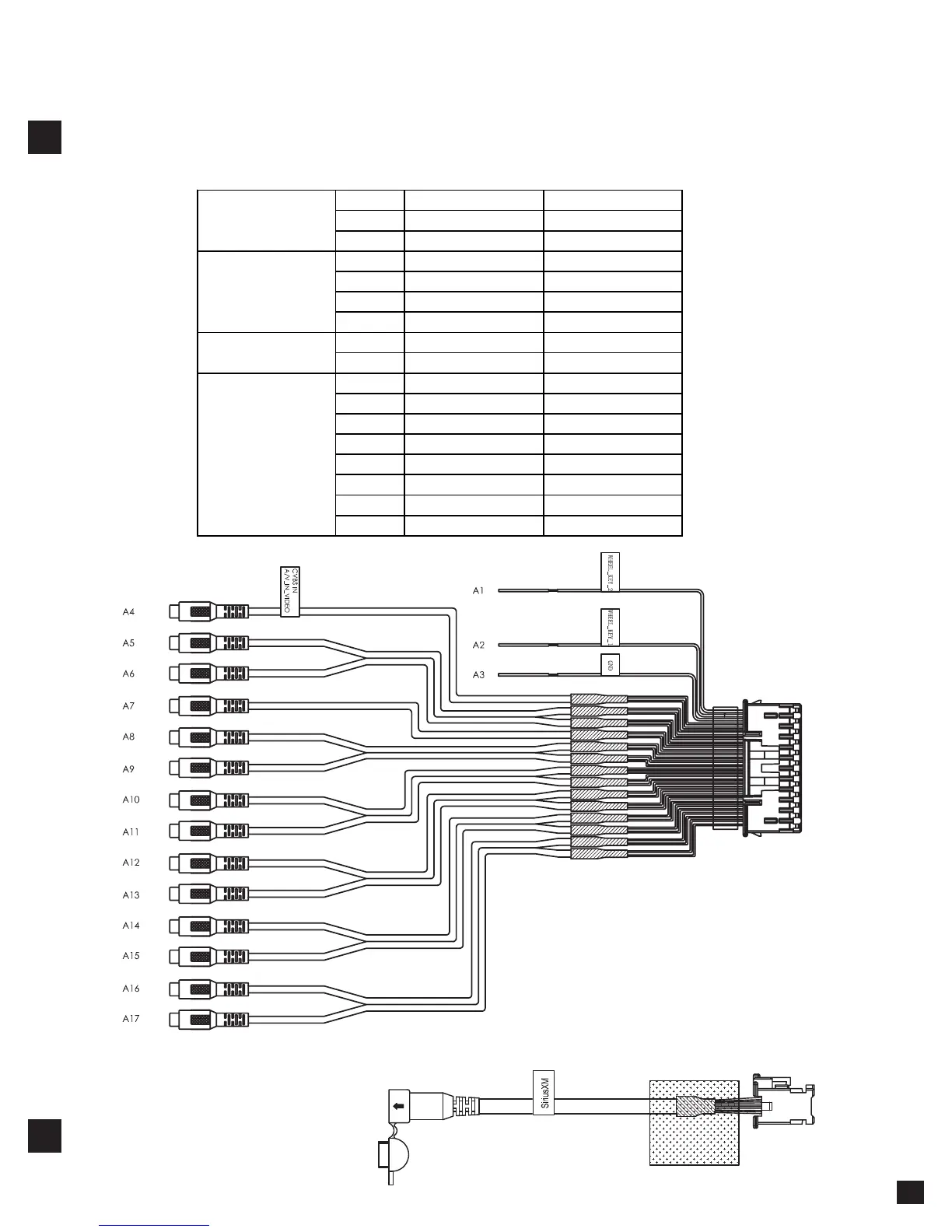

24 Pin AV / Rear Camera Harness
Audio/Video Inputs & Outputs / Rear Camera Video Input /
Analog Steering Wheel Control Inputs.
SiriusXM
®
Harness
For connecting optional SiriusXM
SXV 300 satellite radio tuner.
WIRING & CONNECTIONS
