EL4 EL5 EL6

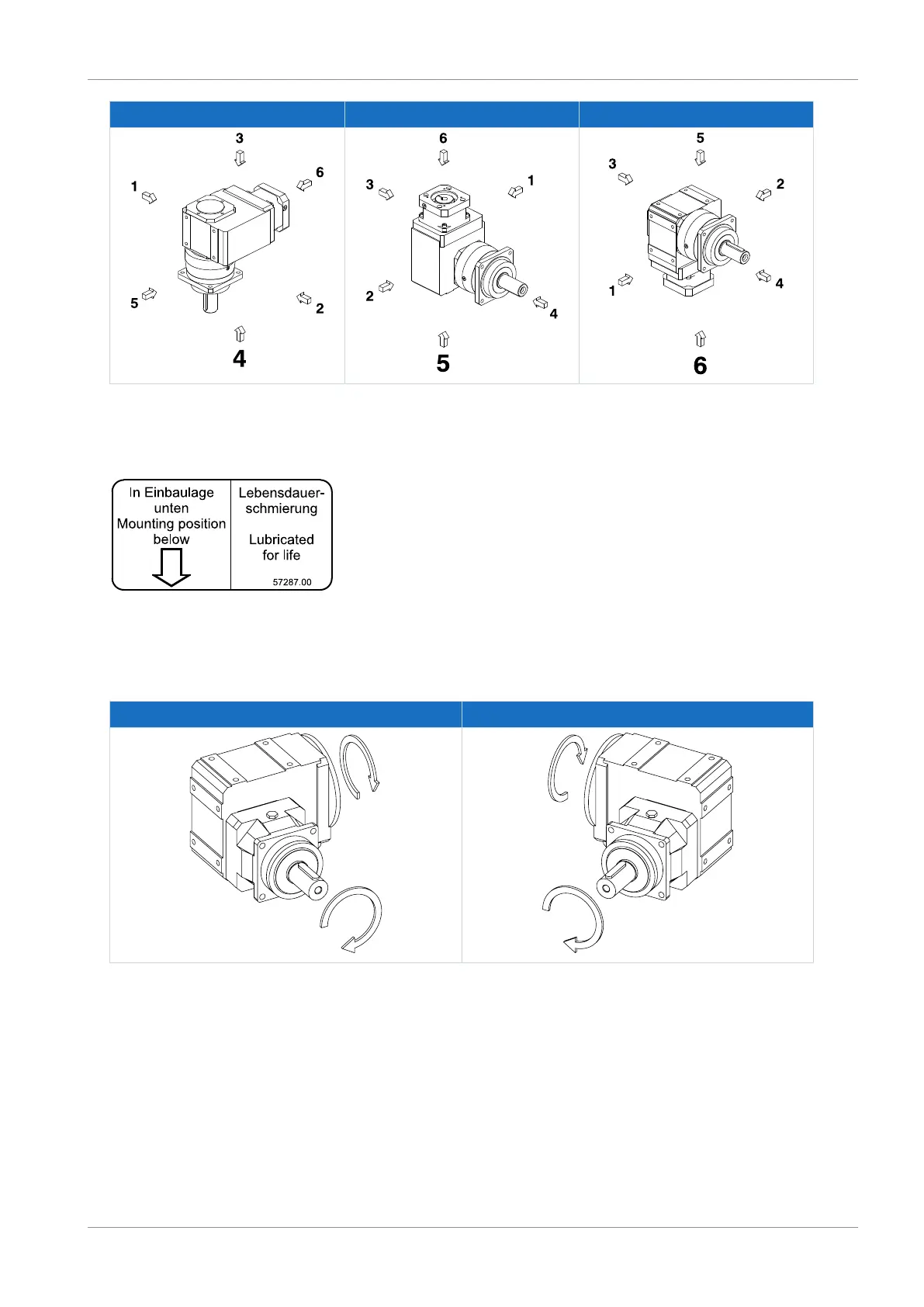

An adhesive label is applied to the gear unit that explains the designated mounting position. The arrow on the adhesive
label indicates the side with which the gear unit must be mounted facing down.
Fig.1: Adhesive label for the mounting position
3.5 Direction of rotation
Output side 4 Output side 3
The pictures show mounting position EL1.
3.6 Ambient conditions
Standard ambient conditions for transport, storage and operation of the gear unit are described in this chapter. Deviating
ambient conditions for special designs are specified in the order confirmation. Ambient conditions for motors attached to a
gear unit can be found in the technical documentation of the motor.
