3 Product description
In this chapter, you will find product details that are relevant for assembly, commissioning and servicing. Detailed technical
data on your drive can be found in the order confirmation. You will find more product information and dimensional
drawings in the corresponding catalog (Additional documentation [}12]). The respective separate technical
documentation applies to attached motors.
3.1 Basic structure

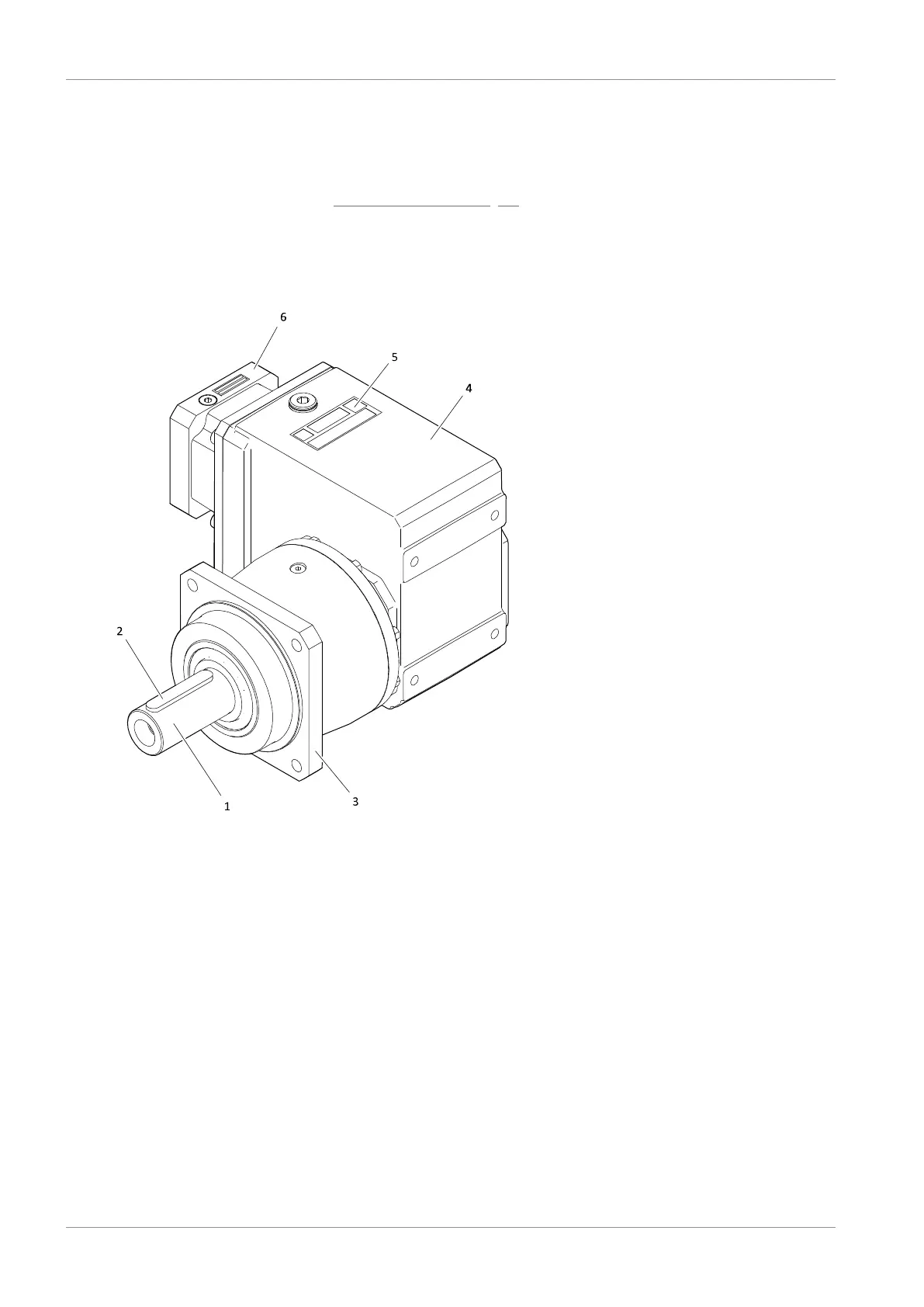

1 Solid shaft 2 Feather key (if present)
3 Output flange 4 Gear housing
5 Nameplate 6 ME motor adapter
