5 | Installation
07/2023 | ID 443360_en.00
19

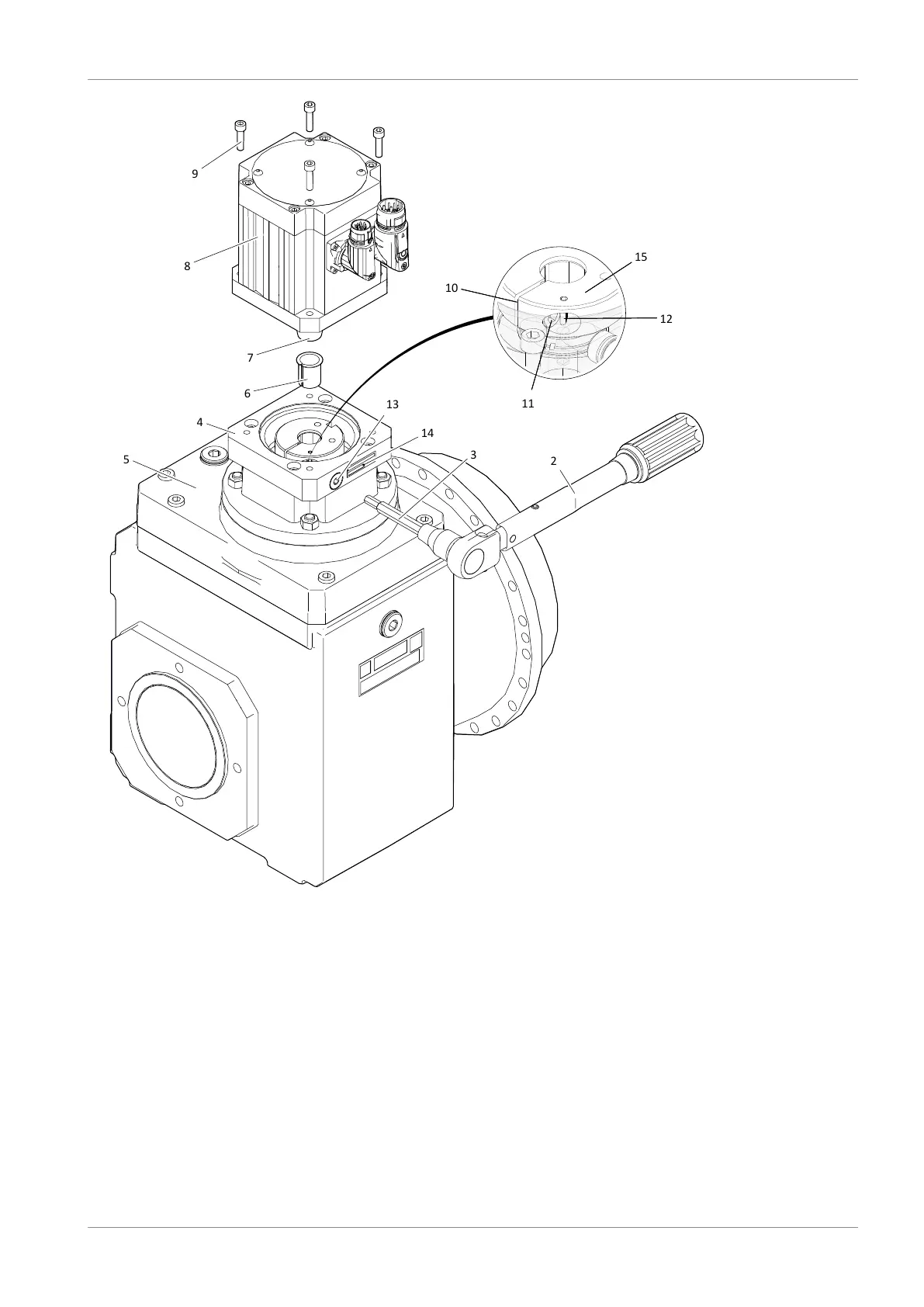

Fig.2: Mounting a motor on a right-angle planetary gear unit with flange shaft and ME motor adapter (example)
2 Torque wrench 3 Hexagon insert
4 Motor adapter 5 Gear unit
6 Adapter bushing (if present) 7 Motor shaft
8 Motor 9 Screw
10 Slot of the clamping hub 11 Locking screw
12 Grooved pin 13 Screw plug
14 Adhesive label 15 Clamping hub
