STONEX X120GO - Point Cloud Optimization; Point Cloud Orientation; Image Dedistortion Function

STONEX®X120
GO
– User Guide
37
Optimization
This function will optimize and denoise the original point cloud to reduce the thickness of the point cloud and
improve the accuracy of the point cloud.

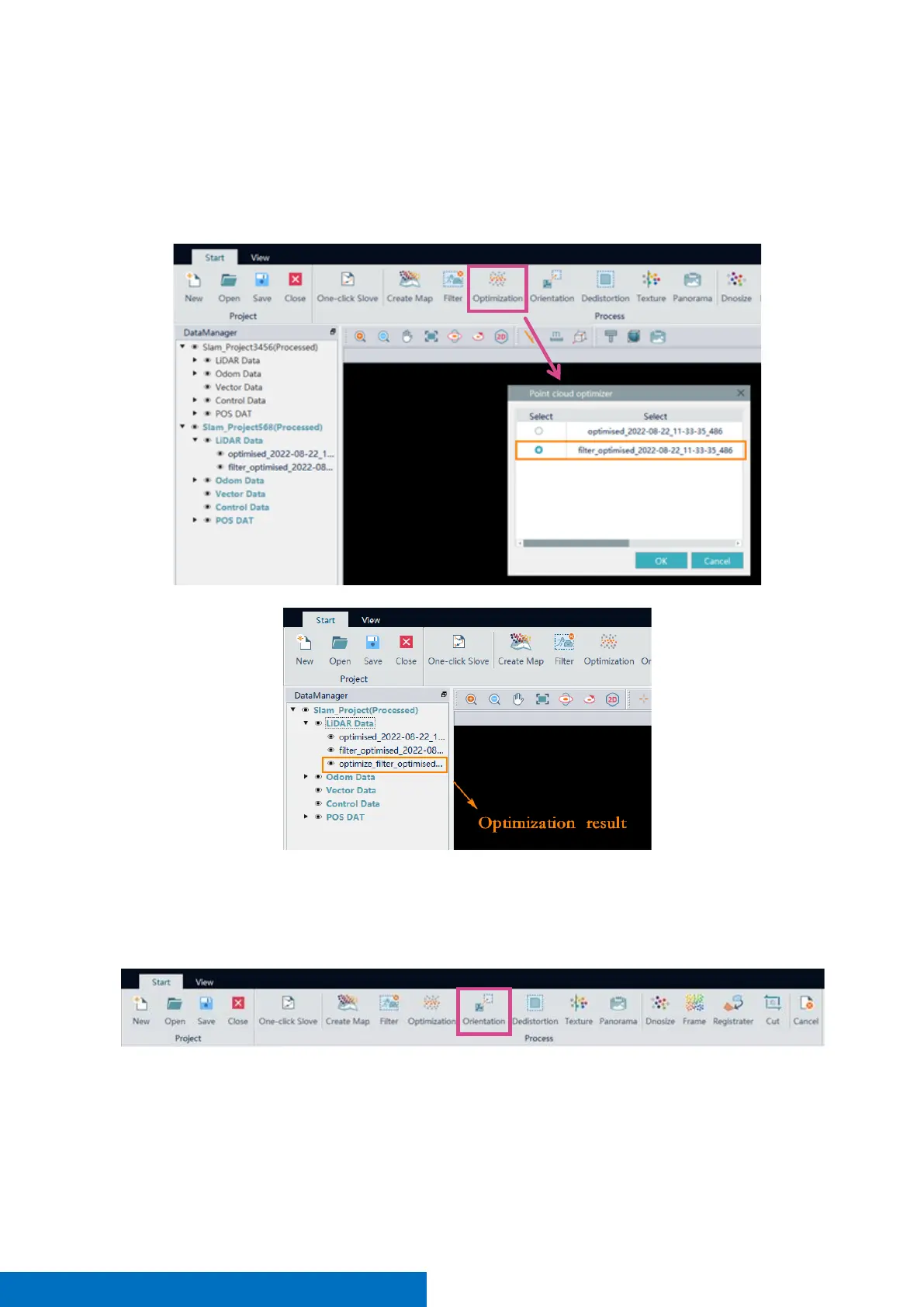

Click the Optimization tool and select the data you want to optimize. Select filtered result to optimize: point
clouds beginning with ‘optimize’ in DataManager are optimization result.
Orientation
This function transfers the point cloud to the absolute coordinate system in which the control point is located.
Coordinate transformation is performed on the point cloud when the order and number between GCP and
matching points are consistent.
Dedistortion
This function is designed to remove distortion from the image, and this step is necessary for subsequent point
cloud coloring and panoramas. A single undistorted image is stored in a folder named “dimage”.
