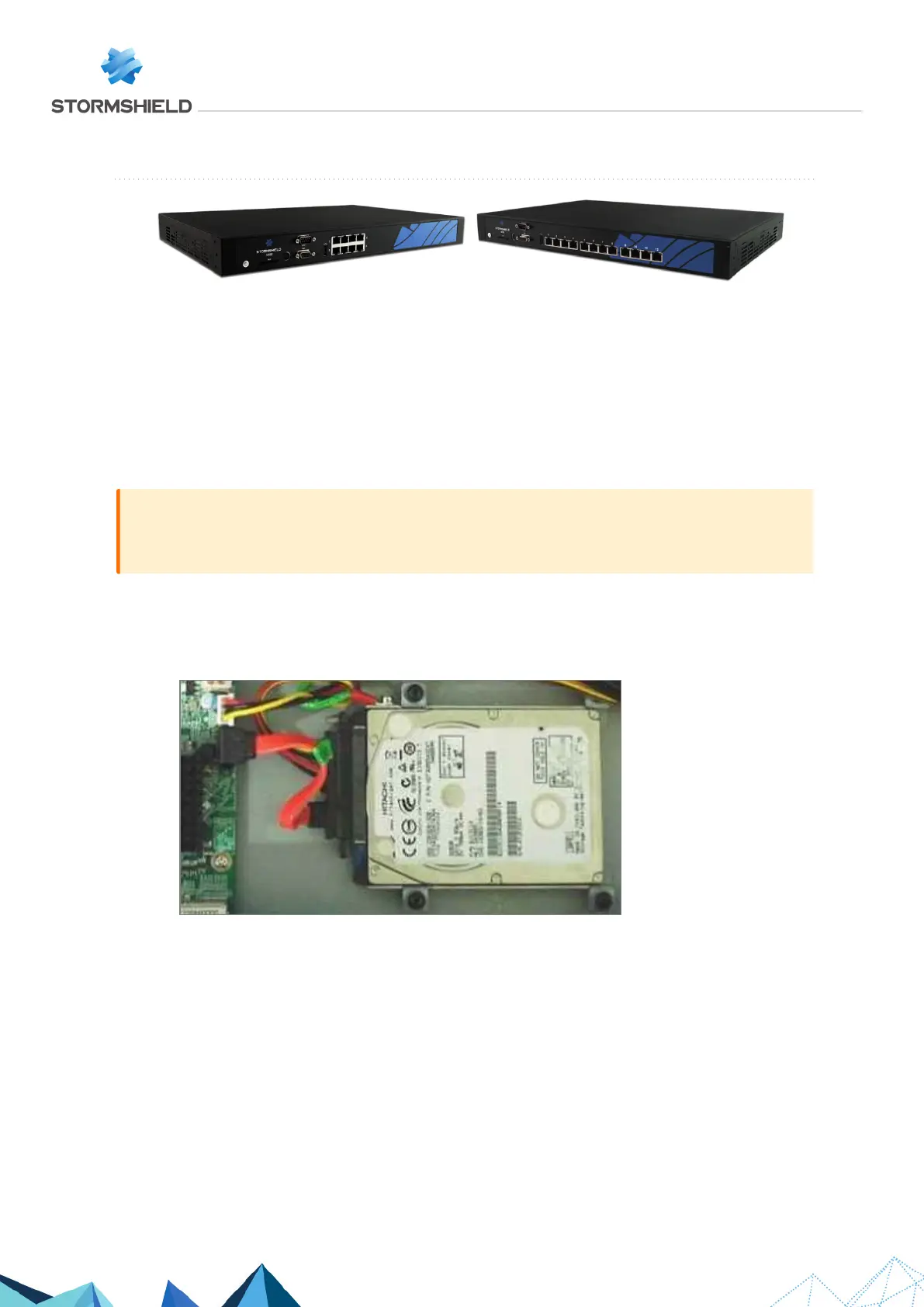

SN500 and SN700
On these products, data is stored on an internal hard disk.
Dismantling
1. Using the Phillips screwdriver, unscrew the 2 black countersunk screws located at the back
of the cover.
2. Remove the cover by sliding it backwards.
This operation will tear the warranty sticker.
IMPORTANT
Closely follow the instructions and precautions for handling the hard disk given in the vendor’s
installation guide.
3. Locate the hard disk.
4. Remove the adhesive strip from the hard disk.
5. Unplug the SATA connector.
6. Unscrew the 4 fastening screws of the hard disk with a Philips screwdriver:
7. Remove the hard disk & support setup.
8. Unscrew the 4 lateral screws of the hard disk.
9. Retrieve the hard disk.
Assembling
1. Put the support back on its 4 spacers, with the vibration absorbers in place.
2. Fasten the support with the 4 screws, by using one of them to fasten the free ring terminal
of the cable connecting the support + hard disk setup to the chassis.
3. Check that the 4 lateral screws of the hard disk remain outside the chassis.
4. Put the cover back in place and close it up using the 2 screws.
SNS - TECHNICAL NOTE
SECURE RETURN OPTION
Page 8/29 sns-en-secure_return_option_technical_note - 08/01/2022
