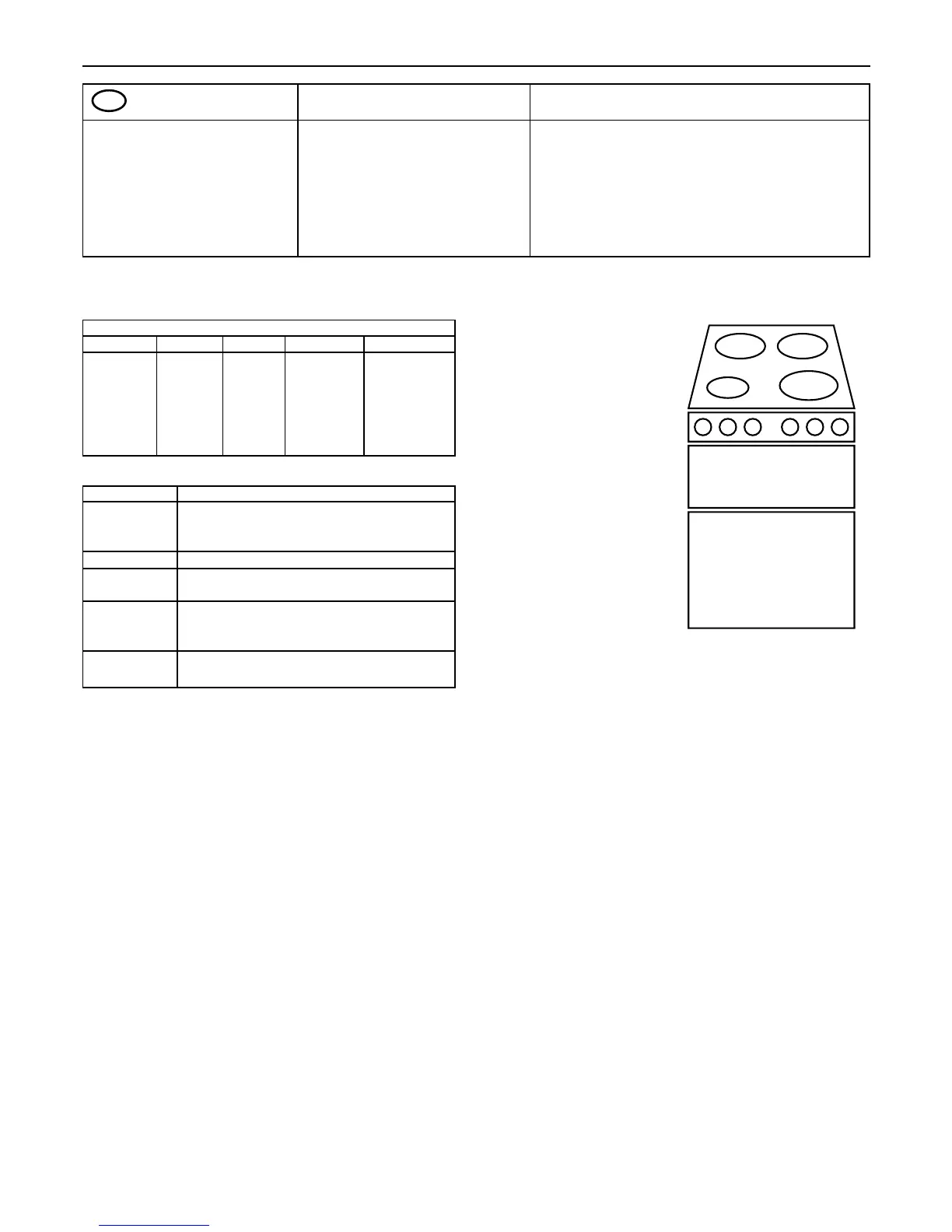

STOVES 500DIT - Maximum Heat Input

Brännare Naturgas Nominell Gasol Nominell
Insprutare Ventil effekt Qn Insprutare Ventil effekt Qn Propan Butan
Hällen E Snabb 1.1mm ø 60 2.5kW 0.78mm ø 36 2.4kW 171 g/h 176 g/h
A & F Halvsnabb (2) 0.85mm ø 46 1.4kW 0.62mm ø 33 1.5kW 107 g/h 110 g/h
B Hjälpbrännare 0.72mm ø 46 1.0kW 0.50mm ø 29 1.0kW 71 g/h 73 g/h
Ugnen C 0.95mm ø 74 1.8kW 50 amal 33 1.8kW 121 g/h 125 g/h
Grillen D 0.95mm ø 74 1.6kW 50 amal 56 1.6kW 143 g/h 145 g/h
Varmhällningsplatta - - 0.1kW - ----
Grillplatta - - 1.2kW - ----
Elektrisk värmeplatta - - 0.96kW - ----
ABC DEF
A
B
C
D
E
F
Maximum heat input (∑Qn)
Appliance LP Propane g/h Butane g/h Nat.Gas
800 DIS 9.8kW 729 742 9.7kW
500 DIS 9.8kW 729 742 9.7kW
500 DIS/T 9.8kW 729 742 9.7kW
500 DIT 9.8kW 729 742 9.7kW
500 DIS - T1 8.0kW 601 611 8.1kW
500 DIT - T1 8.0kW 601 611 8.1kW
Gas Pressure
II2H3B/P G20 20 mbars (8” wg)
G30 28-30 mbars (12” wg)
G31 28-30 mbars (12” wg)
I2H G20 20 mbars (8” wg)
I3+ G30 28-30 mbars (11.2” wg)
G31 37 mbars (14.8” wg)
II2H3+ G20 20 mbars (8” wg)
G30 28-30 mbars (11.2” - 12” wg)
G31 37 mbars (14.8” wg)
I3B/P G30 28-30 mbars
G31 28-30 mbars
SE
Technical Data
