5

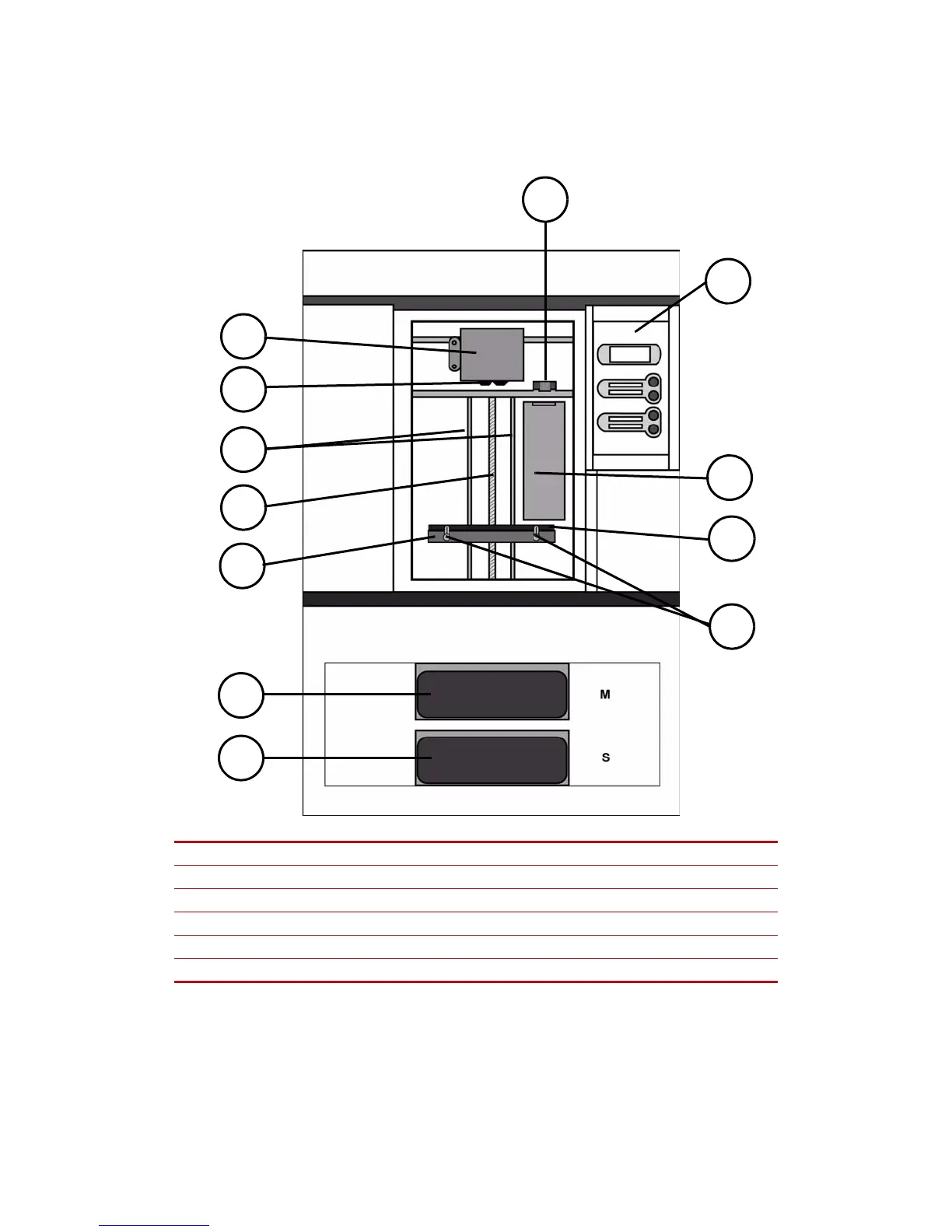

Figure 1 Front view
1 Extrusion head 7 Support material cartridge
2 Extrusion tips 8 Tip wipe assembly
3 Guide rods 9 Display panel
4Lead screw 10Purge container
5 Z stage platen 11 Modeling base
6 Model material cartidge 12 Modeling base retainers (2)
1
2
3
4
6
7
9
8
10
11
12
5
