Streamax MDVRs - Monitor Installation

ISTM-ALL MDVR-2012_Q2_Ver 1.0
15/27
5) General Connection Instruction
（
1
）

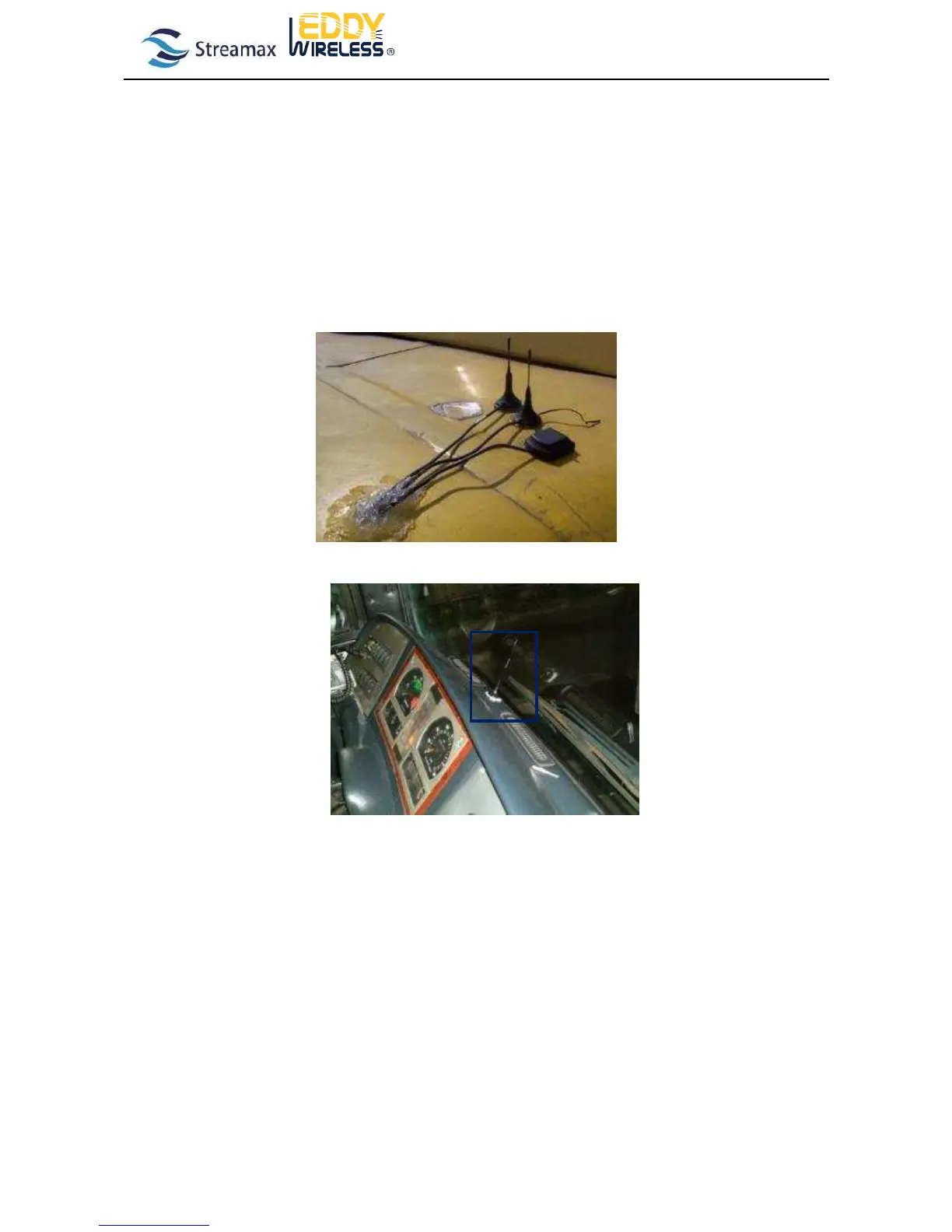

Choose right place for antenna for GPS/WIFI/3G installation. Generally the antenna are recommended to be
installed in front part of vehicle roof (please drill one hole on the vehicle roof and installed the antenna
outdoor) and fix them. Make sure put them in open air without any blocking.
（
2
）
Use a waterproof rubber stopper or glass cement or some other reliable ways to seal the hole for stretching
the antenna out to ensure the tightness of roof.
（
3
）
An extra cap is needed for external antenna. Exposing parts should be waterproof and fire treatment.
（4） Place antenna in tri-angle shape with 120 angle, 10cm distance between center point.
（5） Fix antenna base with neutral silicone for fixing and waterproof.
（6） On the cable of the antenna, there is one SMA connector, please connect it with the module firmly.
If drilling hole is not allowed by bus company or bus operator, then please install the antenna just inside of the vehicle
6) Installation Tips:
（
1
）
The WIFI antenna must be fixed by the glass cerement and the WIFI antenna bottom plane must be
parallel with the vehicle roof. Standing or side installation are not allowed.
（
2
）
GPS antenna should be installed in open air on top of vehicle, The bottom plane must be parallel with the
vehicle roof and fixed by glass cerement. Stand or side installation are not allowed. The black side must
be upwards.
（
3
）
EVDO (CDMA2000)/HSDPA (WCDMA) antenna, stickled on glass or plastic shell but not metal as this will
affect the network signal.
2.6 Monitor Installation
Monitor Installation depends on different requirement. It is recommended to install where is easy to by viewed by driver
