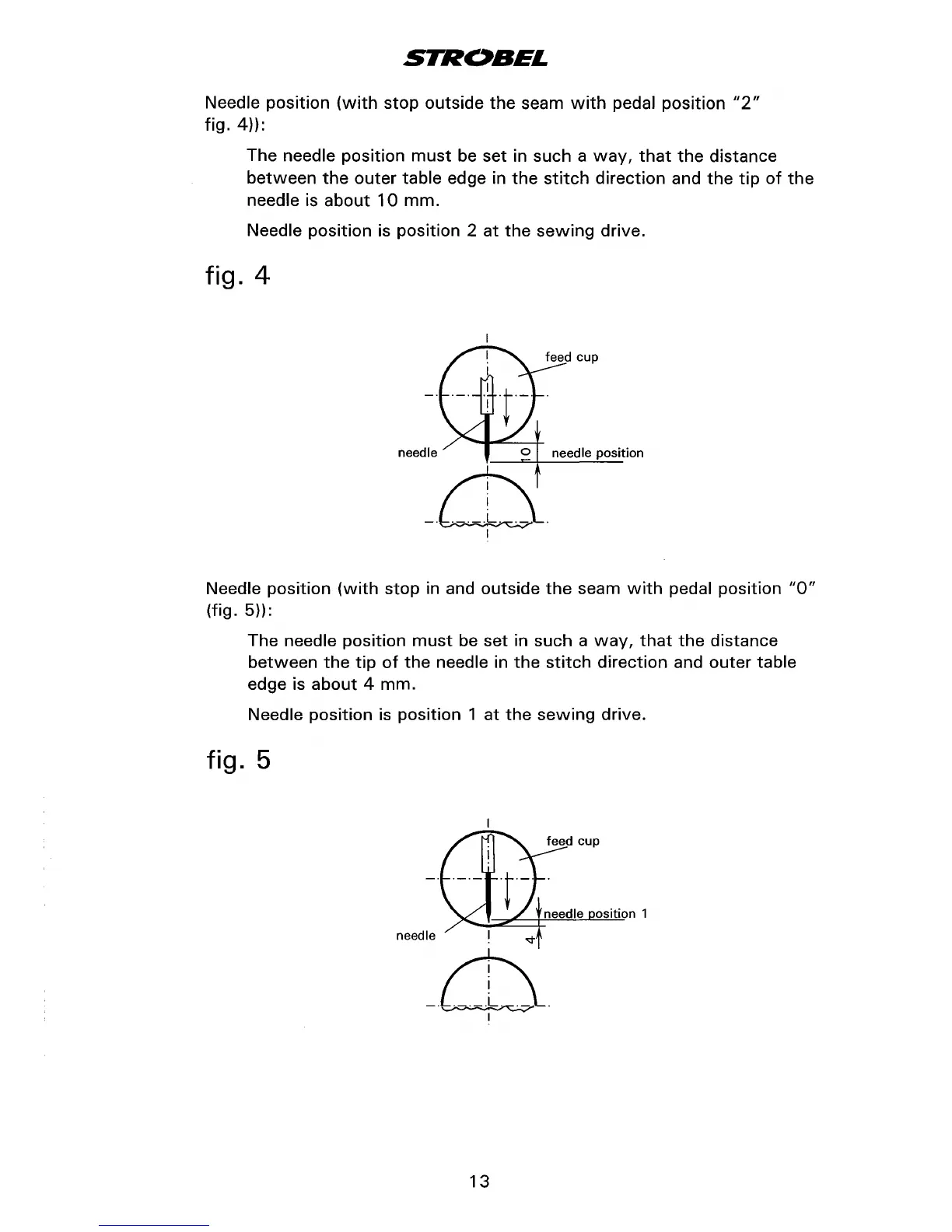

Needle position {with stop outside the seam with pedal position
11
2"
fig. 4)):
The needle position
must be set in such a way, that the distance
between the outer table edge in the stitch direction and the tip of the
needle is about 10 mm.
Needle position is position 2 at the sewing drive.
fig. 4
needle o needle position
_Q
I
Needle position {with stop in and outside the seam with pedal position "0"
{fig. 5)):
The needle
position must be set in such a way, that the distance
between the tip of the needle in the stitch direction and outer table
edge is
about 4 mm.
Needle position is position 1 at the sewing drive.
fig. 5
osition 1
needle
13
