STROBEL
The second needle position is necessary for inserting and removing the
material.
The machine is operated as follows (see also fig. 1 0)
1 . right treadle
2. left treadle
3. right knee lever
4. left knee lever
motor
gathering device
lifting
thread trimmer

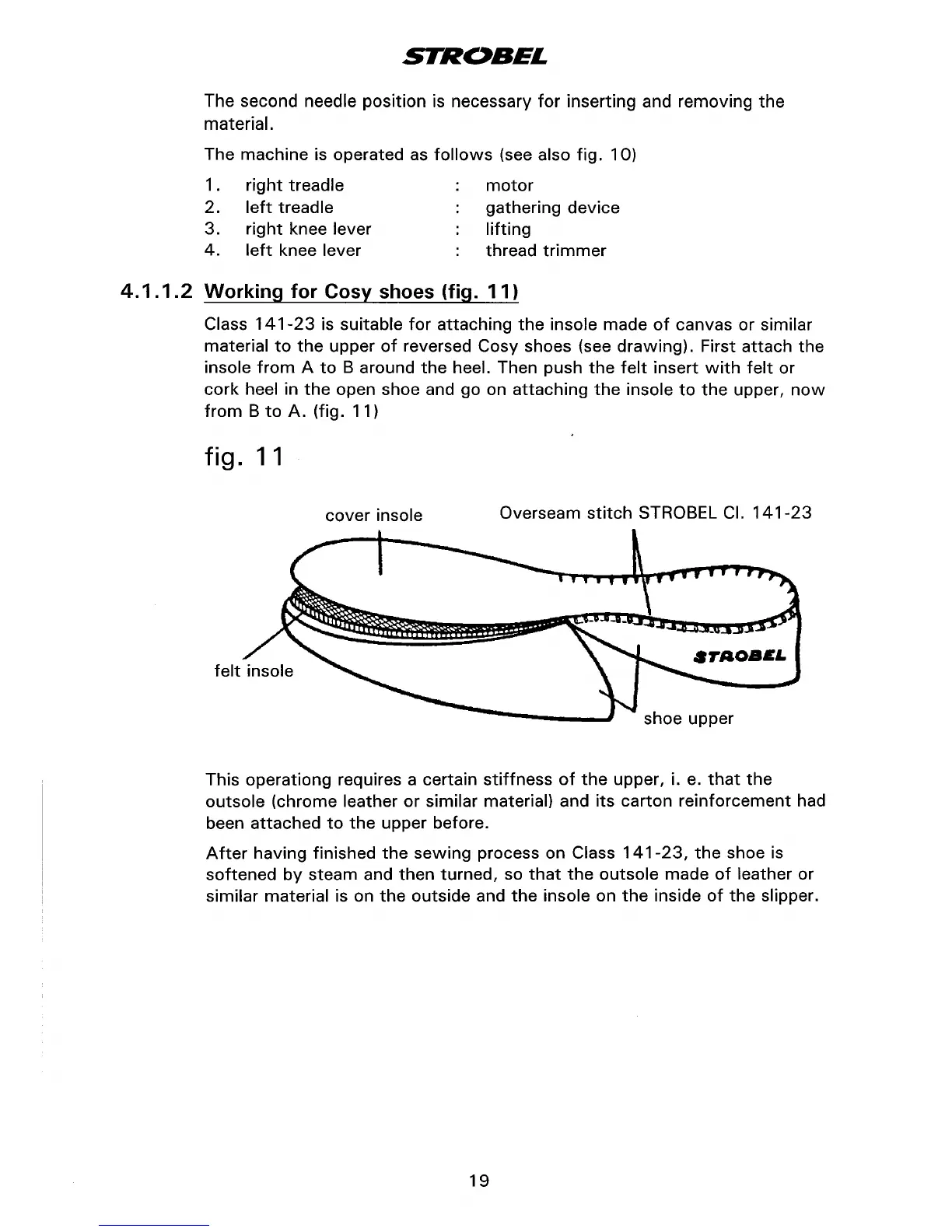

4.1.1.2 Working for Cosy shoes (fig. 11)
Class 141-23 is suitable for attaching the insole made of canvas or similar
material to the upper of reversed Cosy shoes (see drawing). First attach the
insole from A to B around the heel. Then push the felt insert with felt or
cork heel in the open shoe and go on attaching the insole to the upper, now
from B to A. (fig. 11)
fig. 11
cover insole
Overseam stitch STROBEL Cl. 141-23
shoe upper
This operationg requires a certain
stiffness of the upper, i. e. that the
outsole (chrome leather or similar material) and its carton reinforcement had
been
attached to the upper before.
After having finished the sewing process on Class 141-23, the shoe is
softened by steam and then turned, so that the outsole made of leather or
similar
material is on the outside and the insole on the inside of the slipper.
19
