STROBEL
3.5 First lubrication
Remove outer and inner machine cover and pour in original STROBEL oil
supplied with the machine from above.
To
take off the inner cover first pull out the small oil pipe in the oil rising
pipe
of the pump. (fig. 6)
The
soecial STROBEL oil (viscositiy 46 c St) supplied with the machine
should always be used.
The required
oil quantity is 0,5 liter. It is recommended to change the oil
after approx. six month operation. (See Point 5 Machine maintenance)

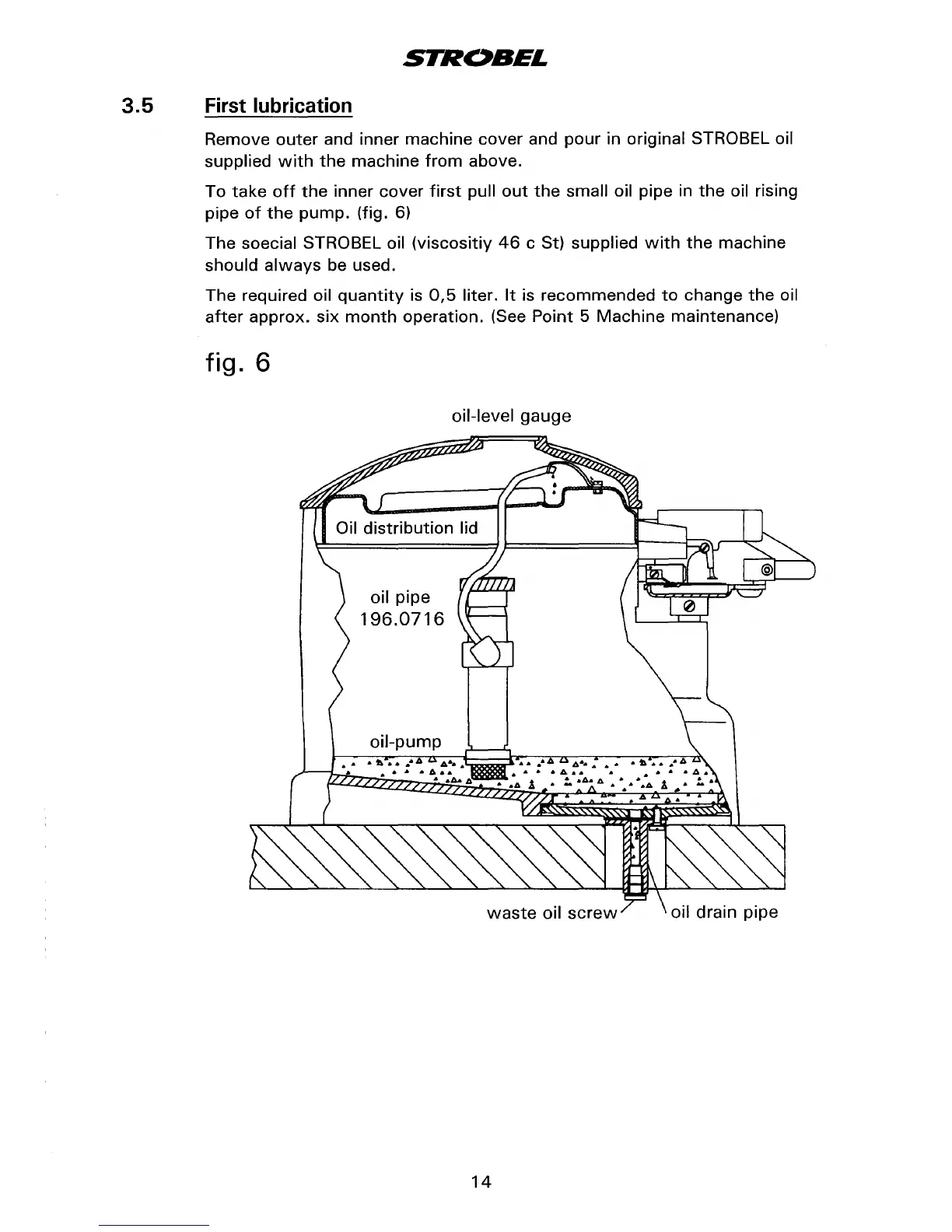

fig. 6
oil pipe
196.0716
oil-level gauge
waste oil screw
14
