STROBEL
The oiling points are automatically lubricated, therefore no maintenance
required.
When remounting the inner cover make sure that the lower part of the oil
pipe is pushed
into the oil rising pipe of the pump. (fig. 6). Otherwise the
automatic lubrication does not work and the machine will be heavily
damaged through blocking of the shafts in the bearings, etc.
Therefore follow the instructions carefully and, after filling the machine with
new oil, operate the machine for a short while and control the working of
the automatic lubrication through the oil inspection glass in the outer cover.

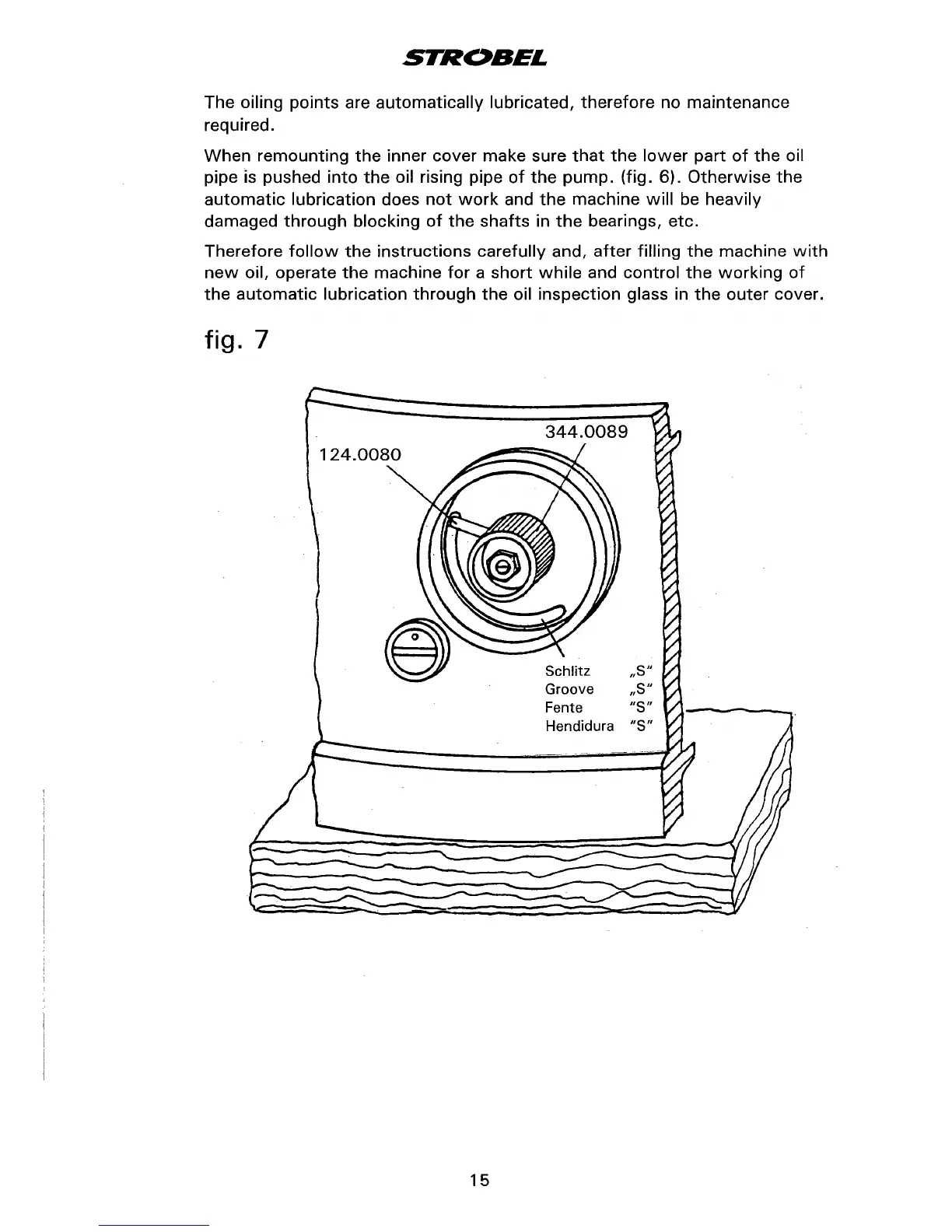

fig. 7
15
344.0089
Schlitz
Groove
Fente
Hendidura
