STROBEL

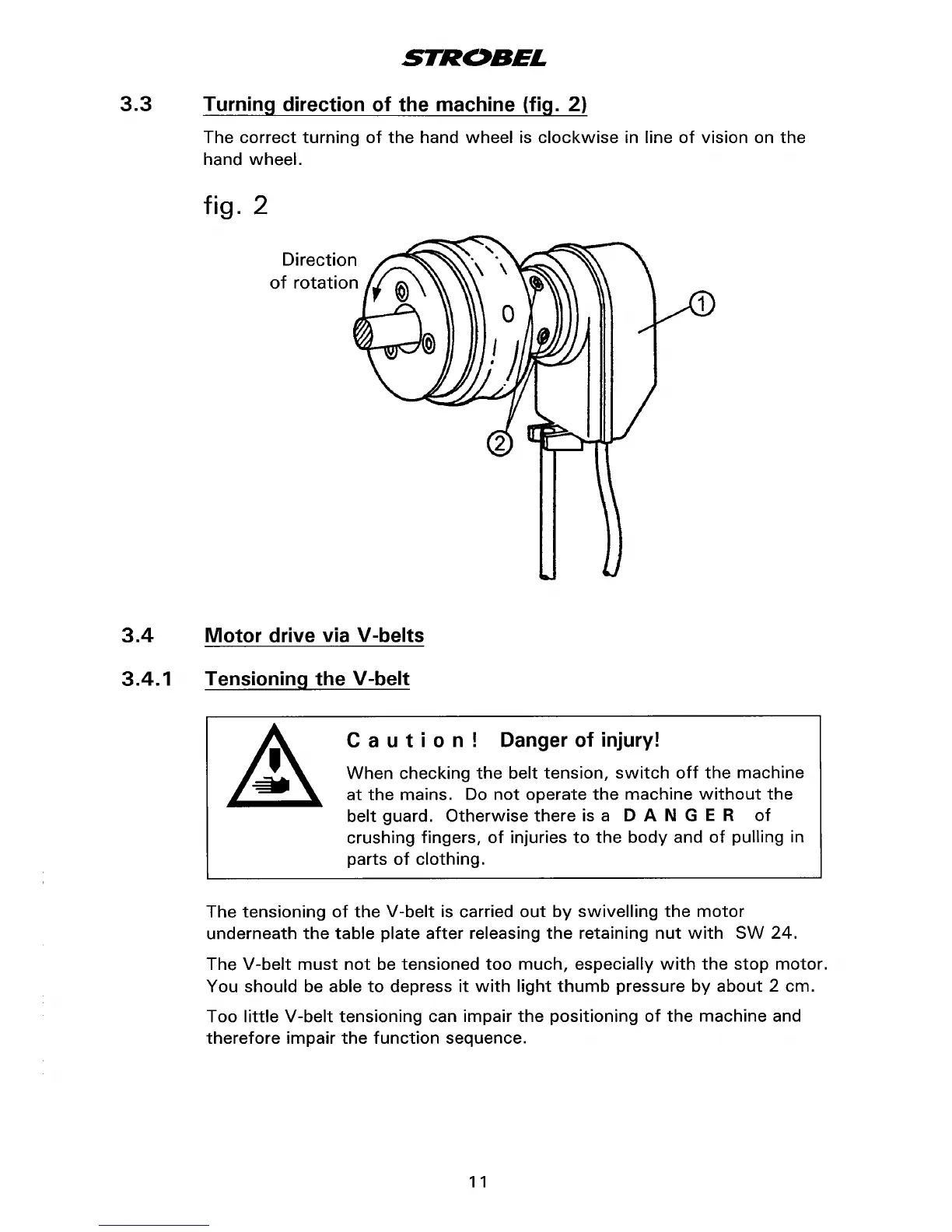

3.3 Turning direction of the machine (fig. 2)
3.4
3.4.1
The correct turning of the hand wheel is clockwise in line of vision on the
hand wheel.
fig. 2
Direction
of rotation
Motor drive via V-belts
Tensioning the V -belt
C a u t i o n ! Danger of injury!
When checking the belt tension, switch off the machine
at the mains. Do not operate the machine without the
belt guard. Otherwise there is a D A N G E R of
crushing fingers, of injuries to the body and of pulling in
parts
of clothing.
The tensioning of the V-belt is carried out by swivelling the motor
underneath the table plate after releasing the retaining nut with SW 24.
The V-belt must not be tensioned too much, especially with the stop motor.
You should be able to depress it with light thumb pressure by about 2 em.
Too little V-belt tensioning can impair the positioning of the machine and
therefore impair the function sequence.
1 1
