6.2 Oil drain tube
For easier machine maintenance there is an oil draining tube (2) going through
a table plate boring at the lower cover, i.e. waste oil can be drained without the
necessity to dismantle the machine head.

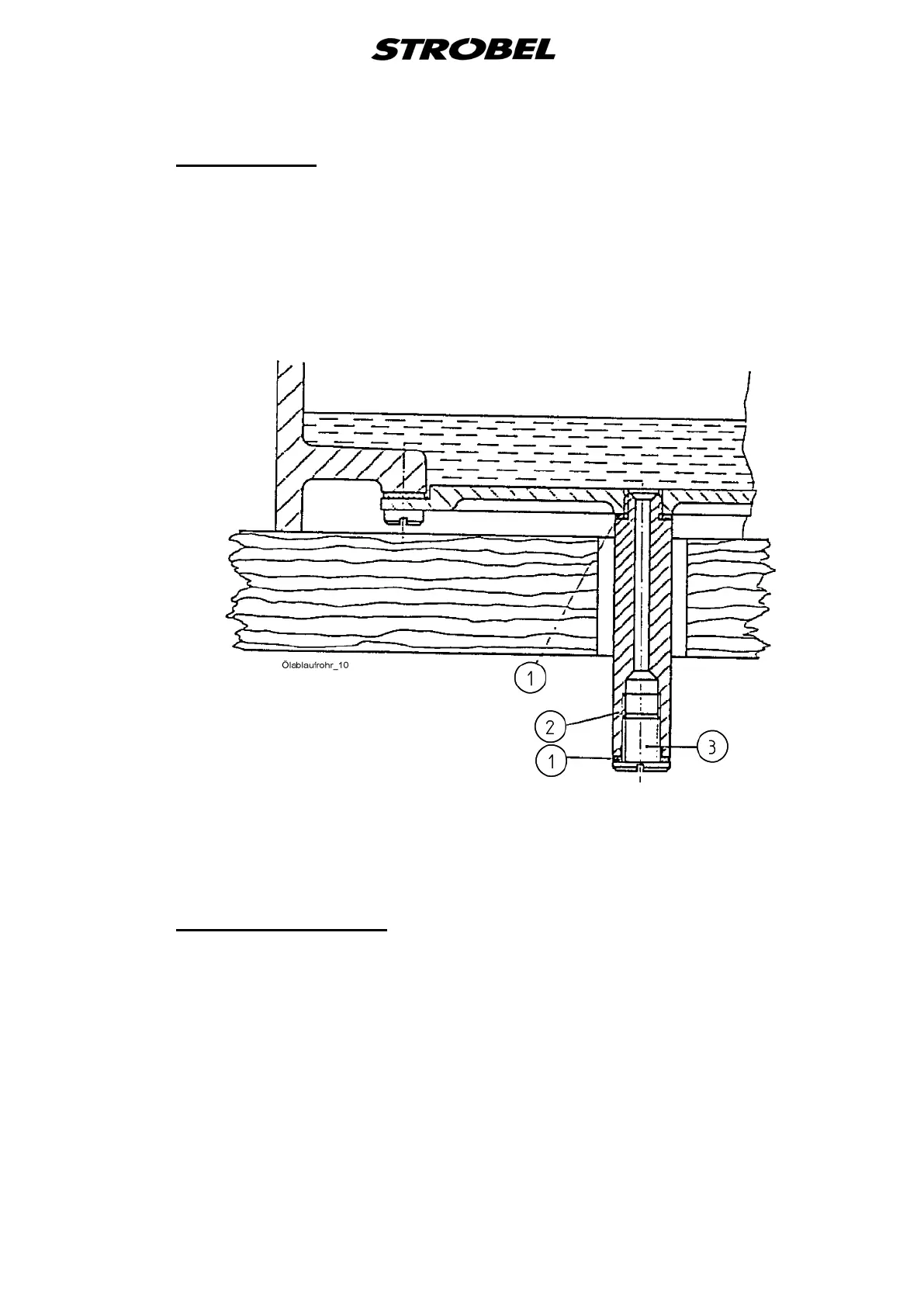

Oil drain tube (2) is sealed by means of an oil retainer ring (1) and a screw (3)
(Fig. 16).
Fig. 16
To drain the waste oil put a container under the oil draining tube and remove
the screw (3). Remount screw (3) tightly after draining the oil.
Before putting the machine into service make sure that all protection devices
(cover, belt guard, etc.) are fully effective and that all screws are tight.
7 Variable sewing tool
The following chart shows all sewing tolls available.
