3.6 Lubrication
First lubrication (see also point “6.1 Checking the oil level”).
Remove outer and inner machine cover and pour original STROBEL oil
supplied with the machine, from above.
To take off the inner cover first pull out the oil pipe which is plunging in the oil
rising pipe of the pump (Fig. 8).

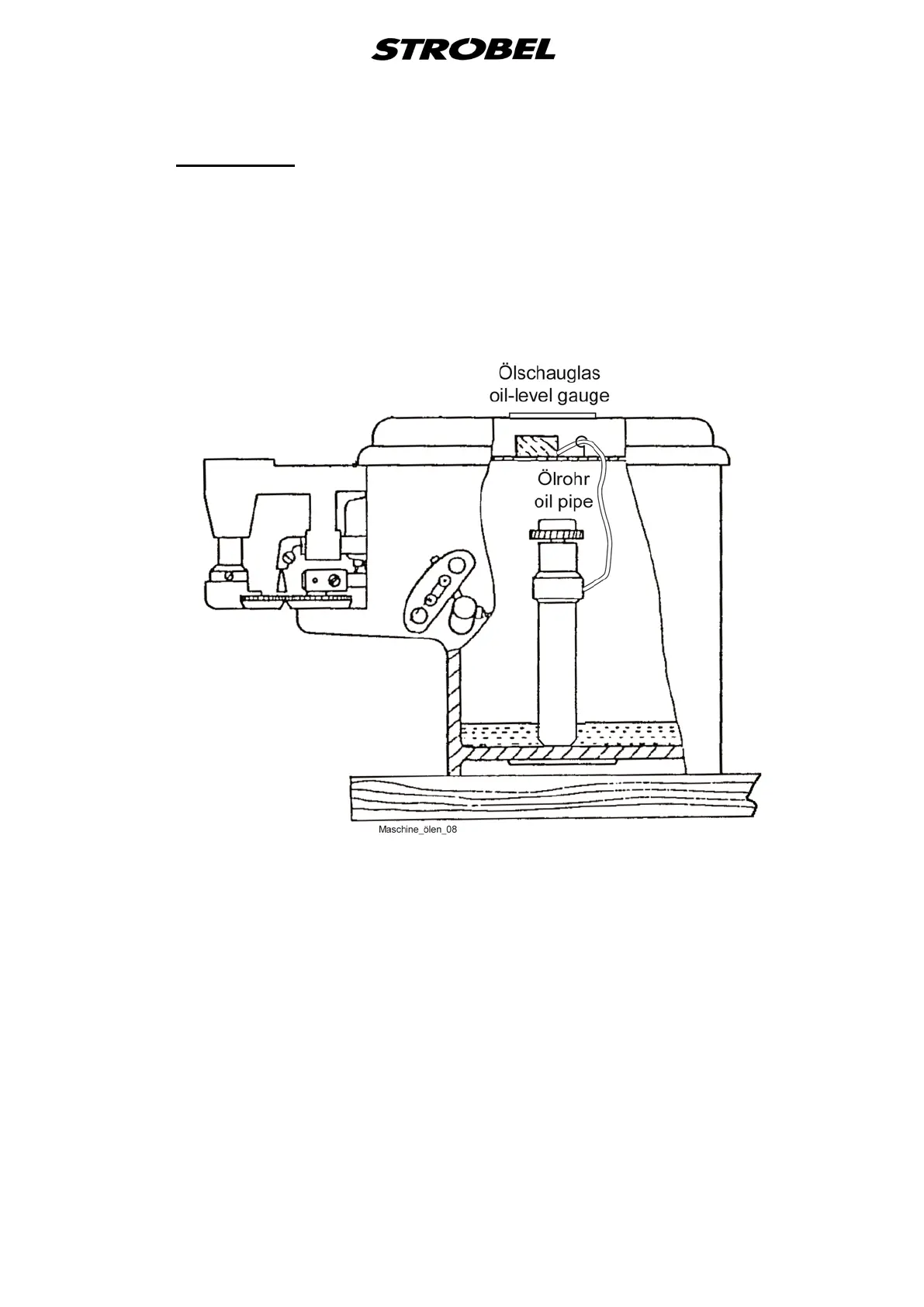

Fig. 8
The special STROBEL oil (viscosity 46 c St) supplied with the machine should
always be used.
The oiling points are lubricated automatically, thus no maintenance is required
(see also point “6.1 Checking the oil level/oil quantity”).
When remounting the inner cover make sure that the lower part of the main oil
pipe is pushed into the oil rising pipe of the oil pump (Fig. 8).
Otherwise the automatic lubrication does not work and the machine will
be heavily damaged through blocking of the shafts in the bearings, etc.
Therefore the instructions should be followed carefully and, after filling
the machine with new oil, the machine should be operated for a short
while and the correct working of the automatic lubrication should be
controlled through the oil inspection glass in the outer cover.
