Needle position (when stop in the stitch (Fig. 7)):
This needle position is important when stopping in the stitch (pedal
position 0), when swiveling in the separating plate of the hold-back device
and for the threading.
The needle position needs to be set so that the tip of the needle
concludes at a distance of 10 mm after the transport table edge in the
direction of the piercing. The tip is located thereby in front of the table.
The needle position is position 1 at the sewing drive.

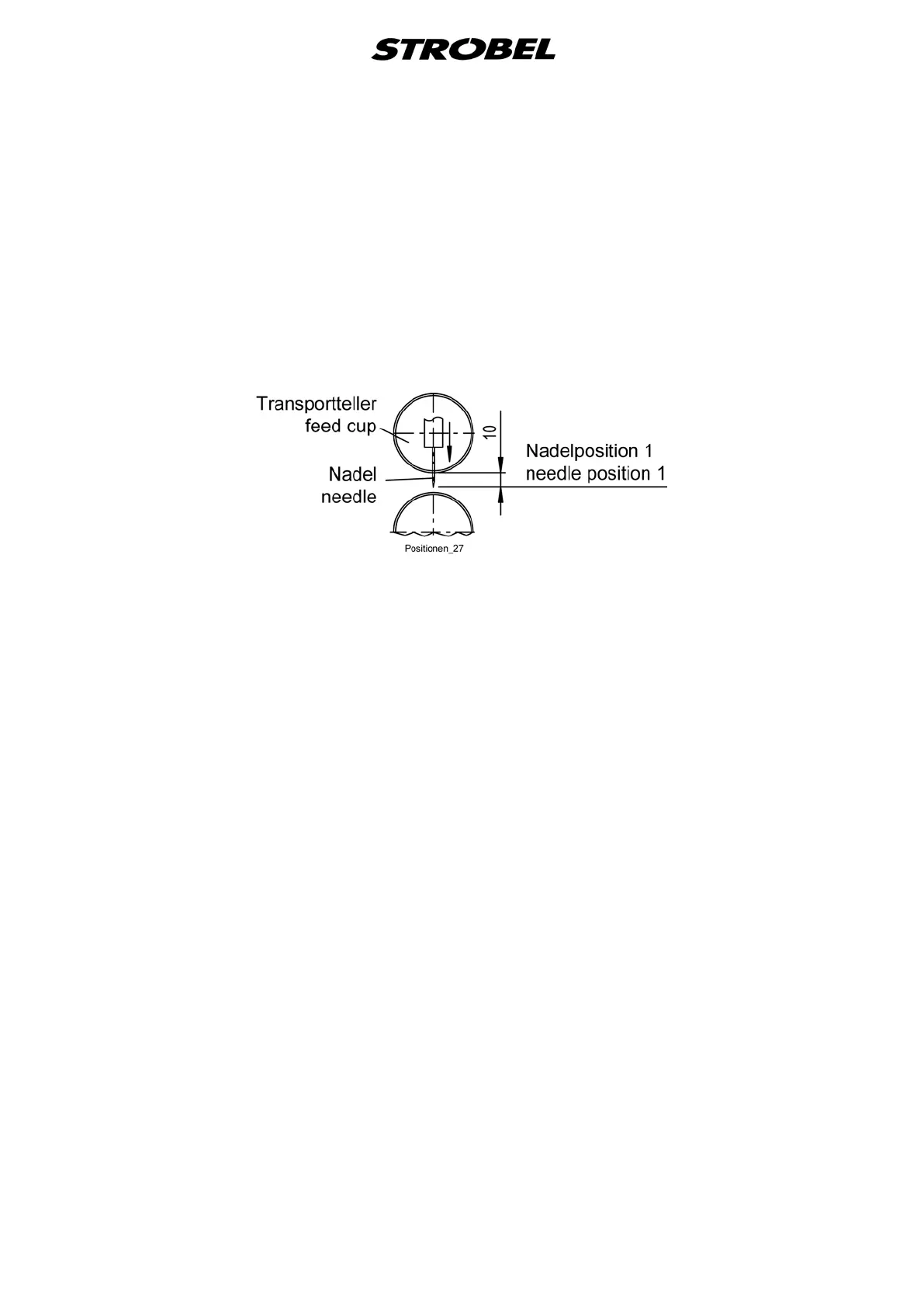

Fig. 7
