3.0 CONNECTION GUIDE

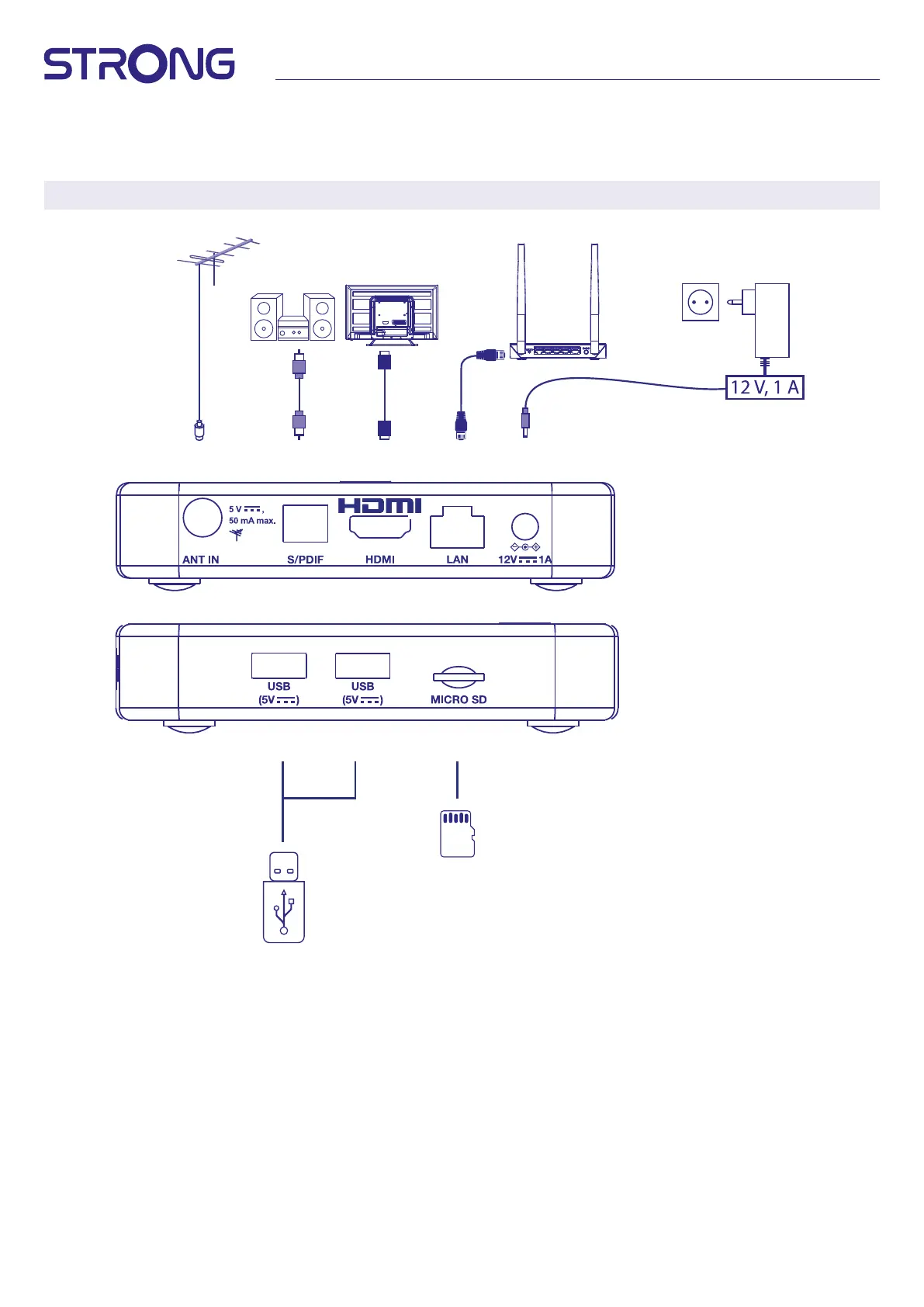

Refer to the diagram below for connecting your Android TV Box to power, network and other devices.
NOTE: Before getting started, please turn o all devices to be connected.)
Fig. 6
1 2
6 6 7
3 4 5
1. ANT IN To connect to in or outdoor antenna for reception of broadcast signals.
2. S/PDIF Coaxial To connect to a digital home cinema set or digital audio amplier
3. HDMI To connect your receiver with your TV screen using an HDMI 2.1 cable.
4. ETHERNET To connect to your router using an Ethernet / LAN cable (RJ-45)
5. Power entree To connect to the included power adaptor 12V / 1Amp
6. USB For connection of USB device for Multimedia use
7. Micro SD card Here you insert the Micro SD Card
