Service
Resonator replacement
Tools required:
• Zipper pull tool or equivalent
• Diagonal pliers
Procedure:
1. See Foot box cover access on page 1-40.
2. Using diagonal pliers, cut the cable ties (BG) from the inlet and outlet hoses of the resonator and discard the cable
ties (Figure 1-31 on page 1-59).
Note: During installation, before cutting the end off of the cable tie, use the diagonal pliers to pry the slack out of the
cable tie (one to two clicks).

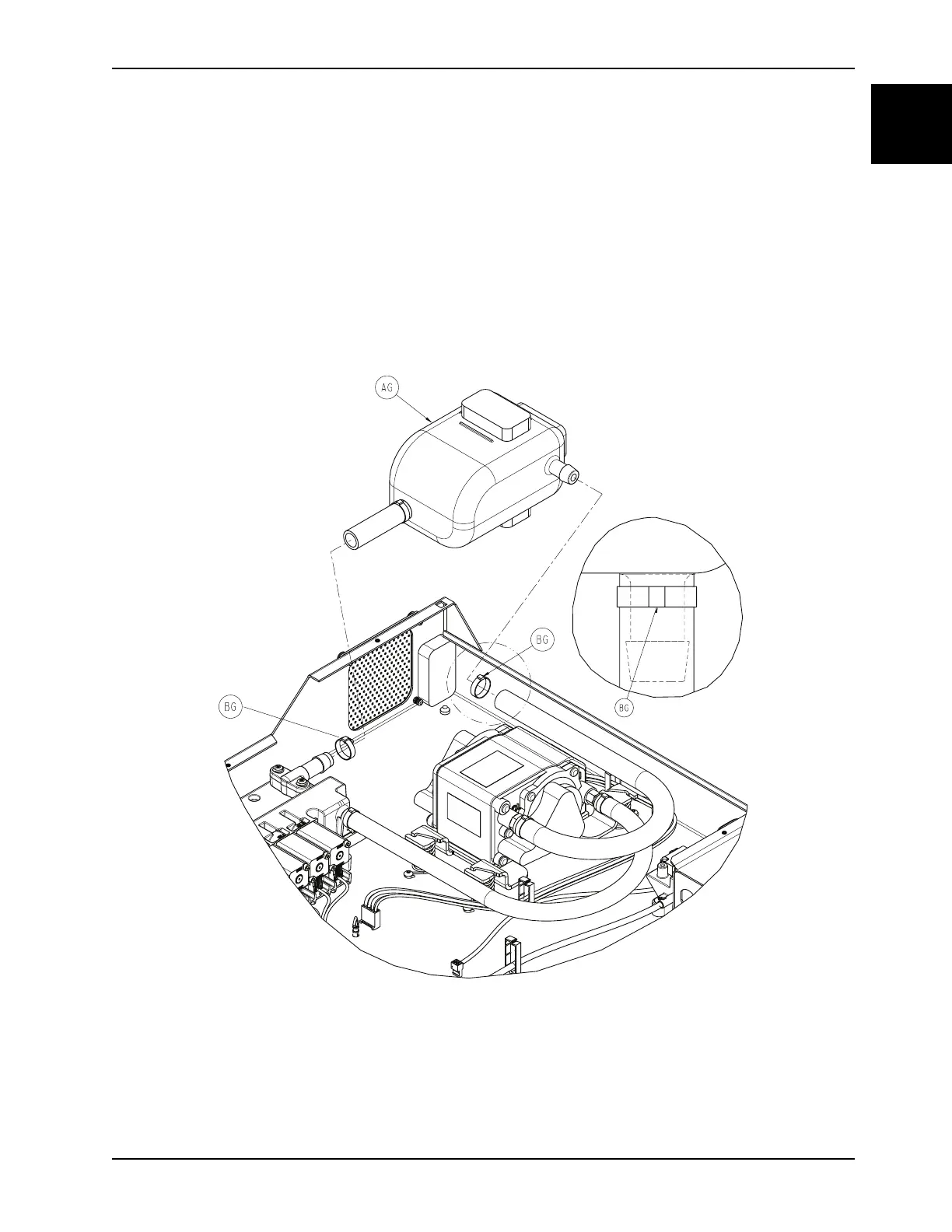

Figure 1-31: Resonator
3. Pull to disconnect each of the hoses from the resonator (AG) and the manifold (Figure 1-31 on page 1-59).
4. Remove and discard the resonator.
Note: During reinstall, make sure that the compressor supply hose is not kinked or bent.
5. Reverse steps to reinstall.
