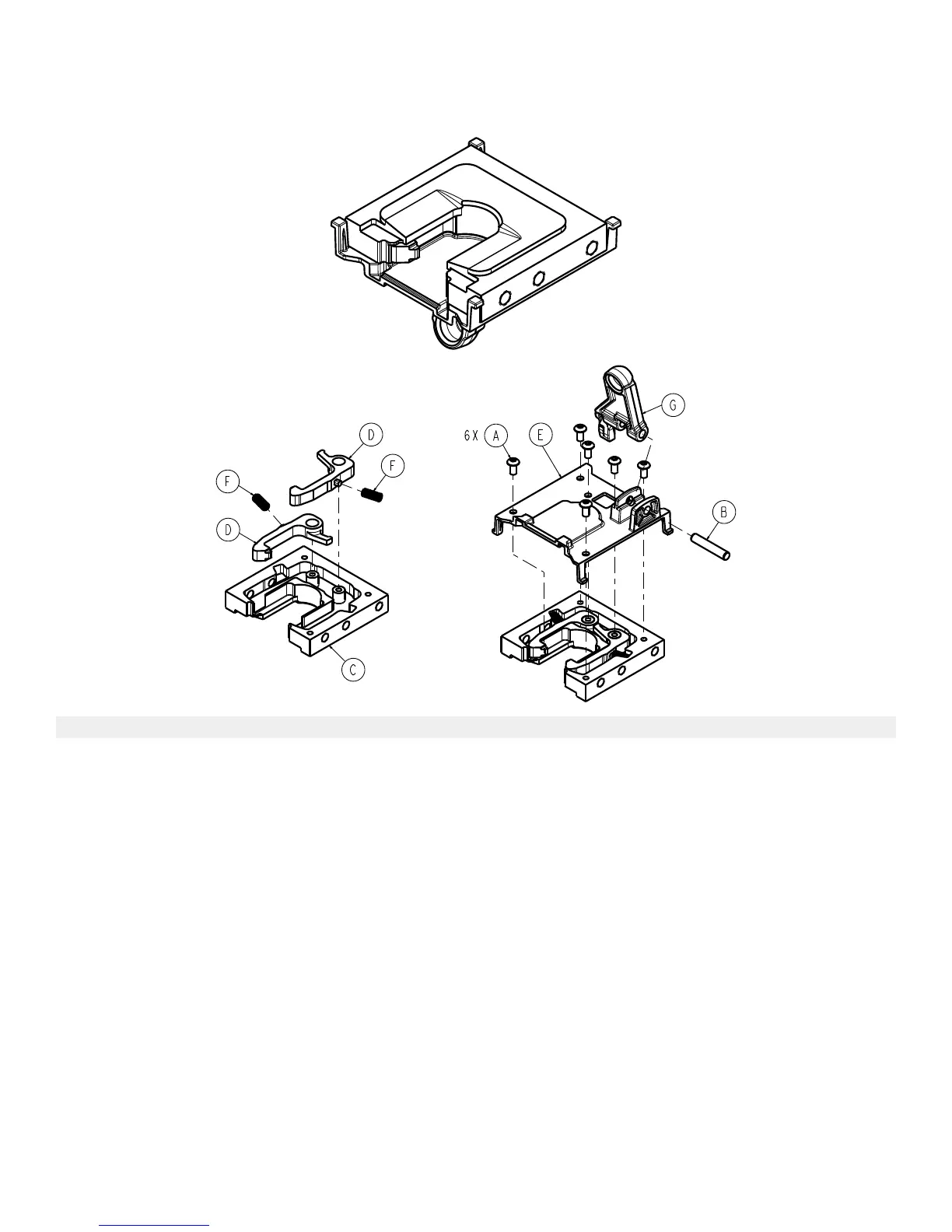

FFoooott eenndd iinntteerrffaaccee aasssseemmbbllyy
6392-001-022 Rev A (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0004-442-000 Button head cap screw 6
B 0026-556-000 Dowel pin 1
C 6392-001-202 Interface, foot end 1
D 6392-001-250 Lock pawl, foot end 2
E 6392-001-251 Pivot bracket, foot end interface 1
F 6392-001-252 Pawl spring 2
G 6392-001-257 Release latch link arm 1
6392-009-002 Rev E.4 29 EN
