2. Pull the restraint buckle through the loop, toward the head end of the cot.
3. Pull the buckle tight.
4. Connect the patient right buckle to the patient left buckle.
1 2 3 4

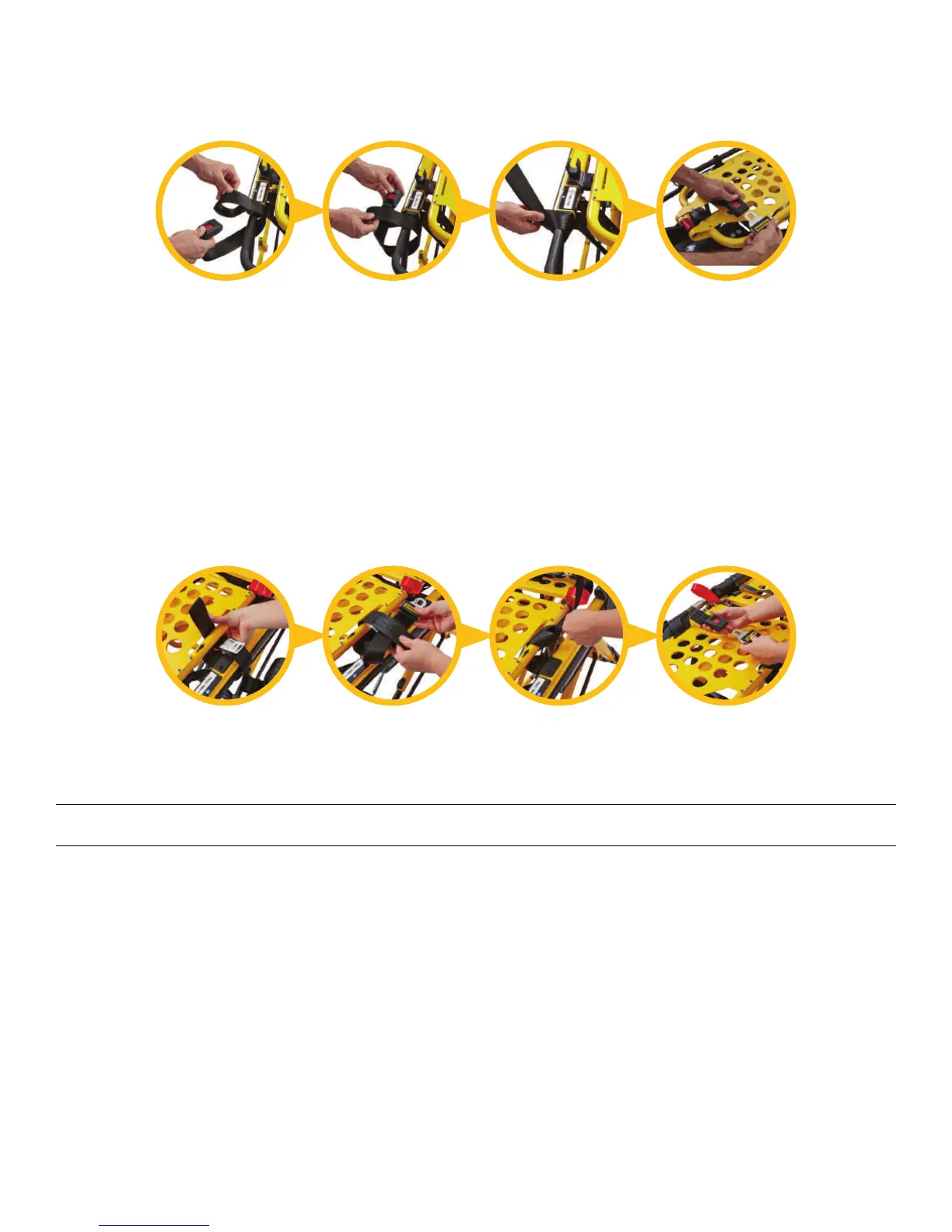

FFiigguurree 2222 –– AAnnkkllee rreessttrraaiinnttss
IInnssttaalllliinngg tthhee XX--rreessttrraaiinntt//RRUUGGGGEEDD--XX aannkkllee rreessttrraaiinnttss
For Model 6506 Power-PRO XT cots, Model 6086 Performance-PRO XT cots, and Model 6550 Power-PRO TL cots built or
upgraded after July 3, 2015 with the gatch option or any trend only.
To install the X-restraint/RRUUGGGGEEDD-X ankle restraints:
1. Wrap the restraint around the cot litter.
2. Pull the restraint buckle through the loop, toward the head end of the cot.
3. Pull the buckle tight.
4. Connect the patient right buckle to the patient left buckle.
1 2 3 4
FFiigguurree 2233 –– AAnnkkllee rreessttrraaiinnttss
SSeeccuurriinngg tthhee ppaattiieenntt wwiitthh tthhee PPeeddii--MMaattee®® iinnffaanntt rreessttrraaiinntt ssyysstteemm
WWAARRNNIINNGG -- Always locate the buckle away from obstructions or accessories on the cot to avoid the risk of accidental
release of PPeeddii--MMaattee® infant restraint system and injury to the infant.
To secure the patient with the PPeeddii--MMaattee® infant restraint system:
1. Remove any restraints from the cot.
2. Raise the cot backrest to the full upright position.
3. Position the PPeeddii--MMaattee® pad flat on the cot backrest with the black backrest straps facing out.
4. Wrap the straps around the cot backrest and insert the ends of the straps through the brackets.
5. Fasten the buckle.
6. Pull on the end of the adjustable backrest strap to tighten.
7. Insert the mainframe straps between the product frame and the mattress.
8. Insert the buckle behind the litter cross brace and bring it up in front of the litter cross brace.
9. Fasten the buckle around the litter cross brace. Leave slack in the strap for final adjustment.
