HHaannggiinngg eeqquuiippmmeenntt ffrroomm tthhee eeqquuiippmmeenntt hhooookk
Use the equipment hook to hang additional accessories or equipment, such as defibrillators and monitors.
CCAAUUTTIIOONN
• Do not load the equipment hook above the safe working load of 35 lb (15.8 kg).
• Always remove all accessories or equipment from the equipment hook when in the vehicle.

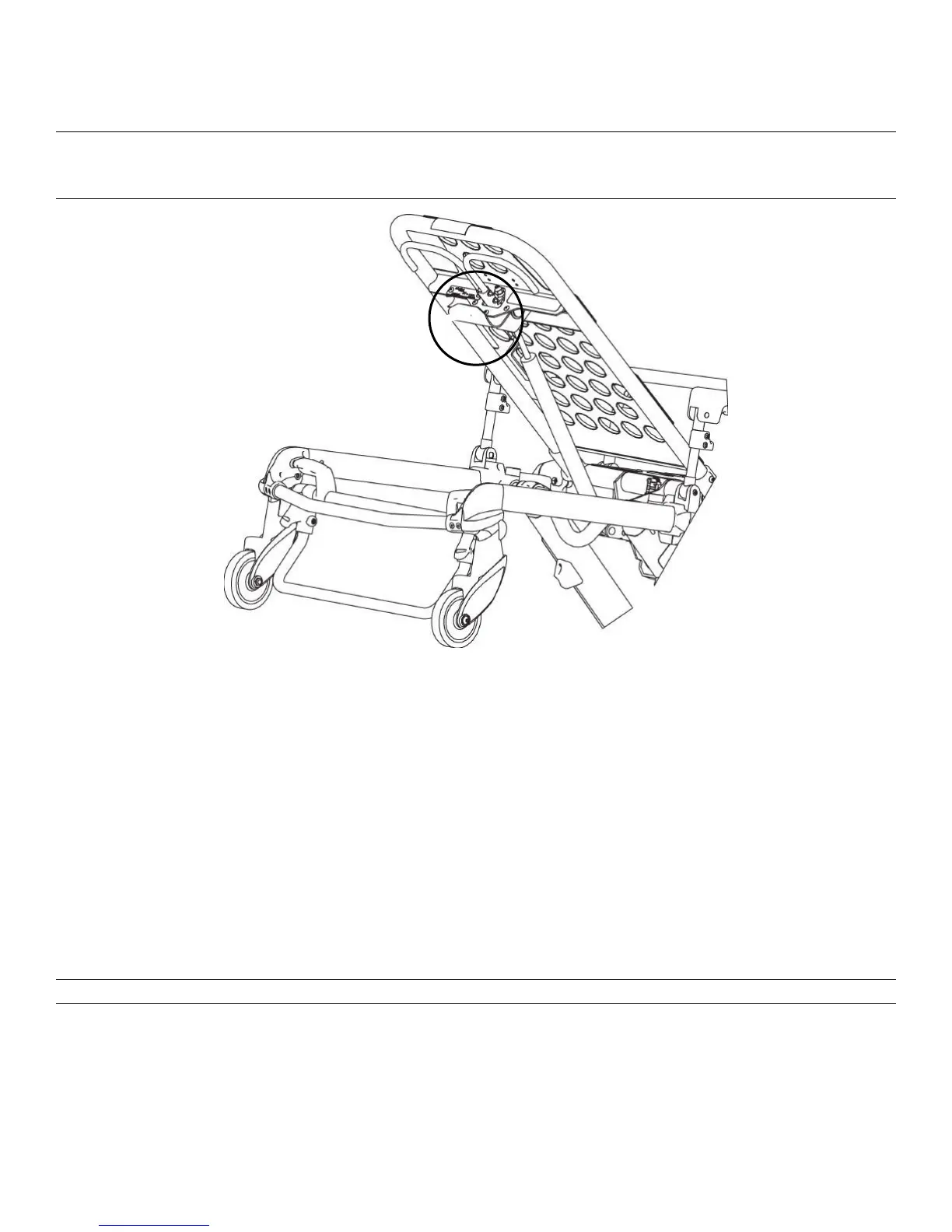

FFiigguurree 3300 –– EEqquuiippmmeenntt hhooookk
IInnssttaalllliinngg tthhee hheeaadd eexxtteennssiioonn wwiitthh ppiillllooww
You can install the head extension assembly on the backrest to provide head end support.
To attach the pillow to the head extension, place the support into the flap on the bottom of the pillow. Secure the pillow to
the VVeellccrroo® on the bottom of the support.
NNoottee
• The head extension with pillow (6100-044-000) is not compatible with the optional equipment hook (6500-147-000) or
optional fowler oxygen bottle holder (6500-241-000).
• The head extension pillow is a Type BF applied part.
PPoossiittiioonniinngg tthhee ttwwoo--ssttaaggee IIVV ppoollee
CCAAUUTTIIOONN -- Do not load the IV pole above the safe working load of 25 lb (11.3 kg).
NNoottee -- The dual two-stage IV poles (6500-312-000) are not compatible with either the patient right (6500-310-000) or the
patient left (6500-311-000) two-stage IV pole options.
To position the IV pole (Figure 31):
1. Lift and pivot the IV pole from the storage position and push down until the IV pole locks into the receptacle (A).
EN 38 6086-209-001 Rev F.2
